Sungrow SG3.0RT User Manual

3-phase pv grid-connected inverter
Hide thumbs Also See for SG3.0RT:
Table of Contents

Advertisement

Quick Links

Download this manual

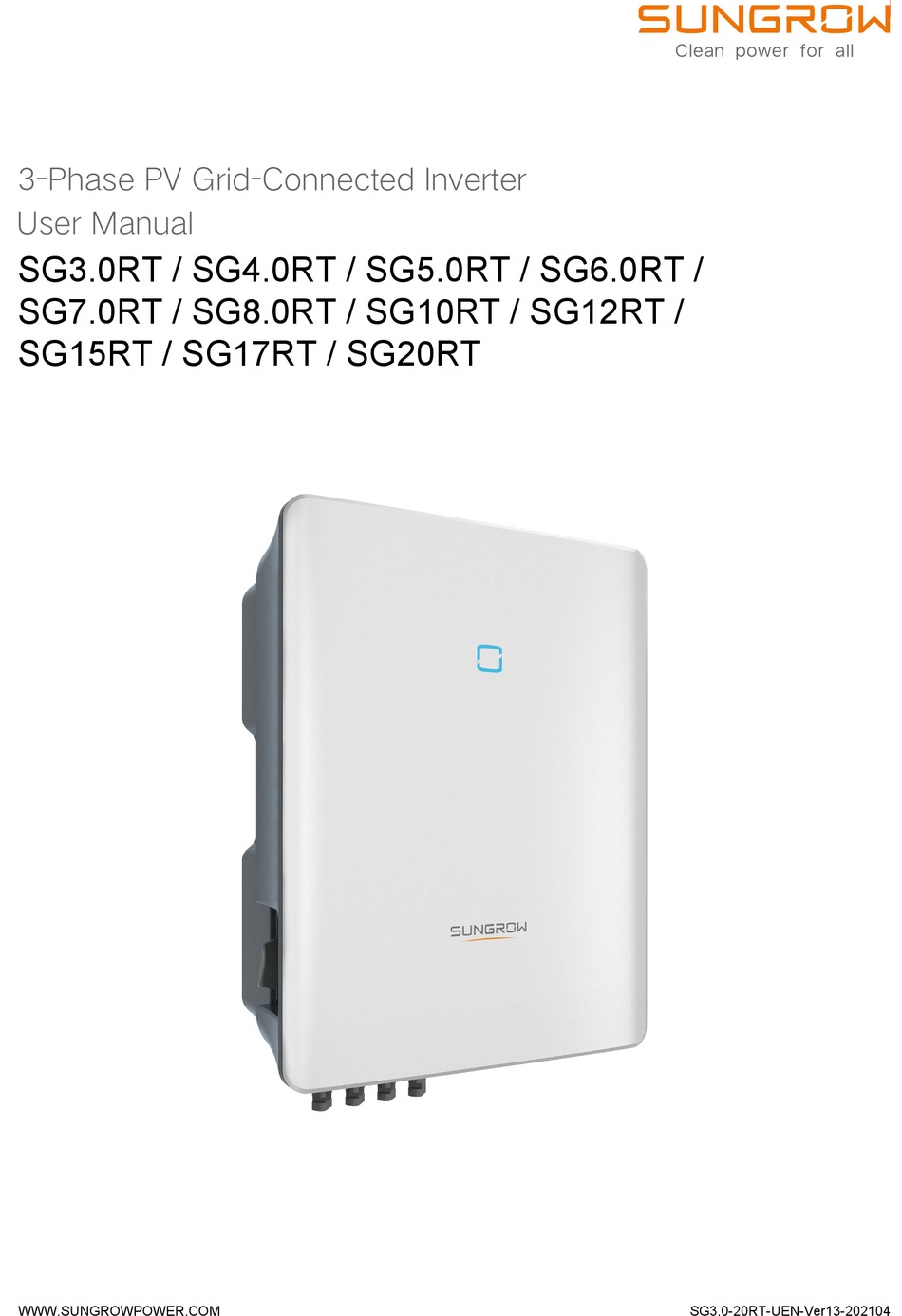

4.Qibtf!QW!Hsje.Dpoofdufe!Jowfsufs
Vtfs!Nbovbm
SG3.0RT / SG4.0RT / SG5.0RT / SG6.0RT /
SG7.0RT / SG8.0RT / SG10RT / SG12RT /
SG15RT / SG17RT / SG20RT
WWW.SUNGROWPOWER.COM
SG3.0-20RT-UEN-Ver13-202104
