4 Mechanical Mounting

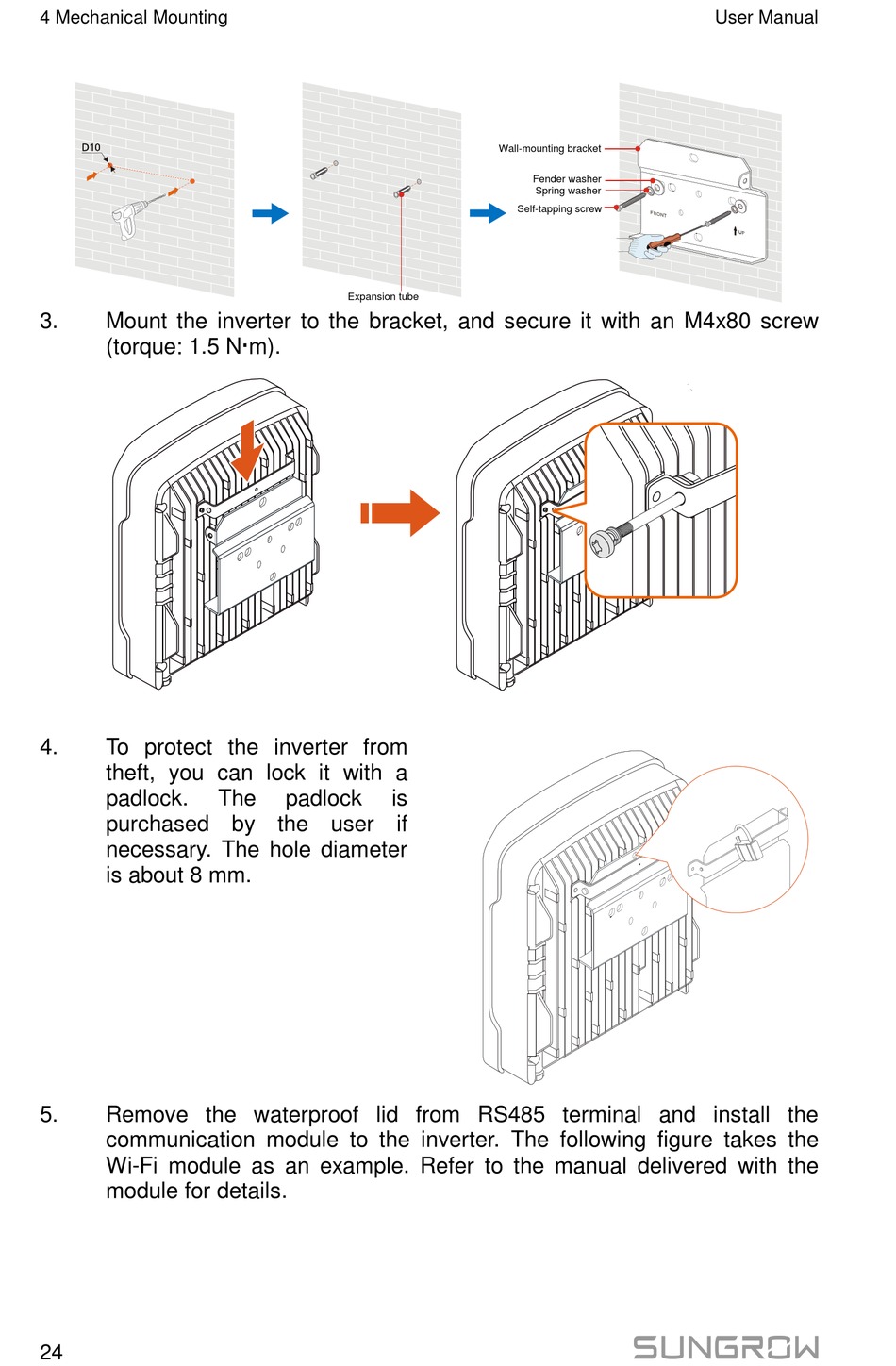

3. Mount the inverter to the bracket, and secure it with an M4x80 screw
(torque: 1.5 Nm).
4. To protect the inverter from
theft, you can lock it with a
padlock.
purchased by the user if
necessary. The hole diameter
is about 8 mm.
5. Remove the waterproof lid from RS485 terminal and install the
communication module to the inverter. The following figure takes the
Wi-Fi module as an example. Refer to the manual delivered with the
module for details.
24
Expansion tube
The padlock
Wall-mounting bracket
Fender washer
Spring washer
Self-tapping screw
is
