CP-Series
G
D
ENERAL
ESCRIPTION

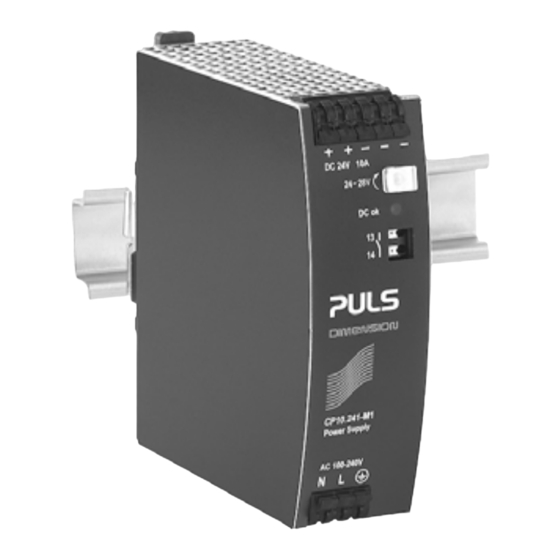

The CP10.241-M1 is a DIN-rail mountable single-phase-
input power supply for industrial use and for use in
medical equipment. It provides a stabilized and
galvanically separated SELV/PELV output voltage.
The specialty of this power supply is the 2MOPP (two
means of patient protection) safety approval for
medical use and the fulfillment of the required EMC
tests for professional healthcare facility and home
healthcare environments.
The CP-Series is part of the DIMENSION power supply
family. The most outstanding features of CP10.241-M1
are the high efficiency, advanced inrush current
limitation, active PFC and the wide operational
temperature range.
High immunity to transients and power surges as well as
low electromagnetic emission, a DC-OK relay contact
and a large international approval package for a variety
of applications makes this unit suitable for nearly every
situation.
O
N
RDER
UMBERS
Power Supply CP10.241-M1 Medical approved device
Accessory
ZM12.SIDE
May 2017 / Rev. 1.2 DS-CP10.241-M1-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
Side mount bracket
www.pulspower.com Phone +49 89 9278 0
24V, 10A, S
P
S
OWER
UPPLY
2MOPP Safety Approved for Medical applications
According to IEC 60601-1, 3
EMC Tested for Medical Use According to IEC 60601-1-2,
th
4
edition
Quick-connect Spring-clamp Terminals
AC 100-240V Wide-range Input
Width only 39mm
Efficiency up to 95.2%, Excellent Partial Load Efficiency
20% Output Power Reserves
PLUS
Safe Hiccup
Overload Mode
Easy Fuse Breaking due to High Overload Peak Current
Active Power Factor Correction (PFC)
Minimal Inrush Current Surge
Full Power Between -25°C and +60°C
DC-OK Relay Contact
3 Years Limited Warranty
S
-
D
HORT
FORM
Output voltage
DC 24V
Adjustment range
24 – 28V
Output current
12 – 10.3A
10 – 8.6A
7.5 – 6.5A
Derate linearely between +45°C and +70°C
Input voltage AC
AC 100 - 240V
Mains frequency
50 - 60Hz
AC Input current
2.15 / 1.13A
Power factor
0.99 / 0.97
Input inrush current
6 / 9A pk
Input voltage DC
DC 110-150V
Input current DC
2.35A
Efficiency
93.6 / 95.2%
Power losses
16.4 / 12.1W
Hold-up time
37ms
Temperature range
-25°C to +70°C
Size (wxhxd)
39x124x117mm
Weight
620g / 1.37lb
M
ARKINGS
IND. CONT. EQ.
UL 508, planned
Medical
2MOPP - IEC 60601-1
Germany
CP10.241-M1
P
I
INGLE
HASE
NPUT
rd
edition
ATA
Factory setting 24.1V
Below +45°C ambient
At +60°C ambient
At +70°C ambient
-15%/ +10%
±6%
At 120 / 230Vac
At 120 / 230Vac
At 40°C 120 / 230Vac
±20%
At 110Vdc
At 120 / 230Vac
At 120 / 230Vac
Continuous
Without DIN-rail
UL 60950-1,
EMC, LVD
planned
1/27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dimension CP Series and is the answer not in the manual?

Questions and answers

Related Manuals for Puls Dimension CP Series

Summary of Contents for Puls Dimension CP Series

  • Page 1 CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT OWER UPPLY 2MOPP Safety Approved for Medical applications According to IEC 60601-1, 3 edition EMC Tested for Medical Use According to IEC 60601-1-2, edition Quick-connect Spring-clamp Terminals AC 100-240V Wide-range Input Width only 39mm Efficiency up to 95.2%, Excellent Partial Load Efficiency 20% Output Power Reserves PLUS...

  • Page 2: Table Of Contents

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT NDEX Page Page Intended Use ............3 22. Physical Dimensions and Weight ..... 20 Installation Requirements........3 23. Accessories ............21 AC-Input...............4 23.1. ZM12.SIDE - Side Mounting Bracket..21 DC-Input...............5 23.2. YR20.242 - Redundancy Module....22 Input Inrush Current ...........6 23.3.

  • Page 3: Intended Use

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 1. I NTENDED This device is intended for use in medical equipment as well as for general use such as in industrial control, office, communication, and instrumentation equipment. Do not use this device in equipment, where malfunction may cause severe personal injury or threaten human life. 2.

  • Page 4: Ac-Input

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 3. AC-I NPUT AC input Nom. AC 100-240V Suitable for TN-, TT- and IT mains networks AC input range Min. 85-264Vac Continuous operation Min. 264-300Vac For max. 500ms Allowed voltage L or N to earth Max.

  • Page 5: Dc-Input

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT Fig. 3-3 Input current vs. output current at Fig. 3-4 Power factor vs. output current at 24V output voltage 24V output voltage Power Factor, typ. Input Current, typ. 0.95 a) 100Vac b) 120Vac c) 230Vac (a) 100Vac, 0.85...

  • Page 6: Input Inrush Current

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 5. I NPUT NRUSH URRENT An active inrush limitation circuit (NTCs, which are bypassed by a relay contact) limits the input inrush current after turn-on of the input voltage. The charging current into EMI suppression capacitors is disregarded in the first microseconds after switch-on. AC 100V AC 120V AC 230V...

  • Page 7: Output

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 6. O UTPUT Output voltage Nom. Adjustment range Min. 24-28V Guaranteed Max. 30.0V ****) At clockwise end position of potentiometer Factory settings Typ. 24.1V ±0.2%, at full load and cold unit Line regulation Max.

  • Page 8: Hold-Up Time

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT Fig. 6-1 Output voltage vs. output current, Fig. 6-2 Dynamic output current capability, typ. typ. Output Voltage Output Voltage (dynamic behavior, < 12ms) Adjustment Range Continuous current Adjustment Factory Range setting PLUS Hiccup mode Output Current...

  • Page 9: Dc-Ok Relay Contact

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 8. DC-OK R ELAY ONTACT This feature monitors the output voltage on the output terminals of a running power supply. Contact closes As soon as the output voltage reaches typ. 90% of the adjusted output voltage level. Contact opens As soon as the output voltage dips more than 10% below the adjusted output voltage.

  • Page 10: Efficiency And Power Losses

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 9. E FFICIENCY AND OWER OSSES AC 100V AC 120V AC 230V Efficiency Typ. 92.9% 93.6% 95.2% At 24V, 10A Typ. 92.5% 93.4% 95.1% At 24V, 12A (Power Boost) Average efficiency Typ. 92.5% 93.0% 94.3%...

  • Page 11: Lifetime Expectancy And Mtbf

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 10. L MTBF IFETIME XPECTANCY AND AC 100V AC 120V AC 230V Lifetime expectancy 128 000h 141 000h 176 000h At 24V, 5A and 40°C 61 000h 75 000h 120 000h At 24V, 10A and 40°C 47 000h 59 000h 101 000h...

  • Page 12: Terminals And Wiring

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 12. T ERMINALS AND IRING The terminals are IP20 finger safe constructed and suitable for field- and factory wiring. Input and Output DC-OK-Signal Type Quick-connect spring-clamp terminals Push-in terminals Solid wire Max. 6mm Max.

  • Page 13: Front Side And User Elements

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 13. F RONT IDE AND LEMENTS Fig. 13-1 Input Terminals Quick-connect spring-clamp terminals N, L Line input PE (Protective Earth) input B Output Terminals (two identical + poles and three identical - poles) Quick-connect spring-clamp terminals Positive output –...

  • Page 14: Emc - According To Generic Standards

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 14. EMC – A CCORDING TO ENERIC TANDARDS In regards to EMC, the power supply is designed for applications in medical applications, industrial environment as well as in residential, commercial and light industry environment. EMC Immunity According to generic standards: EN 61000-6-1 and EN 61000-6-2 Electrostatic discharge...

  • Page 15: Emc - According To Medical Standards

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 15. EMC – A CCORDING TO EDICAL TANDARDS EMC Immunity According to medical standard: EN 60601-1-2 Electrostatic discharge EN 61000-4-2 Contact discharge Criterion A Air discharge 15kV Criterion A Air discharge DC OK signal Criterion A Electromagnetic RF field EN 61000-4-3...

  • Page 16: Environment

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 16. E NVIRONMENT Operational temperature -25°C to +70°C (-13°F to 158°F) Reduce output power according Fig. 16-1 Non-operational -40°C to +85°C (-40°F to 185°F) For storage and transportation temperature Output de-rating 3.2W/°C 45°C to 60°C (113°F to 140°F) 6W/°C 60°C to 70°C (140°F to 158°F)

  • Page 17: Safety Features

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 17. S AFETY EATURES Input / output separation SELV IEC/EN 60950-1 PELV IEC/EN 60204-1, IEC/EN 62477-1, IEC 60364-4-41 double or reinforced insulation Transformers Safety Isolating Safety Isolating Transformers corresponding to Part 2-6 Transformers of the IEC/EN 61558 acc.

  • Page 18: Protection Features

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 18. P ROTECTION EATURES Output protection Electronically protected against overload, no-load and short-circuits Output over-voltage protection Typ. 30.5Vdc In case of an internal power supply defect, a redundant Max. 32Vdc circuit limits the maximum output voltage. The output shuts down and automatically attempts to restart.

  • Page 19: Approvals

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 20. A PPROVALS EC Declaration of Conformity The CE mark indicates conformance with the - EMC directive and the - Low-voltage directive (LVD) IEC 60601-1 CB Scheme, Edition Medical electrical equipment – Part 1: General requirements for basic safety and essential performance 2x MOPP and 2x MOOP (Except risk assessment)

  • Page 20: Physical Dimensions And Weight

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 22. P HYSICAL IMENSIONS AND EIGHT Width 39mm 1.54’’ Height 124mm 4.88’’ Depth 117mm 4.61’’ The DIN-rail height must be added to the unit depth to calculate the total required installation depth. Weight 620g / 1.37lb DIN-Rail...

  • Page 21: Accessories

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 23. A CCESSORIES 23.1. ZM12.SIDE - S OUNTING RACKET This bracket is used to mount the device sideways with or without utilizing a DIN-Rail. The two aluminum brackets and the black plastic slider of the unit have to be detached, so that the steel brackets can be mounted.

  • Page 22: Yr20.242 - Redundancy Module

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 23.2. YR20.242 - R EDUNDANCY ODULE The YR20.242 is equipped with two input channels, which are individually decoupled by utilizing MOSFET technology. Using MOSFETSs instead of diodes reduces the heat generation and the voltage drop between input and output.

  • Page 23: Application Notes

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 24. A PPLICATION OTES 24.1. P URRENT APABILITY The unit can deliver peak currents (up to several milliseconds) which are higher than the specified short term currents. This helps to start current demanding loads. Solenoids, contactors and pneumatic modules often have a steady state coil and a pick-up coil.

  • Page 24: Back-Feeding Loads

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 24.2. B FEEDING OADS Loads such as decelerating motors and inductors can feed voltage back to the power supply. This feature is also called return voltage immunity or resistance against Back- E.M.F. (Electro Magnetic Force). This power supply is resistant and does not show malfunctioning when a load feeds back voltage to the power supply.

  • Page 25: Series Operation

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 24.5. S ERIES PERATION Do not use the power supply in series. The leakage current will be too high to meet the medical requirements. 24.6. P ARALLEL SE TO NCREASE UTPUT OWER Do not use the power supply in parallel.

  • Page 26: Operation On Two Phases

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 24.10. O PERATION ON HASES Power Supply The power supply can also be used on two-phases of a three-phase- system. Such a phase-to-phase connection is allowed as long as the +10% supplying voltage is below 240V 24.11.

  • Page 27: Mounting Orientations

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 24.12. M OUNTING RIENTATIONS Mounting orientations other than all terminals on the bottom require a reduction in continuous output power or a limitation in the maximum allowed ambient temperature. The amount of reduction influences the lifetime expectancy of the power supply.
