Puls DIMENSION CP-Series Manual

CP-Series
G D
ENERAL ESCRIPTION
The CP-Series, part of the DIMENSION power supply
family are cost optimized without compromising
quality, reliability and performance.
The CP10.241-Rx units include a decoupling MOSFET for
building 1+1 or n+1 redundant power supply systems
without the need of external redundancy modules.
These redundancy power supplies come with three
connection terminal options; screw terminals, spring-
clamp terminals or plug connector terminals which
allows replacement on an active application.
The most outstanding features of these units are high
efficiency, electronic inrush current limitation, active
PFC and the wide operational temperature range.
The devices also have a power reserve of 20% included,
which may even be used continuously at temperatures
up to +45°C. Additionally, they can deliver 3 times the
nominal output current for 12ms which helps to trip
fuses on faulty output branches.
With high immunity to transients and power surges, low
electromagnetic emission, a DC-OK signal contact for
remote monitoring, and a large international approval
package, makes this unit suitable for nearly every
application.
O N
RDER UMBERS

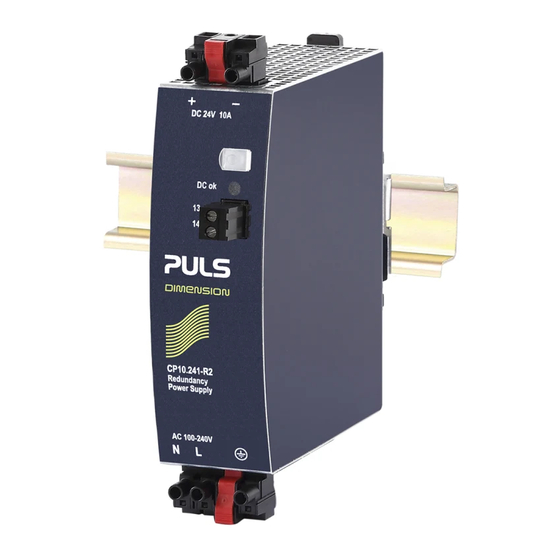

Power Supply CP10.241-R2 With plug connectors,
CP10.241-R1 With quick-connect
CP10.241-R3 With screw terminals
Accessory ZM4.WALL
ZM12.SIDE
June 2017 / Rev. 0.1 DS-CP10.241-R2-EN
All parameters are typical values specified at 10A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
P R E L I M I N A R Y
hot swappable (preferred
inventory item)
spring-clamp terminals
Wall/panel mount bracket
Side mount bracket
www.pulspower.com Phone +49 89 9278 0
CP10.241-R1, CP10.241-R2,
24V, 10A, S
R P
EDUNDANCY OWER
AC 100-240V Wide-range Input
Width only 39mm
Built-in Decoupling Mosfet for 1+1 and n+1 Redundancy
Efficiency up to 94.7%
20% Output Power Reserves
PLUS
Safe Hiccup Overload Mode
Easy Fuse Breaking – 3 times nominal current for 12ms
Active Power Factor Correction (PFC)
Minimal Inrush Current Surge
Full Power Between -25°C and +60°C
Current Sharing Feature Included
DC-OK Relay Contact
3 Year Warranty
S - D
HORT FORM
Output voltage DC 24V
Adjustment range -
Output current 12A
10A
7.5A
Output ripple max. 50mVpp
AC Input voltage AC 100-240V
Mains frequency 50-60Hz
AC Input current 2.17 / 1.14A
Power factor 0.99 / 0.97
AC Inrush current 6 / 9Apk
Efficiency 93.0 / 94.7%
Losses 18.1 / 13.4W
Temperature range -25°C to +70°C
Hold-up time 37ms
Size (w x h x d) 39x124x117mm
Weight 600g / 1.32lb
M
ARKINGS
IND. CONT. EQ.
UL 508, planned
IECEx
II 3G Ex ec nC II T4 Gc
Class I Div 2,
planned
Germany
CP10.241-R3
P I
INGLE HASE NPUT
S
UPPLY
ATA
0%/+6%
Below +45°C ambient
At +60°C ambient
At +70°C ambient
20Hz to 20MHz
-15%/+10%
±6%
At 120 / 230Vac
At 120 / 230Vac
At 120 / 230Vac
At 120 / 230Vac
At 120 / 230Vac
Without DIN-rail and
plug connectors
UL 60950-1,
planned
ATEX
planned
1/31
