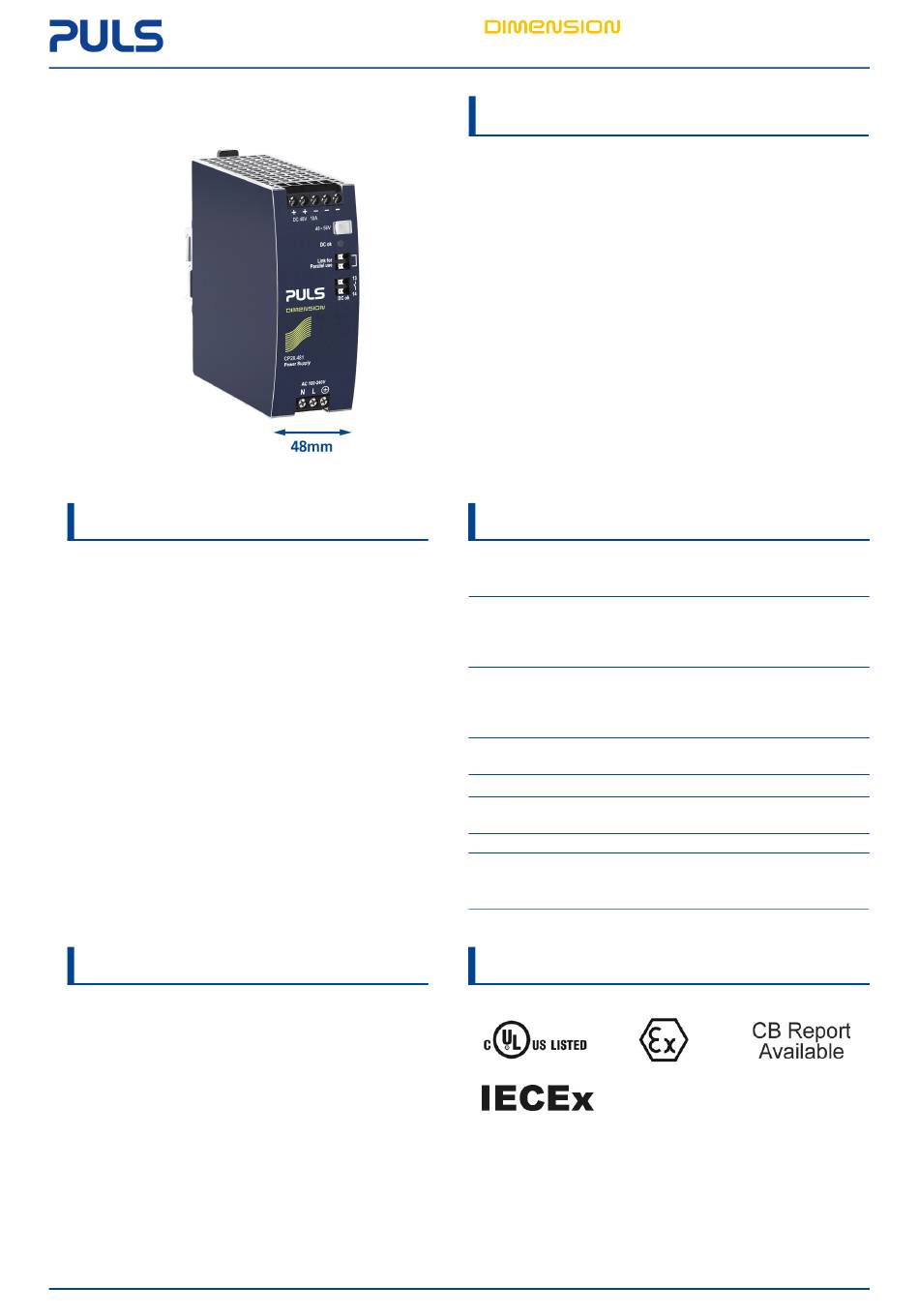

P
RODUCT DESCRIPTION
The Dimension CP-Series are cost optimized power
supplies without compromising quality, reliability and
performance. The CP-Series is part of the DIMENSION
power supply family. The most outstanding features
of CP20.481 are the high efficiency, electronic inrush
current limitation, active PFC, wide operational
temperature range. The small size is achieved by
a synchronous rectification, LLC technology and by
many further technological design details.
The C-Series includes all the essential basic functions.
The device has a power reserve of 20% included,
which may even be used continuously at temperatures
up to +45°C. Additionally, the CP20.481 can deliver
about 3 times the nominal output current for 12ms
which helps to trip fuses on faulty output branches.
High immunity to transients and power surges as
well as low electromagnetic emission, a DC-OK relay
contact and a large international approval package
make this unit suitable for nearly every situation.
O
RDER NUMBERS
Description:
Power supply CP20.481-xx
Order Number:
CP20.481
Accessories:
ZM10.WALL
Wall/Panel mount bracket
All parameters are specified at 48V, 10A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
Apr. 2021 / Rev. 1.0 DS-CP20.481-xx-EN
CP20.481
P
OWER SUPPLY
• AC 100-240V Wide-range input
• Width only 48mm
• Efficiency up to 96.3%
• Excellent partial load efficiency
• 20% Output power reserves
• Safe Hiccup
PLUS
overload mode
• Easy fuse breaking - 3 times nominal current for 12ms
• Active power factor correction (PFC)
• Minimal inrush current surge
• Full power between -25°C and +60°C
• DC-OK relay contact
• Current sharing feature for parallel use
• 3 year warranty
S
HORT-FORM DATA
Output voltage
Adjustment range 48-56Vdc
Output current
Input voltage AC
Mains frequency
Input current AC
Power factor
Input voltage DC
Input current DC
AC Inrush current
Efficiency
Power losses
Hold-up time
Temperature range -25°C to +70°C
Size (w x h x d)
Weight
M
AIN APPROVALS
For details or a complete approval list, see chapter 20.
www.pulspower.com
1AC 48V 480W
DC 48V
Nominal
Factory setting 48V
12-10.3A
Below +45°C ambient
10-8.6A
At +60°C ambient
7.5-6.5A
At +70°C ambient
Derate between +45°C and +70°C
±10%
AC 100-240V
±6%
50-60Hz
4.26 / 2.23A
At 120 / 230Vac
0.996 / 0.98
At 120 / 230Vac
DC 110-150V
±20%
4.64A
At 110Vdc
10 / 4.5A
At 120 / 230Vac
peak
95 / 96.3%
At 120 / 230Vac
25.1 / 18.4W
At 120 / 230Vac
32 / 32ms
At 120 / 230Vac
48x124x127mm Without DIN rail
830g / 1.83lb
CP20.481
1 / 32
