CP Series Installation Manual - CCC-Ex
CP 系列 安装手册 - CCC-Ex
CN
Doc. ID: PU-435.025.00-xxA (2021-06-15-MR1)
This is a family installation manual for Hazardous Location applications in
China.
Read this first!
Before operating this device, please read this manual thoroughly and retain this manual for future
reference! This device may only be installed and put into operation by qualified personnel. If damage
or malfunction should occur during operation, immediately turn power off and send device to the
factory for inspection. The device does not contain serviceable parts. The information presented in
this document is believed to be accurate and reliable and may change without notice. For any
clarifications the English translation will be used.
WARNING
Risk of electrical shock, fire, personal injury, or death:
-
Turn power off before working on the device. Protect against inadvertent re-powering.
-
Do not open, modify or repair the device.
-
Use caution to prevent any foreign objects from entering the housing.
-
Do not use in wet locations or in areas where moisture or condensation can be expected.
-
Do not touch during power-on and immediately after power-off. Hot surfaces may cause burns.
Product Description

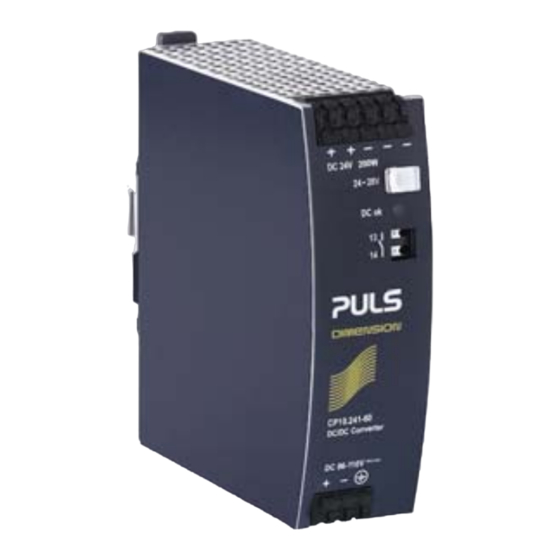

The CP series are DIN-rail mountable power supplies, which provides a floating,
stabilized and galvanically separated SELV/PELV output voltage.
Intended Use
This device is designed for installation in an enclosure and is intended for commercial
use, such as in industrial control, process control, monitoring and measurement
equipment or the like. Do not use this device in equipment where malfunction may
cause severe personal injury or threaten human life.
If this device is used in a manner outside of its specification, the protection provided by
the device may be impaired.
List of Covered Models and Ratings:
CP5.121
Input: AC 100-240V, 1.6-0.7A, 50-60Hz or DC 110-150V, 1.4A
Output: DC 12-15V, 12-9.6A (below 45°C), 10-8A (at 60°C), 7.5-6A (at
70°C)
Temperature range: -25°C to +70°C
Ex Protection level: EX nA nC IIC T4 Gc
CP5.241, CP5.241-S1, CP5.241-S2
Input: AC 100-240V, 1.6-0.7A, 50-60Hz or DC 110-150V, 1.4A
Output: DC 24-28V, 6-5.1A (below 45°C), 5-4.3A (at 60°C), 3.8-3.2A
(at 70°C)
Temperature range: -25°C to +70°C
Ex Protection level: EX nA nC IIC T4 Gc
CP5.481
Input: AC 100-240V, 1.6-0.7A, 50-60Hz or DC 110-150V, 1.4A
Output: DC 48-56V, 3-2.6A (below 45°C), 2.5-2.1A (at 60°C), 1.9-1.6A
(at 70°C)
Temperature range: -25°C to +70°C
Ex Protection level: EX nA nC IIC T4 Gc
CP10.121
Input: AC 100-240V, 2.6-1.1A, 50-60Hz or DC 110-150V, 2.4-1.7A
Output: DC 12-15V, 19.2-15.4A (below 45°C), 16-12.8A (at 60°C), 12-
9.6A (at 70°C)
Temperature range: -25°C to +70°C
Ex Protection level: EX nA nC IIC T4 Gc
CP10.241, CP10.241-S1, CP10.241-S2
Input: AC 100-240V, 3.3-1.4A, 50-60Hz or DC 110-150V, 3.0-2.2A
Output: DC 24-28V, 12-10.3A (below 45°C), 10-8.6A (at 60°C), 7.5-
6.5A (at 70°C)
Temperature range: -25°C to +70°C
Ex Protection level: EX nA nC IIC T4 Gc
CP10.241-R1, CP10.241-R2, CP10.241-R3
Input: AC 100-240V, 3.3-1.4A, 50-60Hz or DC 110-150V, 3.0-2.2A
Output: DC 24V, 12A (below 45°C), 10A (at 60°C), 7.5A (at 70°C)
Temperature range: -25°C to +70°C
Ex Protection level: EX nA nC IIC T4 Gc
Input: AC 100-240V, 3.3-1.4A, 50-60Hz or DC 110-300V, 3.0-1.1A
CP10.242
Output: DC 24-28V, 12-10.3A (below 45°C), 10-8.6A (at 60°C), 7.5-
6.5A (at 70°C)
Temperature range: -25°C to +70°C
Ex Protection level: EX nA nC IIC T4 Gc
Power Supply
电源
普尔世电源产品(苏州)有限公司 苏州工业园区兴浦路瑞恩巷 1 号 215021
The information in this document is believed to be accurate and reliable and may change without notice
本文件中的信息被认为是准确和可靠的,并可能未经通知而发生变化
这是一份适用于中国危险场所应用的安装手册。
English
安装要求!
在操作本产品之前,请仔细阅读本手册,并保留本手册以供将来参考!
本产品只能由有相关资质的人员安装和操作。
如果安装或运行过程中发生损坏或故障,立即关断电源,并将产品返回厂商检查。
本产品不包含需要维护的零件。
本文档中提供的信息准确、可靠;如有修改,恕不另行通知。
本文档翻译自英文版本,中英文版本之间如有差异,应以英文版为准。
触电、火灾、人身伤害或死亡危险。
-
在设备上执行作业前,先关断电源。提供保护,以免设备意外重新通电。
-
由于产品内部有高压,请勿自行打开或维护本产品。
-
谨防任何异物进入壳体。
-
切勿在潮湿地点或可能会出现湿气或冷凝区域使用该产品。
-
电源在运行期间及刚断电时,切勿触碰。灼热的表面可能会造成烫伤。
产品介绍
CP 系列是可安装在 DIN 导轨上的电源,它提供一个浮动的、稳定的、电隔离的 SELV/PELV
输出电压。
预期用途
本装置设计安装在机箱内,用于商业用途,
如工业控制、过程控制、监测和测量设备或类似设备。
请勿将本装置用于发生故障可能导致严重人身伤害或威胁人类生命的设备中。
如果本装置的使用方式不符合其规格,本装置所提供的保护可能会受到影响。
涵盖的型号和额定规格:
输入: AC 100-240V, 1.6-0.7A, 50-60Hz 或 DC 110-150V, 1.4A
CP5.121
输出: DC 12-15V, 12-9.6A (低于 45°C), 10-8A (在 60°C), 7.5-6A (在 70°C)
温度范围: -25°C 至 +70°C
防爆等级: Ex nA nC IIC T4 Gc
CP5.241, CP5.241-S1, CP5.241-S2
输入: AC 100-240V, 1.6-0.7A, 50-60Hz 或 DC 110-150V, 1.4A
输出: DC 24-28V, 6-5.1A (低于 45°C), 5-4.3A (在 60°C), 3.8-3.2A (在
70°C)
温度范围: -25°C 至 +70°C
防爆等级: Ex nA nC IIC T4 Gc
输入: AC 100-240V, 1.6-0.7A, 50-60Hz 或 DC 110-150V, 1.4A
CP5.481
输出: DC 48-56V, 3-2.6A (低于 45°C), 2.5-2.1A (在 60°C), 1.9-1.6A (在
70°C)
温度范围: -25°C 至 +70°C
防爆等级: Ex nA nC IIC T4 Gc
输入: AC 100-240V, 2.6-1.1A, 50-60Hz 或 DC 110-150V, 2.4-1.7A
CP10.121
输出: DC 12-15V, 19.2-15.4A (低于 45°C), 16-12.8A (在 60°C), 12-9.6A (在
70°C)
温度范围: -25°C to +70°C
防爆等级: Ex nA nC IIC T4 Gc
CP10.241, CP10.241-S1, CP10.241-S2
输入: AC 100-240V, 3.3-1.4A, 50-60Hz 或 DC 110-150V, 3.0-2.2A
输出: DC 24-28V, 12-10.3A (低于 45°C), 10-8.6A (在 60°C), 7.5-6.5A (在
70°C)
温度范围: -25°C 至 +70°C
防爆等级: Ex nA nC IIC T4 Gc
CP10.241-R1, CP10.241-R2, CP10.241-R3
输入: AC 100-240V, 3.3-1.4A, 50-60Hz 或 DC 110-150V, 3.0-2.2A
输出: DC 24V, 12A (低于 45°C), 10A (在 60°C), 7.5A (在 70°C)
温度范围: -25°C 至 +70°C
防爆等级: Ex nA nC IIC T4 Gc
输入: AC 100-240V, 3.3-1.4A, 50-60Hz 或 DC 110-300V, 3.0-1.1A
CP10.242
输出: DC 24-28V, 12-10.3A (低于 45°C), 10-8.6A (在 60°C), 7.5-6.5A (在
70°C)
温度范围: -25°C 至 +70°C
防爆等级: Ex nA nC IIC T4 Gc
