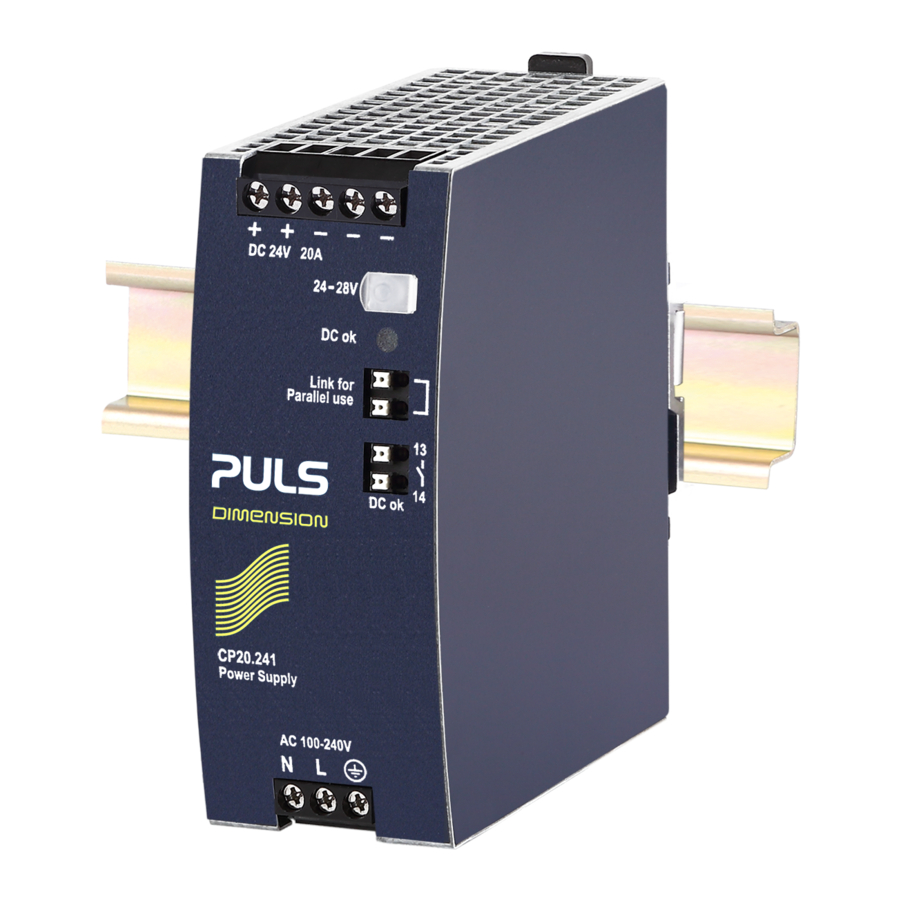

Puls DIMENSION CP Series Manual

CP-Series
G D
ENERAL ESCRIPTION
The DIMENSION CP-Series units are high-end power
supplies in a medium price range without compromising
quality, reliability and performance. The CP-Series is
part of the DIMENSION power supply family. The most
outstanding features of CP10 are the high efficiency,
advanced inrush current limitation, active PFC and the
wide operational temperature range.
The CP-Series includes all the essential basic functions.
The devices have a power reserve of 20% included,
which may even be used continuously at temperatures
up to +45°C. Additionally, the CP10 can deliver three
times the nominal output current for at least 12ms
which helps to trip fuses on faulty output branches.
High immunity to transients and power surges as well as
low electromagnetic emission, a shut-down input, a DC-
OK relay contact and a large international approval
package for a variety of applications makes this unit
suitable for nearly every situation.
O N
RDER UMBERS
Power Supply CP10.121
CP10.122
Mechanical Accessory
ZM12.SIDE
ZM4.WALL Wall/ panel mount bracket
Aug. 2017 / Rev. 1.3 DS-CP10.121-EN
All parameters are typical values specified at 230Vac, 50Hz input voltage, 12V 16A output, 25°C ambient temperature and
after a 5 minutes run-in time unless otherwise noted.
Standard unit
(preferred item)
With extended DC-input
Side mount bracket
www.pulspower.com Phone +49 89 9278 0
CP10.121, CP10.122
12V, 16A, 192W, S
P S
OWER UPPLY
AC 100-240V Wide-range Input
Width only 39mm
Efficiency up to 94.3%
Excellent Partial Load Efficiency
20% Output Power Reserves
PLUS
Safe Hiccup Overload Mode
Easy Fuse Breaking due to High Overload Peak Current
Active Power Factor Correction (PFC)
Minimal Inrush Current Surge
Full Power Between -25°C and +60°C
Remote ON / OFF Function
DC-OK Relay Contact
3 Year Warranty
S - D
HORT FORM
Output voltage DC 12V
Adjustment range 12 - 15Vdc
Output current 19.2 – 15.4A
16.0 – 12.8A
12.0 – 9.6A
Derate linearely between +45°C and +70°C
Input voltage AC AC 100-240V
Mains frequency 50-60Hz
Input current AC 1.74 / 0.92A
Power factor 0.99 / 0.96
Input voltage DC DC 110-150V
DC 110-300V
Input current DC 1.90A
1.38A
0.68A
Input inrush current 6 / 9A pk
Efficiency 92.8 / 94.3%
Losses 14.9 / 11.6W
Hold-up time 50ms
Temperature range -25°C to +70°C
Size (w x h x d) 39x124x117mm
Weight 600g / 1.3lb
M A
AJOR GENCY
For details and a complete approval list see section 21.
IND. CONT. EQ.
IECEx
Class I Div 2
Germany
P I
INGLE HASE NPUT
ATA
Nominal
Factory setting 12.0V
Below +45°C ambient
At +60°C ambient
At +70°C ambient
-15% / +10%
±6%
At 120 / 230Vac
At 120 / 230Vac
±20%
For CP10.121
±20%
For CP10.122
At 110Vdc
At 150Vdc
At 300Vdc
At 120 / 230Vac, 40°C
At 120 / 230Vac
At 120 / 230Vac
Without DIN-rail
A
PPROVALS
UL 60950-1
ATEX
Marine
1/28
