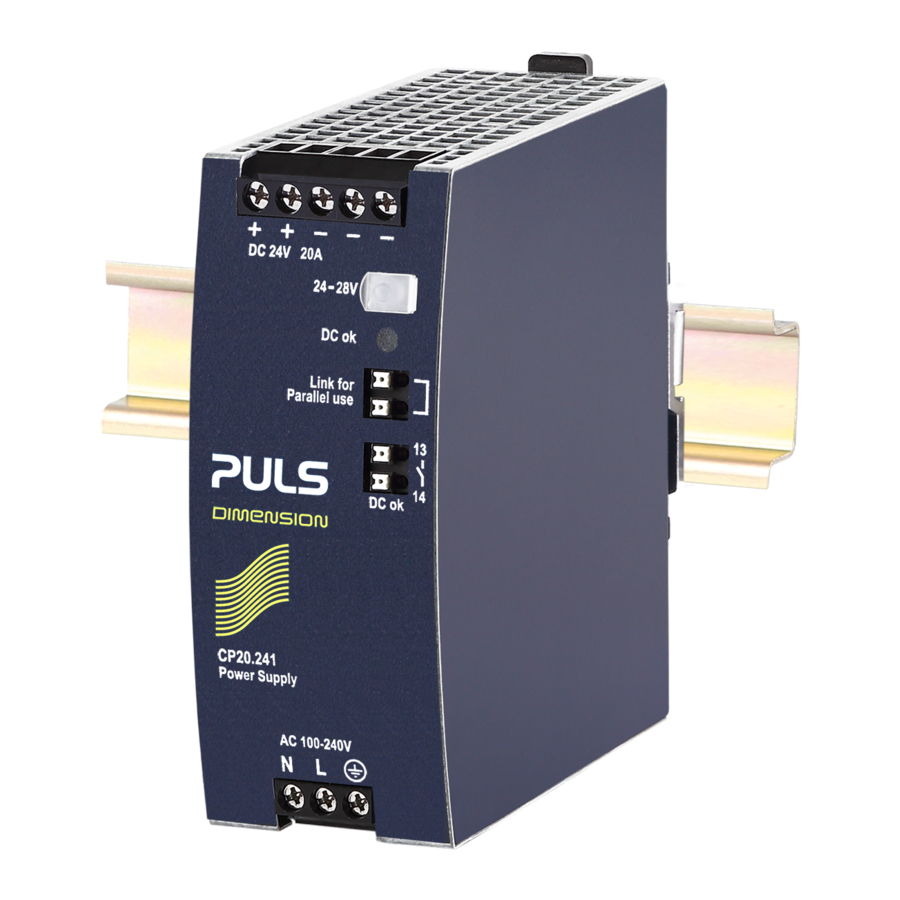

CP-Series
P
D
RODUCT
ESCRIPTION
Th
e CP10.248 is a DIN rail mountable single-phase-input
power supply, which provides a floating, stabilized and
galvanically separated SELV/PELV output voltage.
The device has a condition display integrated which shows
real-time and recorded data informing about the condition
of the power supply and the power line.
A DC-OK signal, an alarm signal and remote ON/OFF make
the unit suitable for many applications, where preventive
function monitoring and remote control can help to avoid
costly downtimes.
The device has a power reserve of 20% included, which may
even be used continuously up to +45°C. Additionally it can
deliver 3 times the nominal output current for 12ms, which
helps to trip fuses on faulty output branches.
The device is equipped with a "Single Use / Parallel Use"
feature, which enables a load sharing between power
supplies when they are connected in parallel.
The Dimension CP-Series are cost optimized power supplies
without compromising quality, reliability and performance.
The most outstanding features of this series are the high
efficiency, electronic inrush current limitation, active PFC,
wide operational temperature range and the extraordinary
small size.
O
N
RDER
UMBERS
Power Supply CP10.248
Mechanical Accessory
ZM10.WALL
Jul. 2022 / Rev 0.2 DS-CP10.248-EN All parameters are typical values specified 230Vac, 50Hz input voltage, 24V, 10A output load,
25°C ambient and after a 5 minutes run-in time unless otherwise noted.
Wall/Panel mount bracket
www.pulspower.com Phone +49 89 9278 0
24V, 10A, 240W, S
P
S
OWER
UPPLY
 AC 100-240V Wide-range input
 Width only 48mm
 Display for condition monitoring and easy analysis of
power errors
 Efficiency up to 95.2%
 20% output power reserves
 Easy Fuse Breaking – 3 times nominal current for 12ms
 Safe Hiccup
PLUS
Overload Mode
 Full power between -25°C and +60°C
 DC-OK relay contact
 ALARM relay contact
 Remote ON/OFF functionality
 Current sharing feature for parallel use
 3 Year Warranty
S
-
D
HORT
FORM
Output voltage
DC 24V
Adjustment range
24 - 28V
Output current
12.0 – 10.3A
10.0 – 8.6A
7.5 – 6.5A
Derate between +45°C and +70°C
Input voltage AC
AC 100-240V
Mains frequency
50-60Hz
Input current AC
2.15 / 1.13A
Power factor
0.99 / 0.97
Input voltage DC
DC 110-150V
Input current DC
2.35A
AC Inrush current
6 / 9Apk
Efficiency
93.6 / 95.2%
Losses
16.4 / 12.1W
Hold-up time
37/37ms
Temperature range
-25°C to +70°C
Size (WxHxD)
48x124x127mm Without DIN rail
Weight
675g / 1.49lb
M
A
AIN
PPROVALS
For details and the complete approval list, see chapter 22.
Germany
CP10.248
P
INGLE
HASE
ATA
Nominal
Factory setting 24.1V
Below +45°C ambient
At +60°C ambient
At +70°C ambient
-15%/+10%
±6%
At 120 / 230Vac
At 120 / 230Vac
±20%
At 110 / 300Vdc
At 120 / 230Vac
At 120 / 230Vac
At 120 / 230Vac
At 120 / 230Vac
1/33

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIMENSION CP Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Puls DIMENSION CP Series

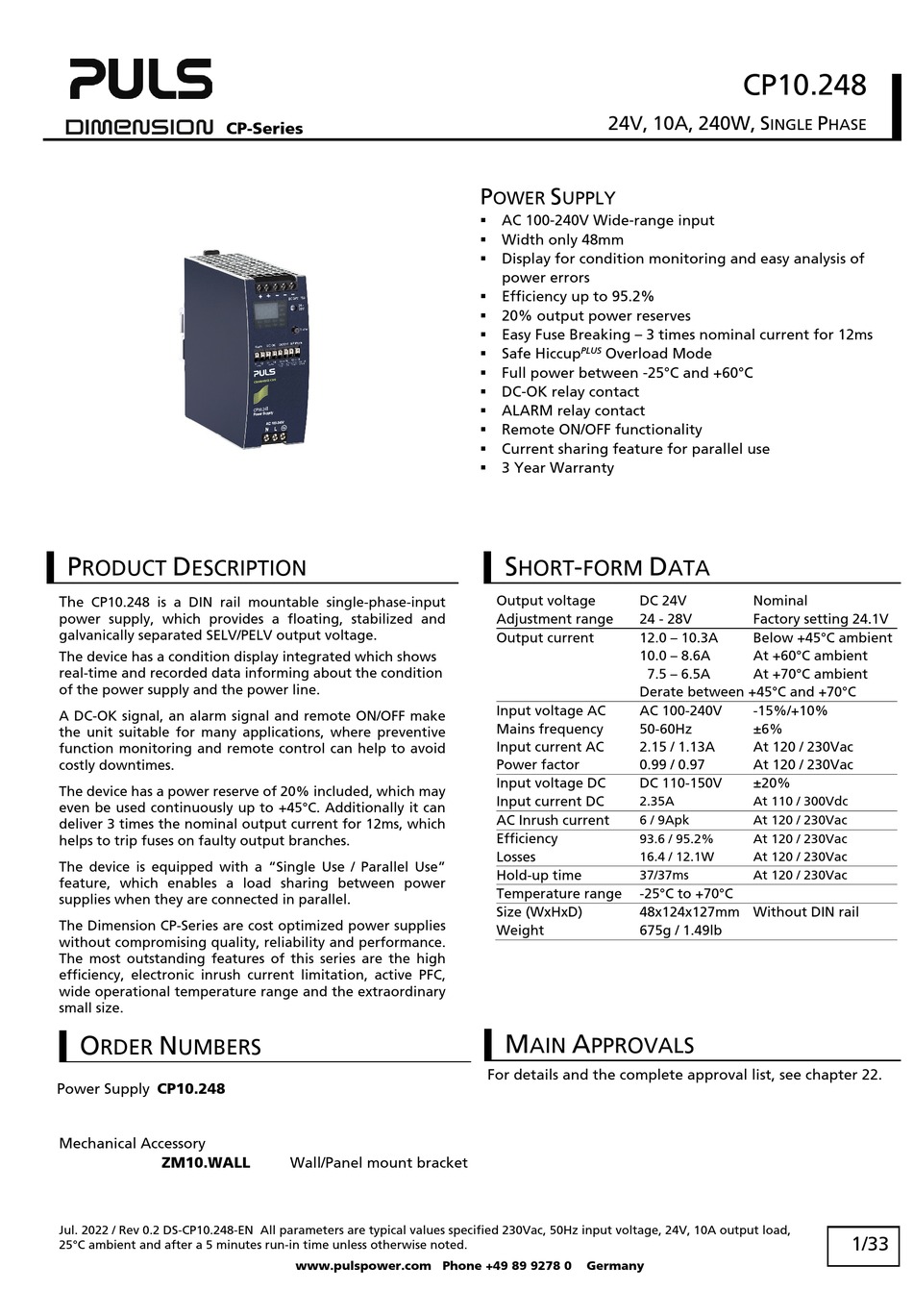

  • Page 1 CP10.248 24V, 10A, 240W, S INGLE HASE CP-Series OWER UPPLY  AC 100-240V Wide-range input  Width only 48mm  Display for condition monitoring and easy analysis of power errors  Efficiency up to 95.2%  20% output power reserves ...
