Puls DIMENSION CP Series Quick Start Manual

G D
ENERAL ESCRIPTION

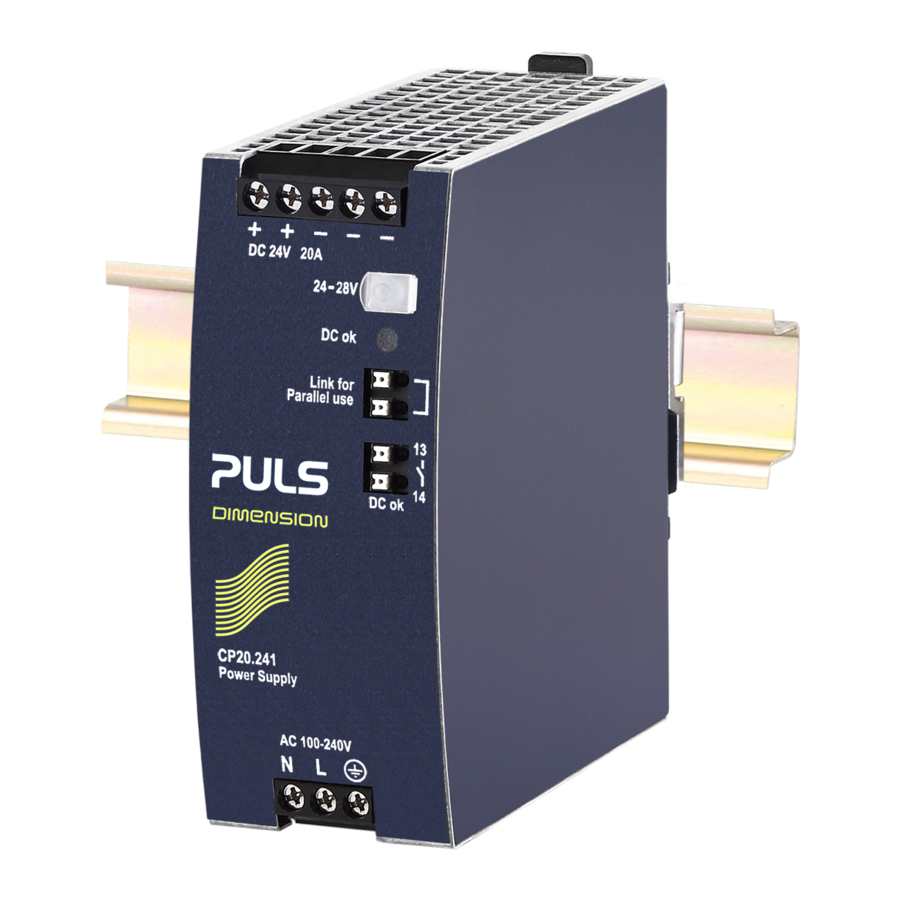

The DIMENSION CP-Series units are high-end power
supplies in a medium price range without compromising
quality, reliability and performance. The CP-Series is
part of the DIMENSION power supply family. The most
outstanding features
efficiency, advanced inrush current limitation, active PFC
and the wide operational temperature range.
The CP-Series includes all the essential basic functions.
The devices have a power reserve of 10% up to +60°C
and 20% up to +45°C included, which may even be used
continuously. Additionally, the CP10 can deliver three
times the nominal output current for at least 12ms
which helps to trip fuses on faulty output branches.
High immunity to transients and power surges as well as
low electromagnetic emission, a DC-OK relay contact
and a large international approval package for a variety
of applications makes this unit suitable for nearly every
situation.
O N
RDER UMBERS
Power Supply CP10.481
Mechanical Accessory
ZM4.WALL Wall/panel mount bracket
ZM12.SIDE
Aug. 2017 / Rev. 1.2 DS-CP10.481-EN
All parameters are specified at 48V, 5.4A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
Your Authorized Distributor is: Controller Service and Sales - www.controllerservice.com - sales@controllerservice.com - (800)584-5565
CP-Series
of CP10.481 are the
Side mount bracket
www.pulspower.com Phone +49 89 9278 0
48V, 5.4A, 260W, S
P S
OWER UPPLY
AC 100-240V Wide-range Input
Width only 39mm
+10% (5.4A) continuous current up to +60°C
+20% (6A) continuous current up to +45°C
Efficiency up to 95.5%
Excellent Partial Load Efficiency
PLUS
Safe Hiccup
Active Power Factor Correction (PFC)
Minimal Inrush Current Surge
Full Power Between -25°C and +60°C
DC-OK Relay Contact
3 Year Warranty
S -
HORT FORM
Output voltage
Adjustment range
Output current
high
Input voltage AC
Mains frequency
Input current AC
Power factor
Input voltage DC
Input current DC
Reduce output current to 5-4.3A (48-56V) below 93.5Vdc
AC Inrush current
Efficiency
Losses
Hold-up time
Temperature range
Size (w x h x d)
Weight
M
ARKINGS
For details and a complete approval list see section 20.
IND. CONT. EQ.
UL 508
Class I Div 2
Germany
CP10.481
P
INGLE
Overload Mode
D
ATA
DC 48V Nominal
48 – 56V Factory setting 48.0V
6.0-5.2A Below +45°C ambient
5.4-4.6A At +60°C ambient
4.0-3.4A At +70°C ambient
Derate linearely between +45°C and +70°C
AC 100-240V ±10%
50-60Hz ±6%
2.32 / 1.20A At 120 / 230Vac
0.99 / 0.98 At 120 / 230Vac
DC 110-150V ±20%
2.51A At 110Vdc
6 / 9A pk At 40°C 120/230Vac
93.8 / 95.5% At 120 / 230Vac
17.2 / 12.3W At 120 / 230Vac
34 / 34ms At 120 / 230Vac
-25°C to +70°C
39x124x117mm Without DIN-Rail
600g / 1.3lb
UL 60950-1
IECEx
ATEX
I
HASE NPUT
Marine
