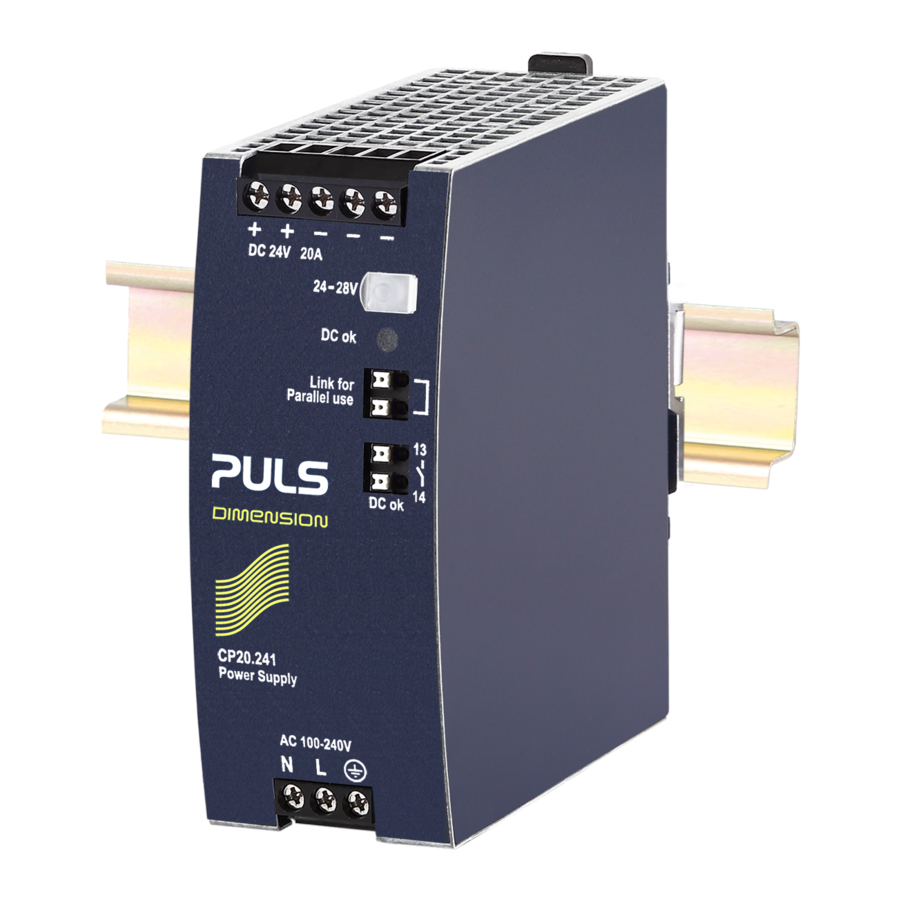

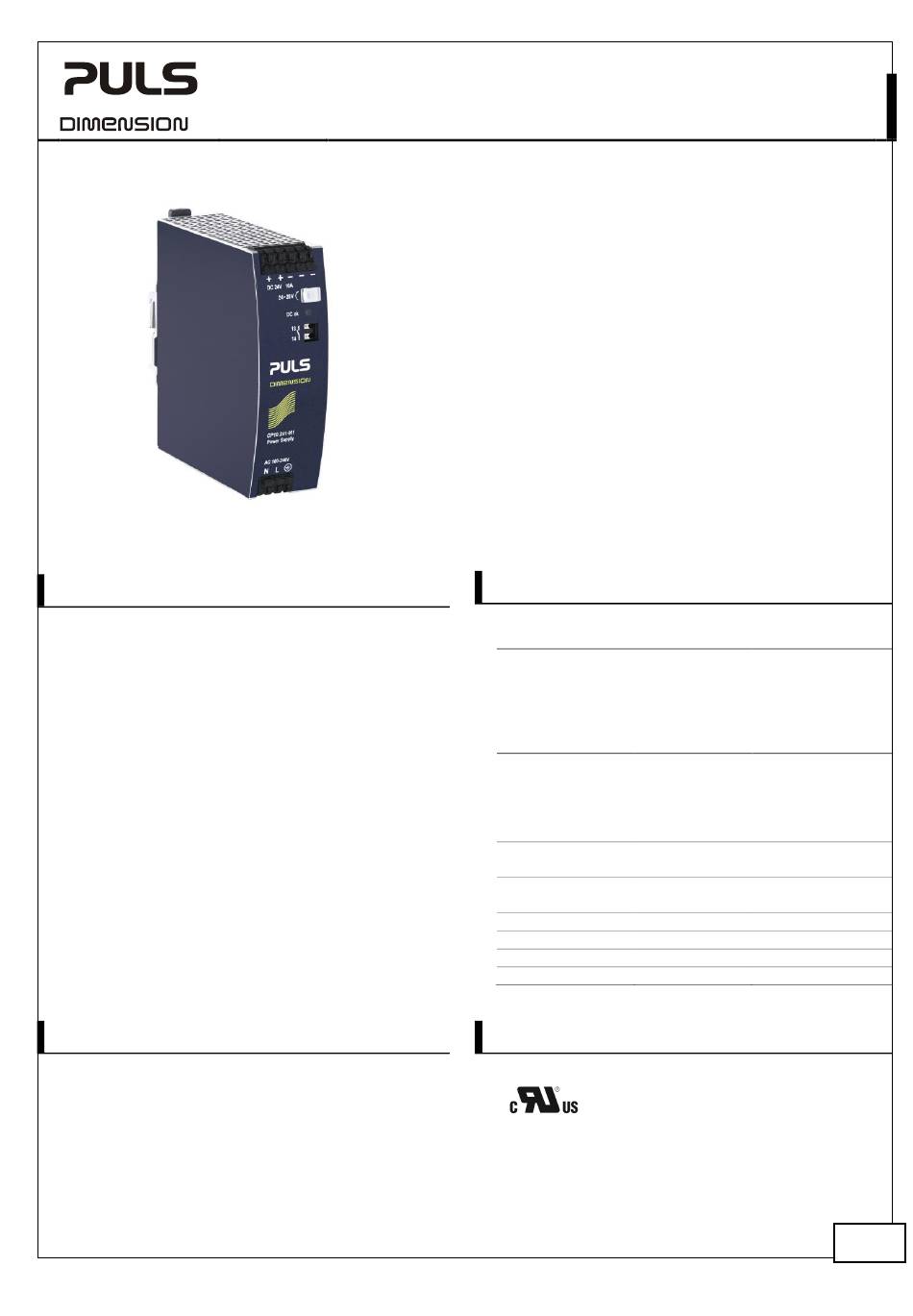

CP-Series
P
D
RODUCT
ESCRIPTION
The CP10.241-M1 is a DIN rail mountable single-phase-input
power supply for industrial use and for use in medical
equipment. It provides a stabilized and galvanically separated
SELV/PELV output voltage.
The specialty of this power supply is the 2MOPP (two means of
patient protection) safety approval for medical use and the
fulfillment of the required EMC tests for professional healthcare
facility and home healthcare environments.
The CP-Series is part of the DIMENSION power supply family.
The most outstanding features of CP10.241-M1 are the high
efficiency, advanced inrush current limitation, active PFC and
the wide operational temperature range. The devices also offer
PowerBoost: Power reserves of 20%, which may even be used
continuously at temperatures up to +45°C.
High immunity to transients and power surges as well as low
electromagnetic emission, a DC-OK relay contact and a large
international approval package for a variety of applications
makes this unit suitable for nearly every situation.
O
N
RDER
UMBERS
Power Supply
CP10.241-M1
Accessory
ZM10.WALL
ZM12.SIDE
Aug. 2022 / Rev. 1.3 DS-CP10.241-M1-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
Medical approved device
Wall mount bracket
Side mount bracket
www.pulspower.com Phone +49 89 9278 0 Germany
P
S
OWER
UPPLY
▪ 2MOPP Safety Approved for Medical applications According to
UL / IEC 60601-1
▪ EMC Tested for Medical Use According to 60601-1-2
▪ Quick-connect Spring-clamp Terminals
▪ AC 100-240V Wide-range Input
▪ Width only 39mm
▪ Efficiency up to 95.2%, Excellent Partial Load Efficiency
▪ 20% Output Power Reserves (PowerBoost)
▪ Safe Hiccup
PLUS
Overload Mode
▪ Easy Fuse Breaking due to High Overload Peak Current
▪ Active Power Factor Correction (PFC)
▪ Minimal Inrush Current Surge
▪ Full Power Between -25°C and +60°C
▪ DC-OK Relay Contact
▪ 3 Years Limited Warranty
S
-
D
HORT
FORM
ATA
Output voltage
DC 24V
Adjustment range
24 – 28V
Output Current
10 – 8.6A
7.5 – 6.5A
Derate linearly between +60°C and +70°C
PowerBoost
12A
Linear decrease to nominal power between
+45°C and +60°C
Input voltage AC
AC 100 - 240V
Mains frequency
50 - 60Hz
AC Input current
2.15 / 1.13A
Power factor
0.99 / 0.97
Input inrush current
6 / 9A pk
Input voltage DC
DC 110-150V
Input current DC
2.35A
Efficiency
93.6 / 95.2%
Power losses
16.4 / 12.1W
Hold-up time
37ms
Temperature range
-25°C to +70°C
Size (wxhxd)
39x124x117mm
Weight
620g
M
A
AIN
PPROVALS
For details and the complete approval list, see chapter 20
UL 60601-1
CP10.241-M1
24V, 10A, S
P
INGLE
HASE
Factory setting 24.1V
Up to +60°C ambient
At +70°C ambient
Up to +45°C ambient
-15%/ +10%
±6%
At 120 / 230Vac
At 120 / 230Vac
At 40°C 120 / 230Vac
±20%
At 110Vdc
At 120 / 230Vac
At 120 / 230Vac
Continuous
Without DIN rail
I
NPUT
1/28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIMENSION CP Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Puls DIMENSION CP Series

Summary of Contents for Puls DIMENSION CP Series

  • Page 1 CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT OWER UPPLY ▪ 2MOPP Safety Approved for Medical applications According to UL / IEC 60601-1 ▪ EMC Tested for Medical Use According to 60601-1-2 ▪ Quick-connect Spring-clamp Terminals ▪ AC 100-240V Wide-range Input ▪...

  • Page 2: Table Of Contents

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT NDEX Page Page Intended Use ..............3 21. Regulatory Product Compliance ........ 20 Installation Instructions ..........3 22. Physical Dimensions and Weight ....... 21 AC-Input ............... 5 23. Accessories..............22 DC-Input ............... 6 23.1.

  • Page 3: Intended Use

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 1. I NTENDED This device is designed for installation in an enclosure and is intended for use in medical equipment. Do not use this device in HF surgical equipment or similar apertures. Do not use this device in equipment, where malfunction may cause severe personal injury or threaten human life.
  • Page 4 CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT The maximum surrounding air temperature is +70°C. The operational temperature is the same as the ambient or surrounding air temperature and is defined 2cm below the device. The device is designed to operate in areas between 5% and 95% relative humidity. Portable RF communication equipment should be used no closer than 30cm to the power supply or the power supply connection cables.

  • Page 5: Ac-Input

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 3. AC-I NPUT AC input Nom. AC 100-240V Suitable for TN-, TT- and IT mains networks AC input range 85-264Vac 264-300Vac For max. 500ms Allowed voltage L or N to earth Max. 300Vac Continuous, IEC 62477-1 Input frequency...

  • Page 6: Dc-Input

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT Fig. 3-3 Input current vs. output current at 24V output Fig. 3-4 Power factor vs. output current at 24V output voltage voltage Input C urrent, typ. a) 100Vac b) 120Vac c) 230Vac Output C urrent 10 11 4.

  • Page 7: Input Inrush Current

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 5. I NPUT NRUSH URRENT An active inrush limitation circuit (NTCs, which are bypassed by a relay contact) limits the input inrush current after turn-on of the input voltage. The charging current into EMI suppression capacitors is disregarded in the first microseconds after switch-on. AC 100V AC 120V AC 230V...

  • Page 8: Output

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 6. O UTPUT Output voltage Nom. Adjustment range 24-28V Guaranteed ****) Max. 30.0V At clockwise end position of potentiometer Factory settings Typ. 24.1V ±0.2%, at full load and cold unit Line regulation Max.

  • Page 9: Hold-Up Time

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT Fig. 6-1 Output voltage vs. output current, typ. Fig. 6-2 Dynamic output current capability, typ. Output Voltage Output Voltage (dynamic behavior, < 12ms ) Adjus tment R ange C ontinuous current Adjus tment F actory R ange s etting...

  • Page 10: Dc-Ok Relay Contact

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 8. DC-OK R ELAY ONTACT This feature monitors the output voltage on the output terminals of a running power supply. Contact closes As soon as the output voltage reaches typ. 90% of the adjusted output voltage level. Contact opens As soon as the output voltage dips more than 10% below the adjusted output voltage.

  • Page 11: Efficiency And Power Losses

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 9. E FFICIENCY AND OWER OSSES AC 100V AC 120V AC 230V Efficiency Typ. 92.9% 93.6% 95.2% At 24V, 10A Typ. 92.5% 93.4% 95.1% At 24V, 12A (PowerBoost) 25% at 2.5A, 25% at 5A, Average efficiency Typ.

  • Page 12: Lifetime Expectancy And Mtbf

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 10. L MTBF IFETIME XPECTANCY AND AC 100V AC 120V AC 230V Lifetime expectancy 128 000h 141 000h 176 000h At 24V, 5A and 40°C 61 000h 75 000h 120 000h At 24V, 10A and 40°C 47 000h 59 000h 101 000h...

  • Page 13: Terminals And Wiring

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 12. T ERMINALS AND IRING The terminals are IP20 finger safe constructed and suitable for field- and factory wiring. Input and Output DC-OK-Signal Type Quick-connect spring-clamp terminals Push-in terminals Solid wire Max. 6mm Max.

  • Page 14: Front Side And User Elements

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 13. F RONT IDE AND LEMENTS Fig. 13-1 Input Terminals Quick-connect spring-clamp terminals N, L Line input PE (Protective Earth) input Output Terminals (two identical + poles and three identical - poles) Quick-connect spring-clamp terminals Positive output –...

  • Page 15: Emc - According To Medical Standards

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 14. EMC – A CCORDING TO EDICAL TANDARDS EMC Immunity According to medical standard: EN 60601-1-2 Electrostatic discharge EN 61000-4-2 Contact discharge Criterion A Air discharge 15kV Criterion A Air discharge DC OK signal Criterion A Electromagnetic RF field EN 61000-4-3...

  • Page 16: Emc - According To Generic Standards

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 15. EMC – A CCORDING TO ENERIC TANDARDS In regard to EMC, the power supply is designed for applications in medical applications, industrial environment as well as in residential, commercial and light industry environment. EMC Immunity According to generic standards: EN 61000-6-1 and EN 61000-6-2 Electrostatic discharge...

  • Page 17: Environment

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 16. E NVIRONMENT Operational temperature -25°C to +70°C Reduce output power according Fig. 16-1 Non-operational temperature -40°C to +85°C For storage and transportation Output derating 6W/K Between +60°C and +70°C Humidity 5 to 95% r.h. For operation, storage and transportation according to IEC 60068-2-30 Atmospheric pressure...

  • Page 18: Safety Features

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 17. S AFETY EATURES Input / output separation SELV IEC/EN 60950-1 PELV IEC/EN 60204-1, IEC/EN 62477-1, IEC 60364-4-41 double or reinforced insulation Transformers Safety Isolating Transformers Safety Isolating Transformers corresponding to Part 2-6 of the acc.

  • Page 19: Protection Features

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 18. P ROTECTION EATURES Output protection Electronically protected against overload, no-load and short-circuits Output over-voltage protection Typ. 30.5Vdc In case of an internal power supply defect, a redundant circuit Max. 32Vdc limits the maximum output voltage. The output shuts down and automatically attempts to restart.

  • Page 20: Approved, Fulfilled Or Tested Standards

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 20. A PPROVED ULFILLED OR ESTED TANDARDS IEC 60601 CB-Scheme Certificate IEC 60601-1 - Medical electrical equipment - General requirements for 2MOPP basic safety and essential performance 2MOPP EN 60601-1-2 Agency Certificate (SIQ) EN 60601-1-2 - Medical electrical equipment - Requirements for Medical electromagnetic disturbances (EMC)

  • Page 21: Physical Dimensions And Weight

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 22. P HYSICAL IMENSIONS AND EIGHT Width 39mm Height 124mm Depth 117mm The DIN rail depth must be added to the unit depth to calculate the total required installation depth. Weight 620g DIN rail Use 35mm DIN rails according to EN 60715 or EN 50022 with a height of 7.5 or 15mm.

  • Page 22: Accessories

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 23. A CCESSORIES 23.1. ZM10.WALL - W ANEL OUNT RACKET This bracket is used to mount the devices on a wall/panel without utilizing the DIN rail. The bracket can be mounted without detaching the DIN rail brackets from the power supply.

  • Page 23: Zm12.Side - Side Mounting Bracket

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 23.2. ZM12.SIDE - S OUNTING RACKET This bracket is used to mount the device sideways with or without utilizing a DIN rail. The two aluminum brackets and the black plastic slider of the unit have to be detached, so that the steel brackets can be mounted. For sideway DIN rail mounting, the removed aluminum brackets and the black plastic slider need to be mounted on the steel bracket.

  • Page 24: Application Notes

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 24. A PPLICATION OTES 24.1. P URRENT APABILITY The unit can deliver peak currents (up to several milliseconds) which are higher than the specified short term currents. This helps to start current demanding loads. Solenoids, contactors and pneumatic modules often have a steady state coil and a pick-up coil.

  • Page 25: Back-Feeding Loads

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 24.2. B FEEDING OADS Loads such as decelerating motors and inductors can feed voltage back to the power supply. This feature is also called return voltage immunity or resistance against Back- E.M.F. (Electro Magnetic Force). This power supply is resistant and does not show malfunctioning when a load feeds back voltage to the power supply.

  • Page 26: Series Operation

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 24.5. S ERIES PERATION Do not use the power supply in series. The leakage current will be too high to meet the medical requirements. 24.6. P ARALLEL SE TO NCREASE UTPUT OWER Do not use the power supply in parallel.

  • Page 27: Operation On Two Phases

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 24.10. O PERATION ON HASES The power supply can also be used on two-phases of a three-phase-system. Such a P ower S upply phase-to-phase connection is allowed as long as the supplying voltage is below 240V +10% 24.11.

  • Page 28: Mounting Orientations

    CP10.241-M1 24V, 10A, S CP-Series INGLE HASE NPUT 24.12. M OUNTING RIENTATIONS Mounting orientations other than all terminals on the bottom require a reduction in continuous output power or a limitation in the maximum allowed ambient temperature. The amount of reduction influences the lifetime expectancy of the power supply. Therefore, two different derating curves for continuous operation can be found below: Curve A1 Recommended output current.
