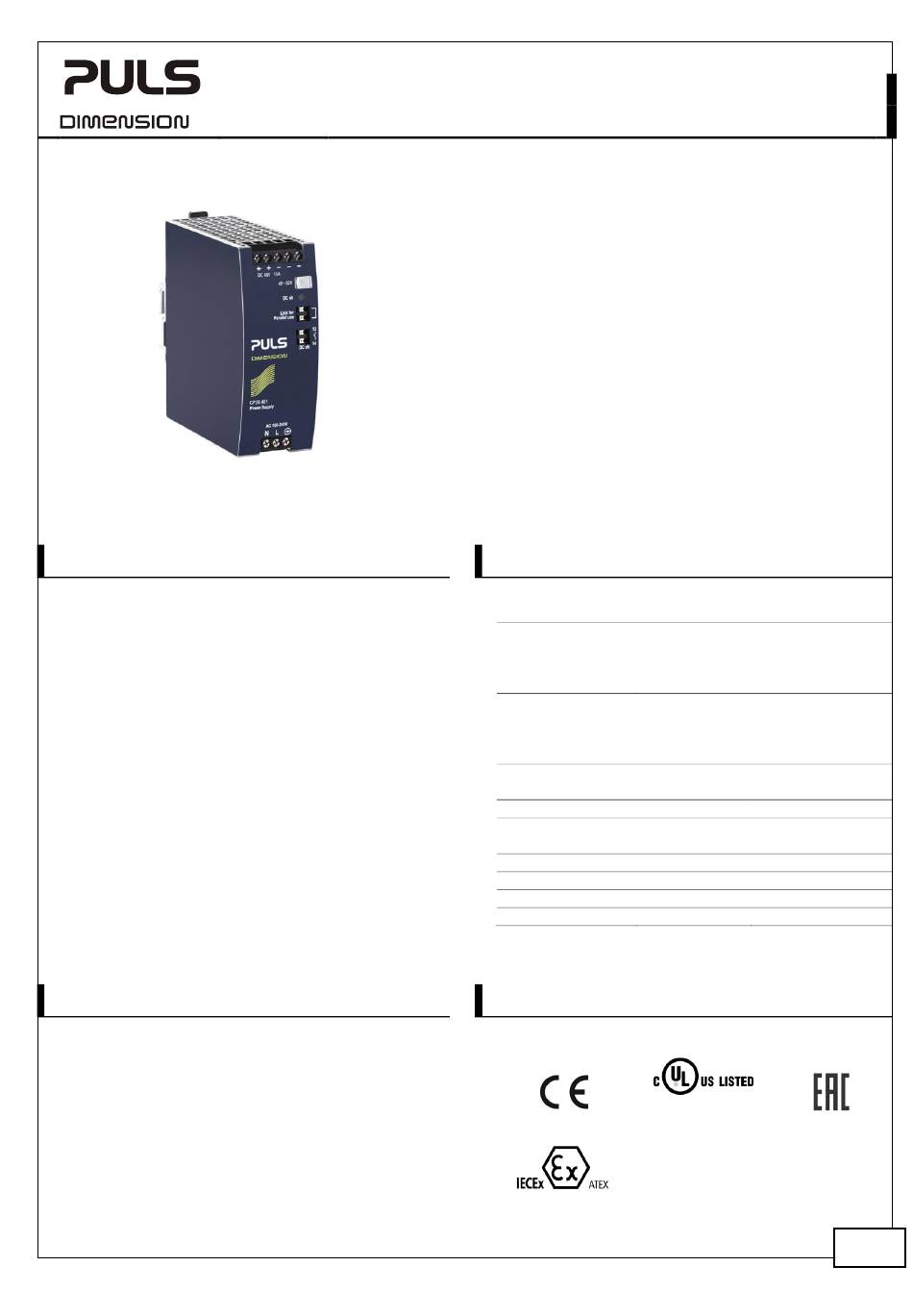

Puls Dimension CP Series User Manual

CP-Series
P D
RODUCT ESCRIPTION

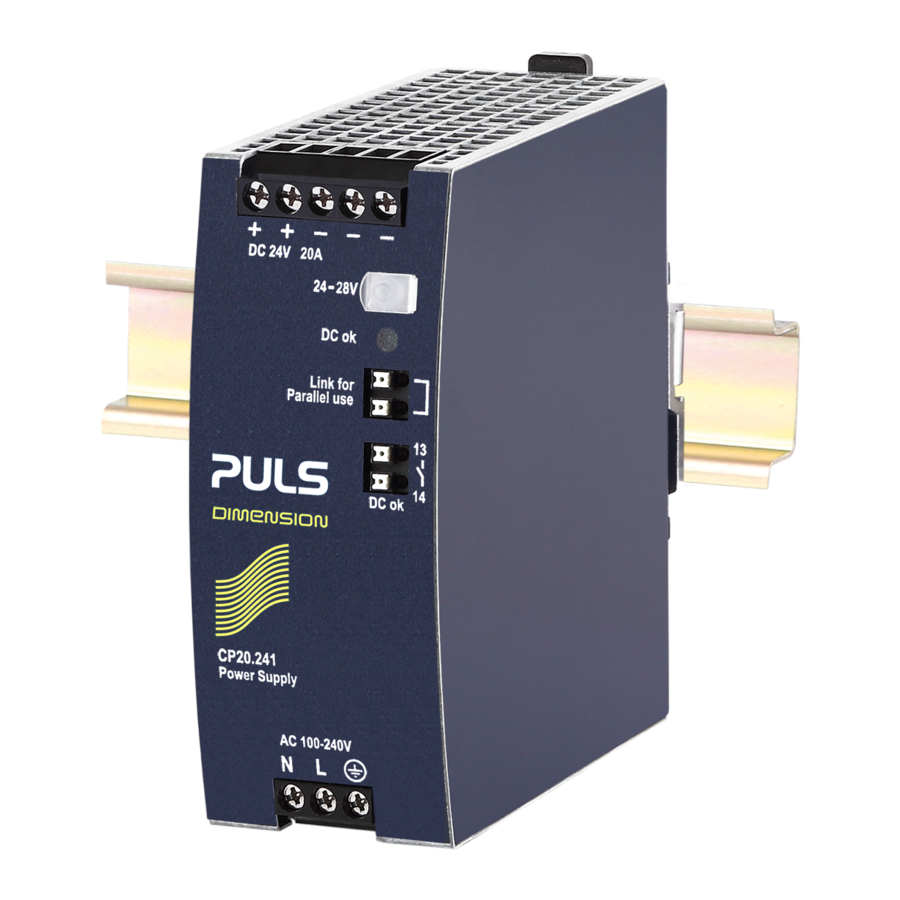

The Dimension CP-Series are cost optimized power supplies
without compromising quality, reliability and performance. The
most outstanding features of CP20.481 are the high efficiency,
electronic inrush current limitation, active PFC, wide operational
temperature range. The small size is achieved by a synchronous
rectification, LLC technology and by many further technological
design details.
Products of the CP series come with essential functions. The
CP20.481 has a power reserve of 20% included, which may even
be used continuously at temperatures up to +45°C. Additionally,
the device can deliver about 3 times the nominal output current
for 12ms which helps to trip fuses on faulty output branches.
High immunity to transients and power surges as well as low
electromagnetic emission, a DC-OK relay contact and a large
international approval package for a variety of applications
makes this unit suitable for nearly every situation.
O N
RDER UMBERS
Power Supply CP20.481
Mechanical Accessory
ZM10.Wall
May 2020 / Rev. 1.1 DS-CP20.481-EN All parameters are specified at 230Vac, 50Hz input voltage, 48V, 10A output load,
25°C ambient and after a 5 minutes run-in time unless otherwise noted.
Wall/Panel mount bracket
www.pulspower.com Phone +49 89 9278 0 Germany
48V, 10A, S
P S
OWER UPPLY
▪ AC 100-240V Wide-range Input
▪ Width only 48mm
▪ Efficiency up to 96.3%
▪ Excellent Partial Load Efficiency
▪ 20% Output Power Reserves
▪ Safe Hiccup
PLUS® Overload Mode
▪ Easy Fuse Breaking – 3 times nominal current for 12ms
▪ Active Power Factor Correction (PFC)
▪ Minimal Inrush Current Surge
▪ Full Power Between -25°C and +60°C
▪ DC-OK Relay Contact
▪ Current Sharing Feature for Parallel Use
▪ 3 Year Warranty
S - D
HORT FORM ATA
Output voltage DC 48V
Adjustment range 48 - 56V
Output current 12.0 - 10.3A
10.0 - 8.6A
7.5 - 6.5A
Derate between +45°C and +70°C
AC Input voltage AC AC 100-240V
Mains frequency 50-60Hz
Input current AC 4.26 / 2.23A
Power factor 0.99 / 0.98
Input voltage DC DC 110-150V
Input current DC 4.64A
AC Inrush current typ. 10.0 / 4.5A
Efficiency 95.0 / 96.3%
Losses 25.1 / 18.4W
Hold-up time typ. 32 / 32ms
Temperature range -25°C to +70°C
Size (WxHxD) 48x124x127mm
Weight 830g / 1.83lb
M A
AIN PPROVALS
For a complete list of approvals see section 19.
CP20.481
P I
INGLE HASE NPUT
Nominal
Factory setting 48.0V
Below +45°C ambient
At +60°C ambient
At +70°C ambient
-15%/+10%
±6%
At 120 / 230Vac
At 120 / 230Vac
±20%
At 110Vdc
at 120 / 230Vac
at 120 / 230Vac
at 120 / 230Vac
at 120 / 230Vac
operational
Without DIN-rail
Ind. Cont. Eq.
