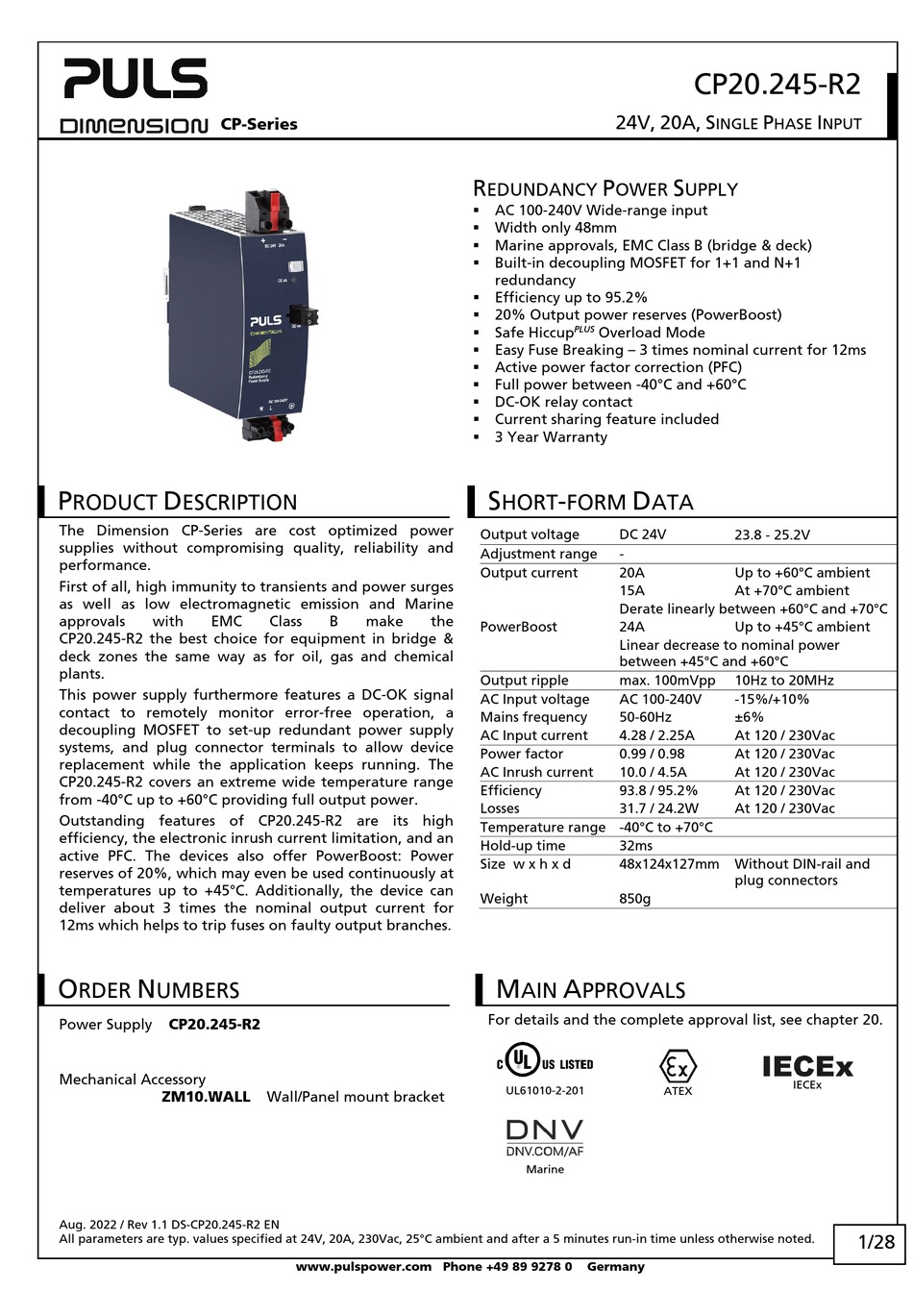

Puls DIMENSION CP Series Manual

CP-Series
P D
RODUCT ESCRIPTION
The Dimension CP-Series are cost optimized power
supplies without compromising quality, reliability and
performance.
First of all, high immunity to transients and power surges
as well as low electromagnetic emission and Marine
approvals with EMC
CP20.245-R2 the best choice for equipment in bridge &
deck zones the same way as for oil, gas and chemical
plants.
This power supply furthermore features a DC-OK signal
contact to remotely monitor error-free operation, a
decoupling MOSFET to set-up redundant power supply
systems, and plug connector terminals to allow device
replacement while the application keeps running. The
CP20.245-R2 covers an extreme wide temperature range
from -40°C up to +60°C providing full output power.
Outstanding features of CP20.245-R2 are its high
efficiency, the electronic inrush current limitation, and an
active PFC. The devices also offer PowerBoost: Power
reserves of 20%, which may even be used continuously at
temperatures up to +45°C. Additionally, the device can
deliver about 3 times the nominal output current for
12ms which helps to trip fuses on faulty output branches.
O N
RDER UMBERS

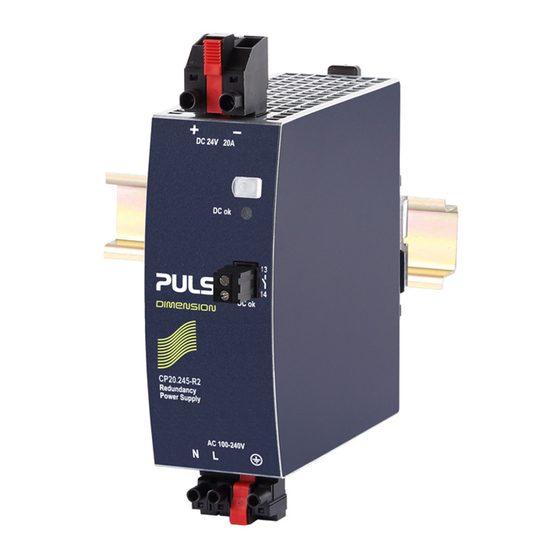

Power Supply CP20.245-R2
Mechanical Accessory
ZM10.WALL
Aug. 2022 / Rev 1.1 DS-CP20.245-R2 EN
All parameters are typ. values specified at 24V, 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
Class B make the
Wall/Panel mount bracket
www.pulspower.com Phone +49 89 9278 0
24V, 20A, S
R P
EDUNDANCY OWER
 AC 100-240V Wide-range input
 Width only 48mm
 Marine approvals, EMC Class B (bridge & deck)
 Built-in decoupling MOSFET for 1+1 and N+1
redundancy
 Efficiency up to 95.2%
 20% Output power reserves (PowerBoost)
 Safe Hiccup Overload Mode
PLUS
 Easy Fuse Breaking – 3 times nominal current for 12ms
 Active power factor correction (PFC)
 Full power between -40°C and +60°C
 DC-OK relay contact
 Current sharing feature included
 3 Year Warranty
S - D
HORT FORM
Output voltage DC 24V
Adjustment range -
Output current 20A
15A
Derate linearly between +60°C and +70°C
PowerBoost 24A
Linear decrease to nominal power
between +45°C and +60°C
Output ripple max. 100mVpp
AC Input voltage AC 100-240V
Mains frequency 50-60Hz
AC Input current 4.28 / 2.25A
Power factor 0.99 / 0.98
AC Inrush current 10.0 / 4.5A
Efficiency 93.8 / 95.2%
Losses 31.7 / 24.2W
Temperature range -40°C to +70°C
Hold-up time 32ms
Size w x h x d 48x124x127mm
Weight 850g
M A
AIN PPROVALS
For details and the complete approval list, see chapter 20.
UL61010-2-201
Marine
Germany
CP20.245-R2
P I
INGLE HASE NPUT
S
UPPLY
ATA
23.8 - 25.2V
Up to +60°C ambient
At +70°C ambient
Up to +45°C ambient
10Hz to 20MHz
-15%/+10%
±6%
At 120 / 230Vac
At 120 / 230Vac
At 120 / 230Vac
At 120 / 230Vac
At 120 / 230Vac
Without DIN-rail and
plug connectors
IECEx
ATEX
1/28
