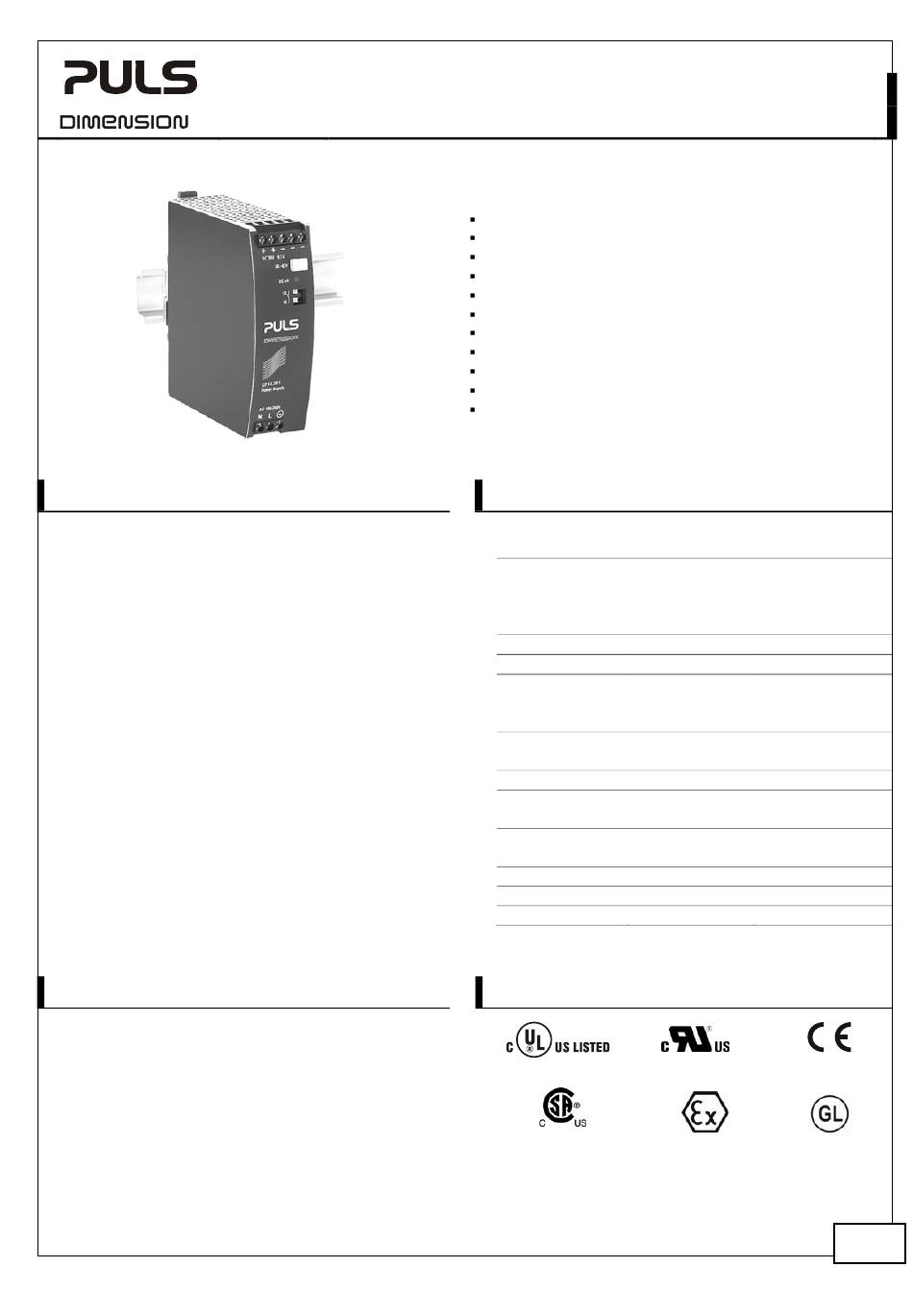

Puls DIMENSION CP10.361 Manual

CP-Series
G D
ENERAL ESCRIPTION
The DIMENSION CP-Series units are high-end power
supplies in a medium price range without compromising
quality, reliability and performance. The CP-Series is
part of the DIMENSION power supply family. The most
outstanding features of
efficiency, advanced inrush current limitation, active PFC
and the wide operational temperature range.
The CP-Series includes all the essential basic functions.
The devices have a power reserve of 20% included,
which may even be used continuously at temperatures
up to +45°C. Additionally, the CP10 can deliver three
times the nominal output current for at least 12ms
which helps to trip fuses on faulty output branches.
High immunity to transients and power surges as well as
low electromagnetic emission, a DC-OK relay contact
and a large international approval package for a variety
of applications makes this unit suitable for nearly every
situation.
O N
RDER UMBERS

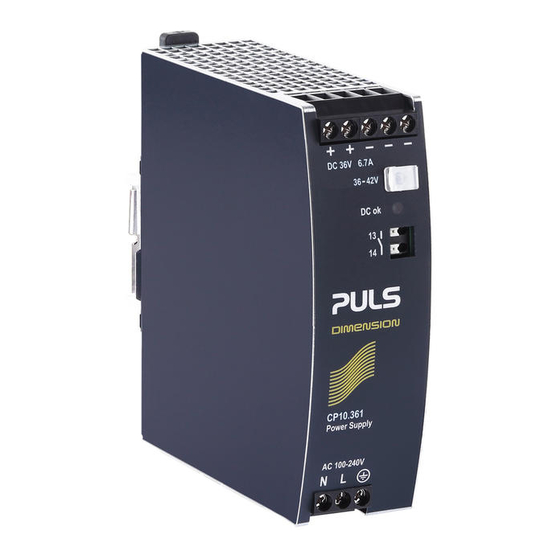

Power Supply CP10.361
Accessory ZM12.SIDE
YR2.DIODE
YR40.242
Nov. 2015 / Rev. 1.0 DS-CP10.361-EN
All parameters are specified at 36V, 6.7A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
CP10.361 are the high
36-42V Unit
Side mount bracket
Diode Redundancy
module
MOSFET Redundancy
module
www.pulspower.com Phone +49 89 9278 0
36V, 6.7A, S
P S
OWER UPPLY
AC 100-240V Wide-range Input
Width only 39mm
Efficiency up to 95.4%, Excellent Partial Load Efficiency
20% Output Power Reserves
Safe Hiccup PLUS Overload Mode
Active Power Factor Correction (PFC)
Minimal Inrush Current Surge
Full Power Between -25°C and +60°C
DC-OK Relay Contact
Meets ITE, ATEX, Class I Div2 and SEMI F47 Requirements
3 Year Warranty
S - D
HORT FORM
Output voltage DC 36V
Adjustment range 36 – 42V
Output current 6.7A
8.0A
5.7A
6.9A
Output power 240W / 288W
Output ripple < 50mVpp
AC Input voltage AC 100-240V
Mains frequency 50-60Hz
AC Input current 2.16 / 1.13A
Power factor 0.99 / 0.97
AC Inrush current 6 / 9A pk
DC Input DC 110-150V
Efficiency 93.8 / 95.4%
Losses 15.9 / 11.6W
Temp. range -25°C to +70°C
Derating 6W/°C
Hold-up time 38 / 38ms
Dimensions 39x124x117mm
Weight 600g / 1.3lb
M
ARKINGS
IND. CONT. EQ.
UL 508
IECEx
Class I Div 2
II 3G Ex nA nC II T4 Gc
planned
Germany
CP10.361
P I
INGLE HASE NPUT
ATA
at 36V, amb <60°C
at 36V, amb <45°C
at 42V, amb <60°C
at 42V, amb <45°C
at <60°C / <45°C
20Hz to 20MHz
-15%/ +10%
±6%
at 120 / 230Vac
at 120 / 230Vac
at 40°C 120/230Vac
±20%
at 120 / 230Vac
at 120 / 230Vac
operational
+60 to +70°C
at 120 / 230Vac
WxHxD
UL 60950-1
EMC, LVD, ATEX
ATEX
Marine.planned
