ASSEMBLING YOUR INFINEA X

iPhone and iPod Installation

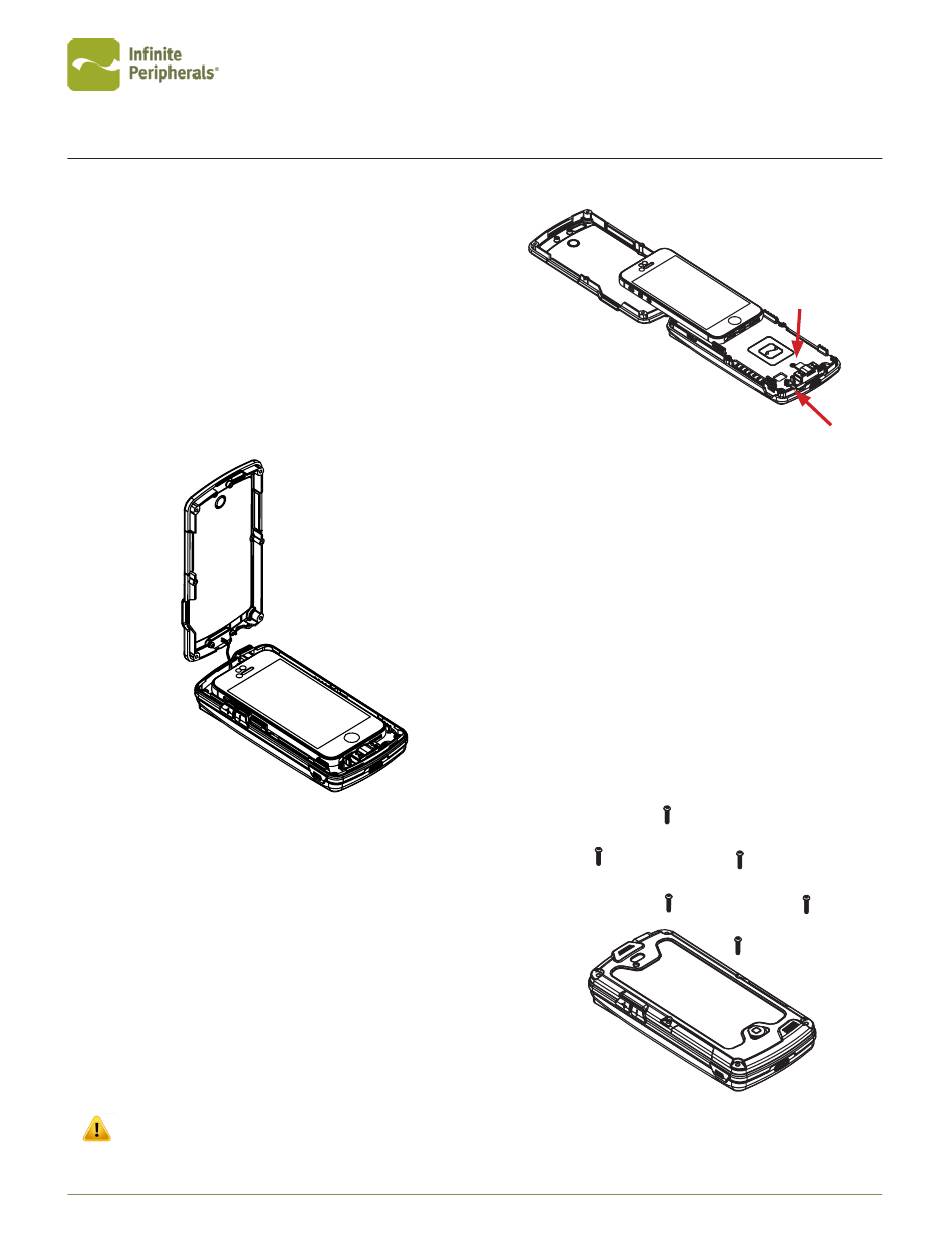

1. Open the Infinea X by loosening the torx screws
and gently flipping open the top cover. Slide the
iOS product* onto the Lightning Connector and
audio jack until it clicks into place.
Note: *Infinea X is molded specifically to iPod touch
5th and 6th generation and iPhone 5, 5s, and SE.
iOS devices are not interchangeable.
3. Secure the cover by inserting (6) torx screws. Do
not over tighten screws.
Take care that the rubber bumper is properly aligned between the top and bottom covers. Failure to
do so will compromise the liquid protection features of the Infinea X.
Infinea X User Manual
UM-00001 Version: C
2. Close the top cover, being careful not
to pinch the wires, while maintaining
the position of the protective rubber
bumper.
Lightning™ Connector
Audio Jack
