QUICK START GUIDE

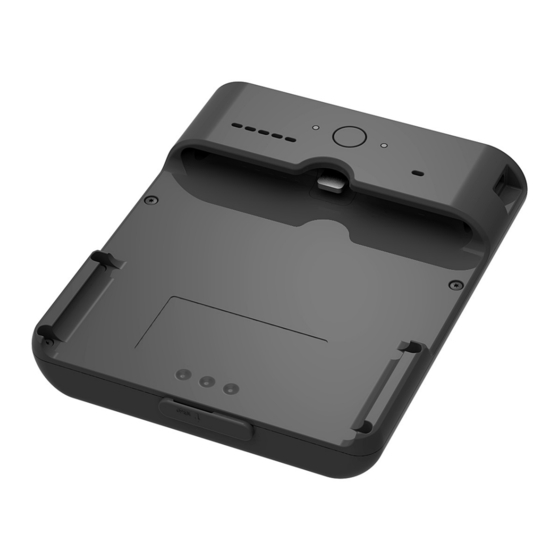

Infinea® Tab M
For iPhone® 6/6+/7+/8+
Connect to Your iOS device
1. Align the Home button on your iOS device with the half circle on the
Infinea Tab M.
2. Gently slide the Infinea Tab M onto the Lightning™ connector.
3. Ensure the iOS device is seated firmly.
Charge the Infinea Tab M
Before first use, ensure the battery is charged fully.
• Connect the mini USB charging cable into the USB port on the side of
the unit.
Caution:
• Use only approved/recommended 5V, 2.1 amp DC adapters to charge
the iOS device and Infinea Tab M together.
• Failure to do so may result in problems charging the unit and/or
potentially damage the Infinea Tab M and/or iOS device.
• Do not force the plug into the connector when connecting the mini
USB charging cable as it may damage the connector.
Battery LED Status
LED Description
Blue Slow flashing—no active connection with the iOS application.
Fast flashing—active connection with the iOS application.
Green Flashing —battery is charging.
Solid (no flashing)—battery is charged fully.
Barcode Scanner
1. Activate the scanner by pressing the Scan button.
2. Position the scan head near the center of the barcode.
3. Ensure the pointer extends outside the edges of the barcode.
4. Slowly pull back the unit increasing the distance between the barcode
and scan head until the scanner reads the entire barcode.
