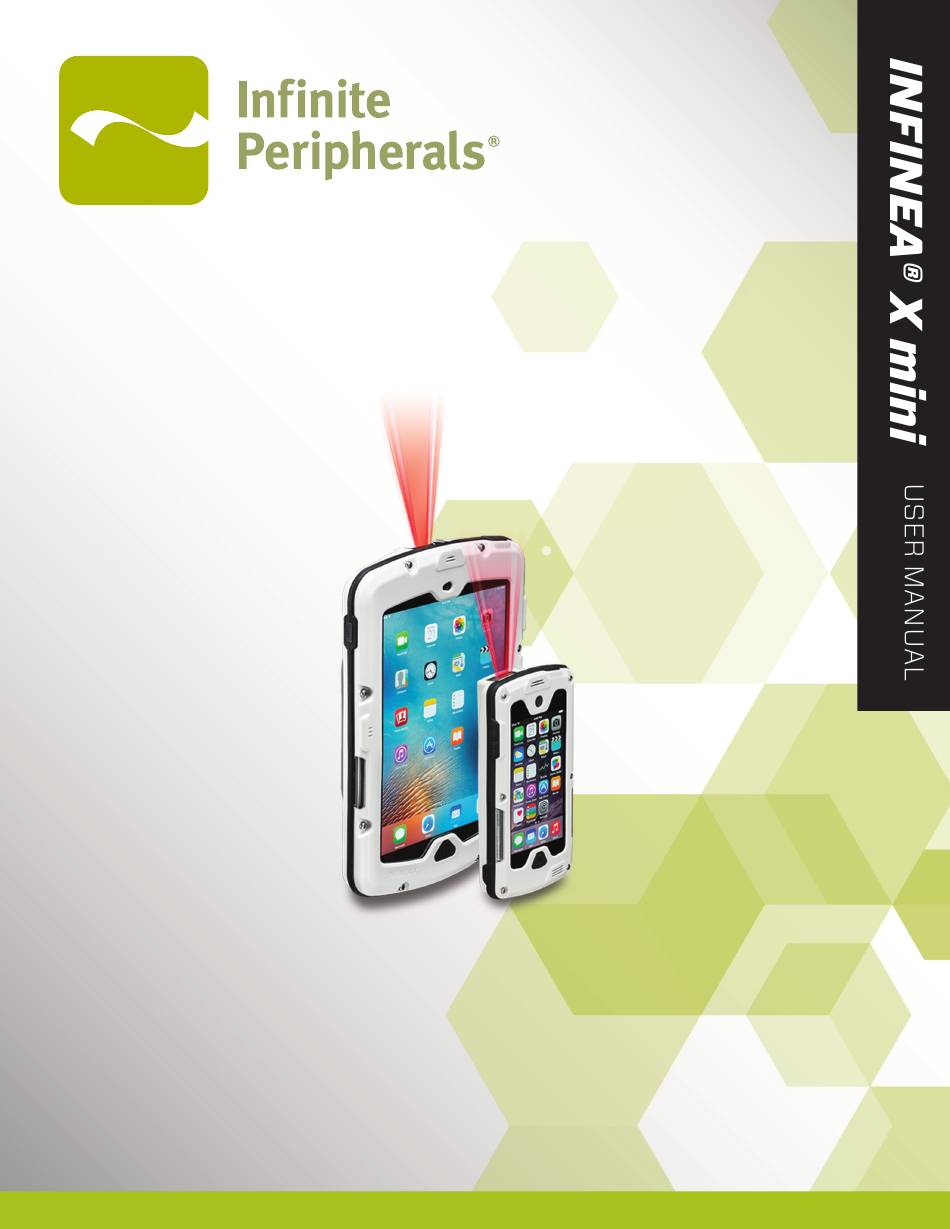

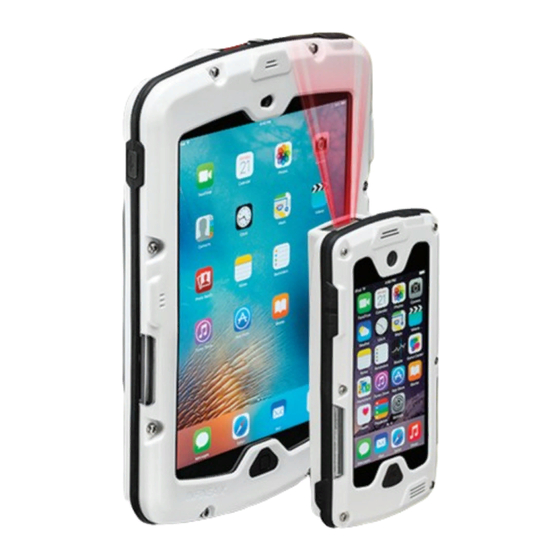

- Page 1 INFINEA X mini ® Infinea® X Mini User Manual Page 1 of 1 UM-00013 Rev B...
-
Page 2: Contact Information
CONTACT INFORMATION Mobility Sales/ Infinite Peripherals, Inc. Technical Support Center: 17681 Mitchell N. Irvine, CA 92614 Toll Free: (866) 278-7860 Office: (949) 222-0300 Headquarters/Main Warehouse Infinite Peripherals, Inc. 2312 Touhy Ave. Elk Grove Village, IL 60007 Toll Free: (800) 278-7860... -
Page 3: Legal Notice
• iPad mini™ 2 TRADEMARK CREDITS Infinite Peripherals, Mobilize Your Enterprise, Linea Pro, Infinea, Infinea Tab and Infinea Omni are trademarks of Infinite Peripherals, Inc. All other trademarks are the property of their respective owners. Infinea® X Mini User Manual... -
Page 4: Table Of Contents
DEVELOPING APPLICATIONS FOR YOUR INFINEA X Mini ..................9 PROGRAMMABLE OPTIONS ..............................9 INFINEA X mini PRODUCT OVERVIEW .........................10 ..................Infinea X mini Front View for iPad mini 2 and iPad mini 3 ................................Figure 1: Front ......................... Infinea X mini Front View for iPad mini 4 .............................. - Page 5 ............................Barcode Scanner—2D Barcodes ..........................Figure 11: 2D Barcode Scanning ..............................RFID TAG/CARD READER ......................... Figure 12: Contactless Card Reader SYNCING YOUR INFINEA X Mini ............................23 ..............................Figure 13: iOS Syncing TROUBLESHOOTING ................................24 ..............................Troubleshooting—General ..........................Troubleshooting—Barcode Scanner TECHNICAL DATA ..................................
-
Page 6: Box Contents
Notify your account executive or contact Infinite Peripherals technical support at support@ipcmobile.com. • Ensure the battery is fully charged prior to initial use. Your Infinea X mini includes these items: *Infinea X Mini (1) Charging Cup (1) *Standard Battery (1) -
Page 7: Accessories
INFINEA X mini FEATURES The Infinea X mini allows you to scan barcodes into an iPad mini. Before using the Infinea X mini, the battery should be fully charged. The following helps you get your Infinea X mini ready for use. -
Page 8: Getting Started
Purpose Additional Information See manual section: INSTALLING THE INFINEA X Install battery The Infinea X Mini battery is shipped Mini BATTERY PACK with approximately 50% of full charge capacity and should be fully charged See manual section: before initial use. -
Page 9: Developing Applications For Your Infinea X Mini
DEVELOPING APPLICATIONS FOR YOUR INFINEA X Mini Software is not provided with your Infinea X Mini. Please contact your reseller or Infinite Peripherals for Third Party software solutions. Integrating the Infinea X Mini with your iOS application requires the use of the Infinite Peripherals Universal SDK. -
Page 10: Infinea X Mini Product Overview
INFINEA X mini PRODUCT OVERVIEW Infinea X mini Front View for iPad mini 2 and iPad mini 3 Torx Torx Front Screw Screw Speaker Volume Buttons Torx Screw Torx Screw Front Speaker Front Speaker Notification LEDs Notification LEDs Torx Screw... -
Page 11: Infinea X Mini Front View For Ipad Mini 4
Infinea X mini Front View for iPad mini 4 Torx Torx Front Screw Screw Speaker Ambient Ambient Light Sensor Light Sensor Volume Buttons Torx Screw Torx Screw Front Speaker Front Speaker Notification LEDs Notification LEDs Torx Screw Torx Screw Home... -
Page 12: Infinea X Mini Side View
Infinea X mini Side View Volume Buttons Notification LEDs Scan Buttons Figure 2: Right USB Port Notification LEDs Scan Buttons Figure 3 Left Infinea® X Mini User Manual Page 12 of 31 UM-00013 Rev B... -
Page 13: Infinea X Mini Top & Bottom View
Infinea X mini Top & Bottom View Barcode Scanner iOS Power Button Figure 4: Top Charging Contacts Battery Status Speaker Toggle Figure 5: Bottom Infinea® X Mini User Manual Page 13 of 31 UM-00013 Rev B... -
Page 14: Infinea X Mini Back View
Infinea X mini Back View Strap Latch RFID iOS Camera Battery Compartment Battery Latch Scan Buttons Scan Buttons Rear Speaker Rear Speaker Strap Latch Figure 6: Back Infinea® X Mini User Manual Page 14 of 31 UM-00013 Rev B... -
Page 15: Assembling Your Infinea X Mini
Secure the cover by tightening (8) torx screws. Infinea X Mini is molded specifically to the iPad mini 2, 3 and 4. iOS devices are not interchangeable. Do not pull on the audio jack cable with excessive force or damage the wires connecting the top and bottom covers. -
Page 16: Installing The Hand Strap
Installing the Hand Strap Place the Infinea X mini face down and insert tail end of the hand strap up through the bottom of the metal strap latch located at the top of the device. If installed properly, the end of the strap should exit through the top of the latch and the Velcro side of the tail should be face down. -
Page 17: Charging Your Infinea X Mini
Standard and Extended Battery Installation The Infinea X mini is designed to support Standard and Extended external swappable battery packs. The swappable battery pack design reduces down time of the Infinea X Mini. Follow the steps below to install or replace the battery pack. -
Page 18: Infinea X Mini Charging Stations
Figure 8: Infinea X Battery Charger (10-Unit) This battery charger is intended for use in charging only Infinite Peripherals Infinea X and Infinea X Mini Standard and Extended battery packs. Do not use this battery charger for any other battery types. -
Page 19: Status And Operational Modes
STATUS AND OPERATIONAL MODES Programmable LED Status The Infinea X Mini provides application developers with programmable, multi-color LEDs, as shown in the figure below. Supported Colors: • • Blue • Green • Orange For information on programming the Infinea X Mini LEDs, refer to the SDK documentation. -
Page 20: Using Your Infinea X Mini
USING YOUR INFINEA X mini The Infinea X Mini 2D model uses a scan engine that supports two-dimensional (2D) and one dimensional (1D) barcode symbols. The effective reading distance of the barcode reader varies depending on the barcode size. Barcode Scanner—1D Barcodes To scan a 1D barcode: Activate the scanner by pressing the Scan button. -
Page 21: Barcode Scanner-2D Barcodes
Barcode Scanner—2D Barcodes The Infinea X mini 2D model uses a scan engine that supports two-dimensional (2D). The effective reading distance of the barcode reader varies depending on the barcode size. To scan a 2D barcode: Press the Scan button to activate the scanner. -
Page 22: Rfid Tag/Card Reader
Place the RFID tag/card over the RFID label on the transmitter/receiver, keeping the face of the tag/card flat with the receiver/transmitter as close as possible. The data will be read and sent from the Infinea X Mini contactless reader to the iOS Device. Figure 12: Contactless Card Reader Depending on the type of RFID tags/cards being used, it may be necessary for tags/cards to make direct contact with the surface where the RFID receiver/transmitter is located for proper reading/writing. -
Page 23: Syncing Your Infinea X Mini
The Infinea X Mini should now be in Sync mode. To disable Sync mode, exit iTunes and unplug the Charging Cup from the Infinea X Mini. Be sure to verify that the Pass-thru-Sync option is enabled in the SDK prior to syncing your device. -
Page 24: Troubleshooting
• AC adapter may not meet charging requirements. Troubleshooting—Barcode Scanner If the Infinea X mini is not scanning barcodes properly, refer to the table below for possible causes: Problem Possible Cause • Infinea X mini not powered on. - Page 25 • Software not configured properly. See Technical Data for additional information. If you are having problems with your Infinea X Mini which are not addressed by the table above, contact technical support at support@ipcmobile.com. Infinea® X Mini User Manual Page 25 of 31...
-
Page 26: Technical Data
TECHNICAL DATA Part Number: IX-I2DBTR-MR-XX IX-I2DBTR-M4-XXX MECHANICAL iPad mini 2 Compatibility iPad mini 4 iPad mini 3 Apple Lightning™ connector Connectivity Pass-through sync via mini USB Weight 498 grams without battery (17.6 oz.) (without iOS device) Dimensions 233mm x 162mm x 31mm (9.2”... - Page 27 5 to 90% RH Temperature: -20°C to +50°C (-4°F - +122°F) Storage Environment Humidity: 5 to 90% RH * Without Battery Sharing enabled on Infinea X mini P/N: IX-I2DBTR-M4-XXX Infinea® X Mini User Manual Page 27 of 31 UM-00013 Rev B...
-
Page 28: Cleaning
CLEANING Precautions The Infinea X mini is certified to meet IP54 Ingress Protection Marking per IEC 60529. Per the IP54 rating, the Infinea X Mini is protected against interference with normal operation of the Infinea X Mini sled caused by dust and splashing liquids. At no time should the Infinea X Mini’s sled be completely immersed in liquid. -
Page 29: Warranty
WARRANTY Infinite Peripherals (IPC) does not warrant, and is not responsible for, any damage to the Infinea X Mini (“Product”), or the assembled iOS device, as a result of liquid or solid particle intrusion into the Product, or damaged caused by dropping the Product with the assembled iOS device. If a material or workmanship defect arises with regard to any IPC product, and a valid claim is received within the Warranty Period, IPC (at IPC’s sole discretion) will:... -
Page 30: Symbols For Use
SYMBOLS FOR USE Symbol Definition Consult Instructions for Use Manufacturer Manufacture Date Caution Warning Note Serial Number Part Number Waste Electrical and Electric Equipment Do Not Autoclave Do Not Incinerate Complies with part 15 of the FCC rules Infinea® X Mini User Manual Page 30 of 31 UM-00013 Rev B... -
Page 31: Federal Communications Commission
FEDERAL COMMUNICATIONS COMMISSION Federal Communications Commission (FCC) Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
