- Page 1 User Manual Linea Pro Rugged ® For iPod touch 5th /6th / 7th Generations ®...
-
Page 2: Legal Notice
Compatible Devices iOS Compatibility iPod touch 5th / 6th / 7th generations Trademarks Infinite Peripherals, Mobilize Your Enterprise, Linea Pro, Infinea Tab, and Infinea Omni are trademarks of Infinite Peripherals, Inc. All other trademarks are the property of their respective owners. -
Page 3: Table Of Contents
User Manual — Linea Pro Rugged for iPod touch Table of Contents Legal Notice Programmable Options Compatible Devices Charging Current Overview Set Charging Features Enable Scan Button Accessories Scan Mode Technical Specifications Pass-Through Sync Physical Dimensions Turn on the Linea Pro Rugged... -
Page 4: Overview

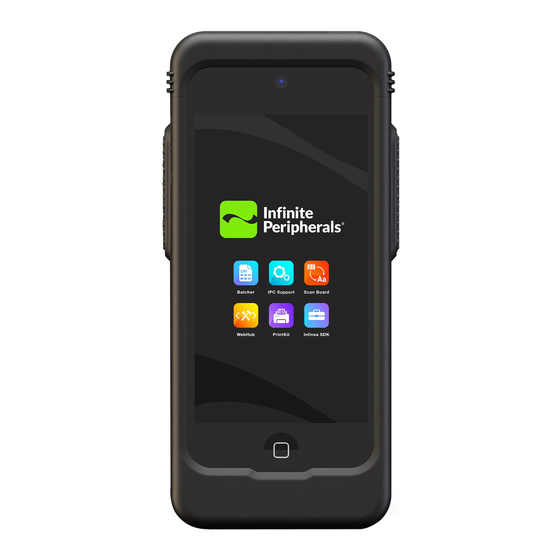

User Manual — Linea Pro Rugged for iPod touch Overview The Linea Pro Rugged is form fitted for an integrated iPod experience for barcode scanning and HF RFID. Features 1D/2D Barcode Scanner HF RFID Supports one-dimensional (1D) and two-dimensional Built-in HF RFID tag/card reader with read/write (2D) barcode symbols, which can be read in any direction capability at 13.56 MHz. - Page 5 User Manual — Linea Pro Rugged for iPod touch Connectivity Connectivity Barcode Types Supported Apple Lightning™ Connector 1D/2D high-speed imagers USB-C Battery Use only original USB-A to USB-C cable for charging Rechargeable Lithium-Polymer battery 3.6V/2400 mAH iPod. Use only UL approved USB adapters. The minimum Precise battery management by Fuel Gauge requirements of USB adapters 5V 2.1A.
-
Page 6: Box Contents
User Manual — Linea Pro Rugged for iPod touch Box Contents Linea Pro Rugged (1) ◊ Before using your Linea Pro Rugged, remove the unit and any included accessories from the shipping cartoon and verify the contents against the packing list. -
Page 7: Product Description
User Manual — Linea Pro Rugged for iPod touch Product Description Barcode Scan Engine Back Cover Right Scan Button USB–C Connection Left Scan Button Volume Control Buttons for iOS Device On/Off Button for iOS Device... - Page 8 User Manual — Linea Pro Rugged for iPod touch Battery Cover Lock/Unlock Lever for Linea Pro Rugged Battery Cover 10. External Connection Features...
-
Page 9: Assembling Your Linea Pro Rugged
Before assembly, ensure asset tags or labels are not applied onto the back of your iOS device. Any stickers on the unit can interfere with the performance of the iOS device and/or the assembly/disassembly with the Linea Pro Rugged. Remove the top cover by loosening the security screw with a Attach your iOS device to the Lightning™... -
Page 10: Charging The Battery
◊ 500mA * Linea Pro Rugged battery is charging — iOS device cannot receive power (0A). * Linea Pro Rugged battery is fully charged — iOS device is provided low current. ◊ 1000mA * Linea Pro Rugged battery is charging — iOS device receives low power. -
Page 11: Programmable Options
Charging current may be set to 500mA (default) or 1000mA. Set Charging The Linea Pro Rugged can charge the iPod using its internal battery by enabling the “setCharging” setting. When the Linea Pro Rugged battery is above 20%, it will then start to charge the iOS device battery. -
Page 12: Turn On The Linea Pro Rugged
Press a scan button a second time to activate the scanner for normal barcode scanner. Note If the Linea Pro Rugged is idling for an extended period of time, the power turns off automatically to preserve the charge on the internal battery pack. When turned off, the unit is in sleep mode immediately. -
Page 13: Replacing The Battery
User Manual — Linea Pro Rugged for iPod touch Replacing the Battery The Linea Pro Rugged includes one 2400Ah battery, which you can replaced, when needed. Note Ensure you use only a new battery with SKU PL-15-110. On the back of the unit, slide the battery latch into the unlocked position, and then pull the battery cover upwards. -
Page 14: Troubleshooting
Ship your equipment back to us using the address provided. scan specific ◊ HF RFID type not supported. tags or ◊ Refer to Technical Specifications for additional cards information. If problems persist with your Linea Pro Rugged, contact a Mobility Expert https://ipcmobile.com/devices/... -
Page 15: Federal Communications Commission
User Manual — Linea Pro Rugged for iPod touch Warranty Infinite Peripherals does not warrant, and is not responsible for, any damage to the Linea Pro Rugged (“Product”) or the assembled iOS device as a result of liquid or solid particle intrusion into the Product, or damaged caused by dropping the Product with the assembled iOS device.
