Document 8K088X03 R3.0
PDR8000 Portable Digital Repeater Deployment Guide

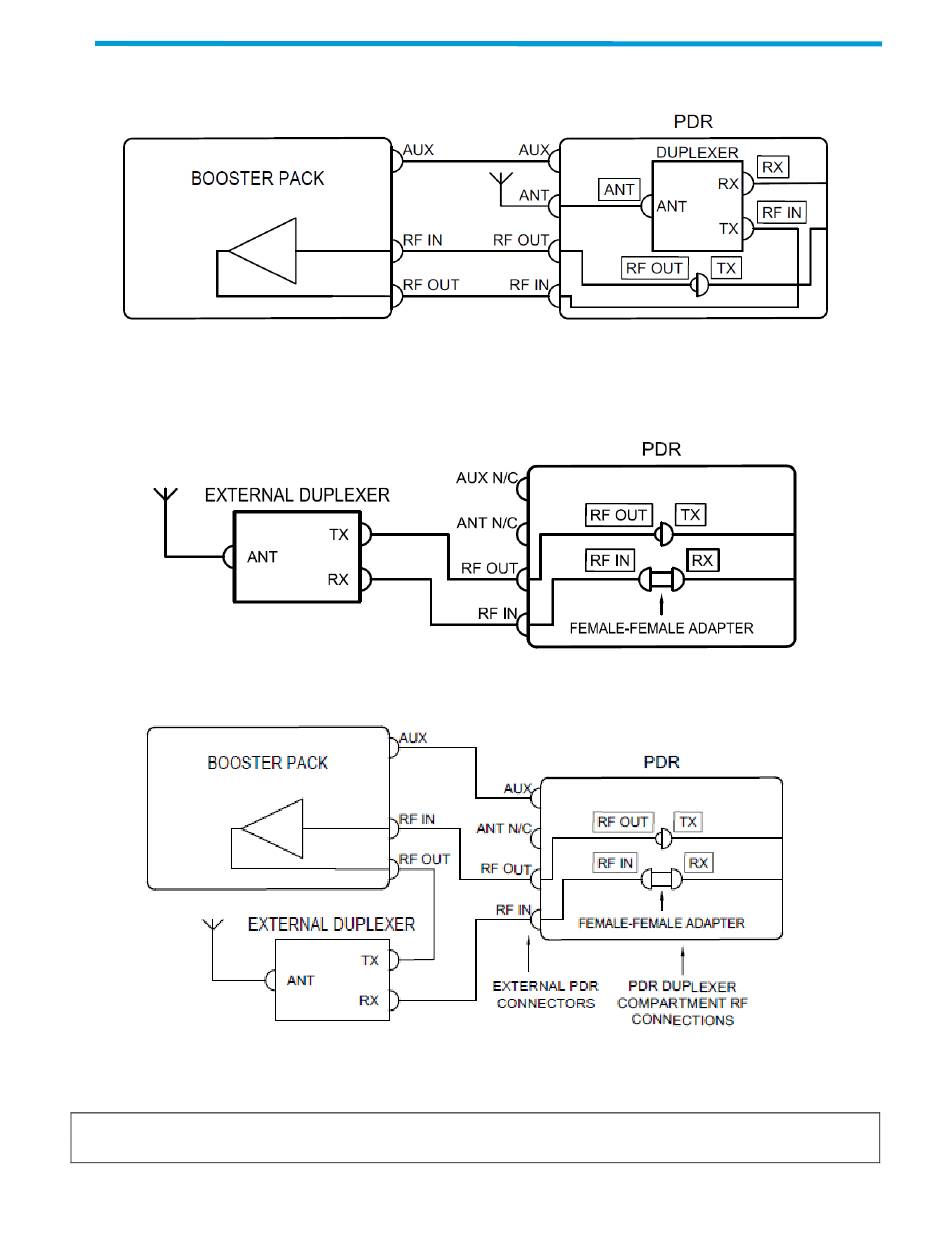

Figure 3 - Internal Duplexer and Booster Pack* Hardware Configuration
Figure 4 - External Duplexer Hardware Configuration
Figure 5 - External Duplexer and Booster Pack* Hardware Configuration
* Booster Pack is not yet released by Futurecom
Note: External Duplexer Cabling supplied by user
