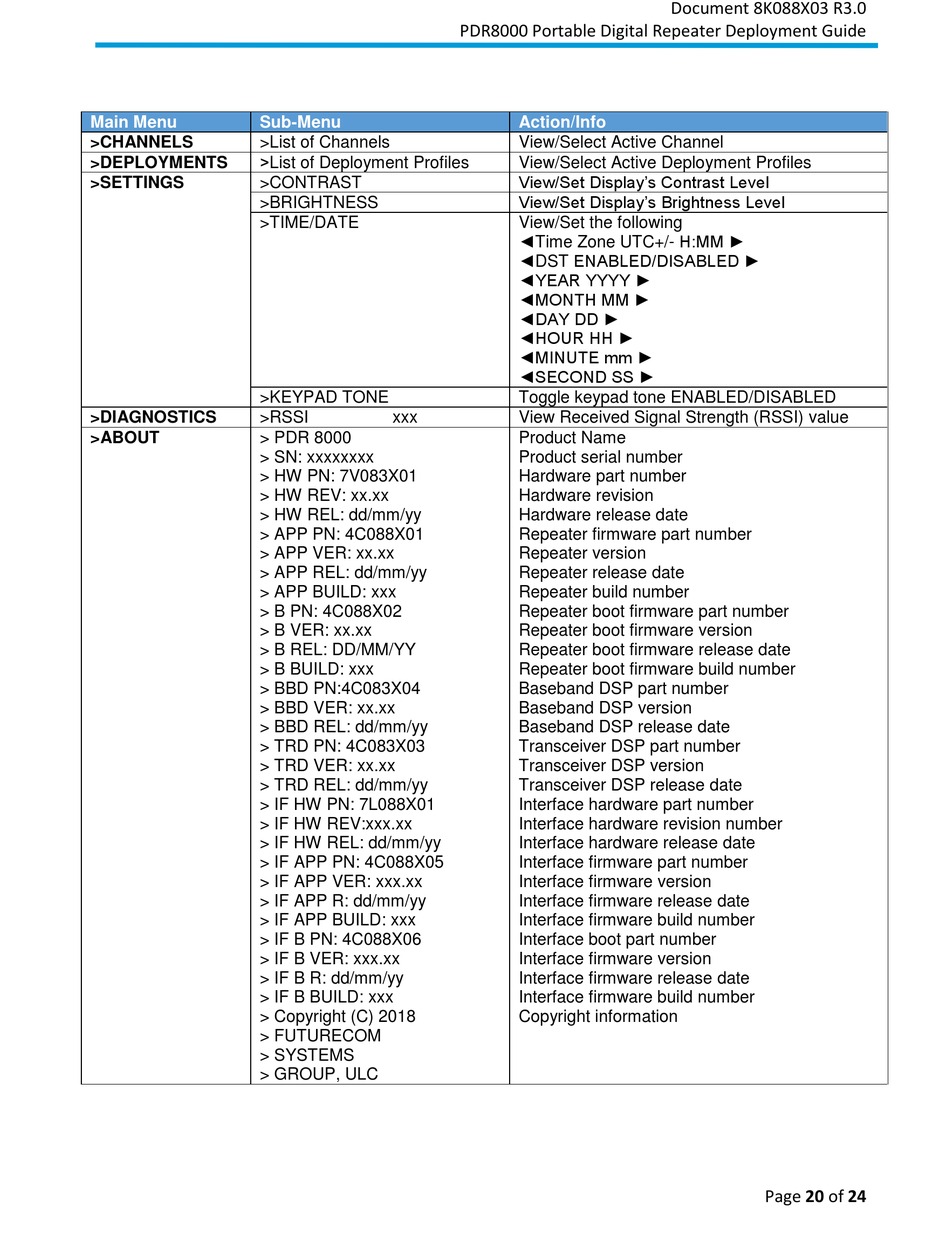

Futurecom PDR8000 Deployment Manual page 20

Main Menu Sub-Menu
>CHANNELS >List of Channels
<List of Deployment Profiles
>DEPLOYMENTS
>SETTINGS >CONTRAST
>BRIGHTNESS
>TIME/DATE
>KEYPAD TONE
>DIAGNOSTICS >RSSI
>ABOUT > PDR 8000
> SN: xxxxxxxx
> HW PN: 7V083X01
> HW REV: xx.xx
> HW REL: dd/mm/yy
> APP PN: 4C088X01
> APP VER: xx.xx
> APP REL: dd/mm/yy
> APP BUILD: xxx
> B PN: 4C088X02
> B VER: xx.xx
> B REL: DD/MM/YY
> B BUILD: xxx
> BBD PN:4C083X04
> BBD VER: xx.xx
> BBD REL: dd/mm/yy
> TRD PN: 4C083X03
> TRD VER: xx.xx
> TRD REL: dd/mm/yy
> IF HW PN: 7L088X01
> IF HW REV:xxx.xx
> IF HW REL: dd/mm/yy
> IF APP PN: 4C088X05
> IF APP VER: xxx.xx
> IF APP R: dd/mm/yy
> IF APP BUILD: xxx
> IF B PN: 4C088X06
> IF B VER: xxx.xx
> IF B R: dd/mm/yy
> IF B BUILD: xxx
> Copyright (C) 2018
> FUTURECOM
> SYSTEMS
> GROUP, ULC
PDR8000 Portable Digital Repeater Deployment Guide
Action/Info
View/Select Active Channel
View/Select Active Deployment Profiles
View/Set Display's Contrast Level
View/Set Display's Brightness Level
View/Set the following
◄Time Zone UTC+/- H:MM ►
◄DST ENABLED/DISABLED ►
◄YEAR YYYY ►
◄MONTH MM ►
◄DAY DD ►
◄HOUR HH ►
◄MINUTE mm ►
◄SECOND SS ►
Toggle keypad tone ENABLED/DISABLED
xxx View Received Signal Strength (RSSI) value
Product Name
Product serial number
Hardware part number
Hardware revision
Hardware release date
Repeater firmware part number
Repeater version
Repeater release date
Repeater build number
Repeater boot firmware part number
Repeater boot firmware version
Repeater boot firmware release date
Repeater boot firmware build number
Baseband DSP part number
Baseband DSP version
Baseband DSP release date
Transceiver DSP part number
Transceiver DSP version
Transceiver DSP release date
Interface hardware part number
Interface hardware revision number
Interface hardware release date
Interface firmware part number
Interface firmware version
Interface firmware release date
Interface firmware build number
Interface boot part number
Interface firmware version
Interface firmware release date
Interface firmware build number
Copyright information
