Introduction; Figure 1 - Internal Duplexer Hardware Configuration; Figure 2 - Simplex Hardware Configuration - Futurecom PDR8000 Deployment Manual

Document 8K088X03 R3.0
PDR8000 Portable Digital Repeater Deployment Guide

Introduction

The PDR8000 is typically a self-contained device but is easily modified to utilize an alternate
duplexer and/or a transmit power Booster Pack* when required. Multiple RF hardware
configurations are supported, using accessible internal and external connection points to enable
the desired configuration. This manual provides installation instructions for each of these
configurations. The figures below are also screened on the back of the removable top panel
inside the PDR8000.

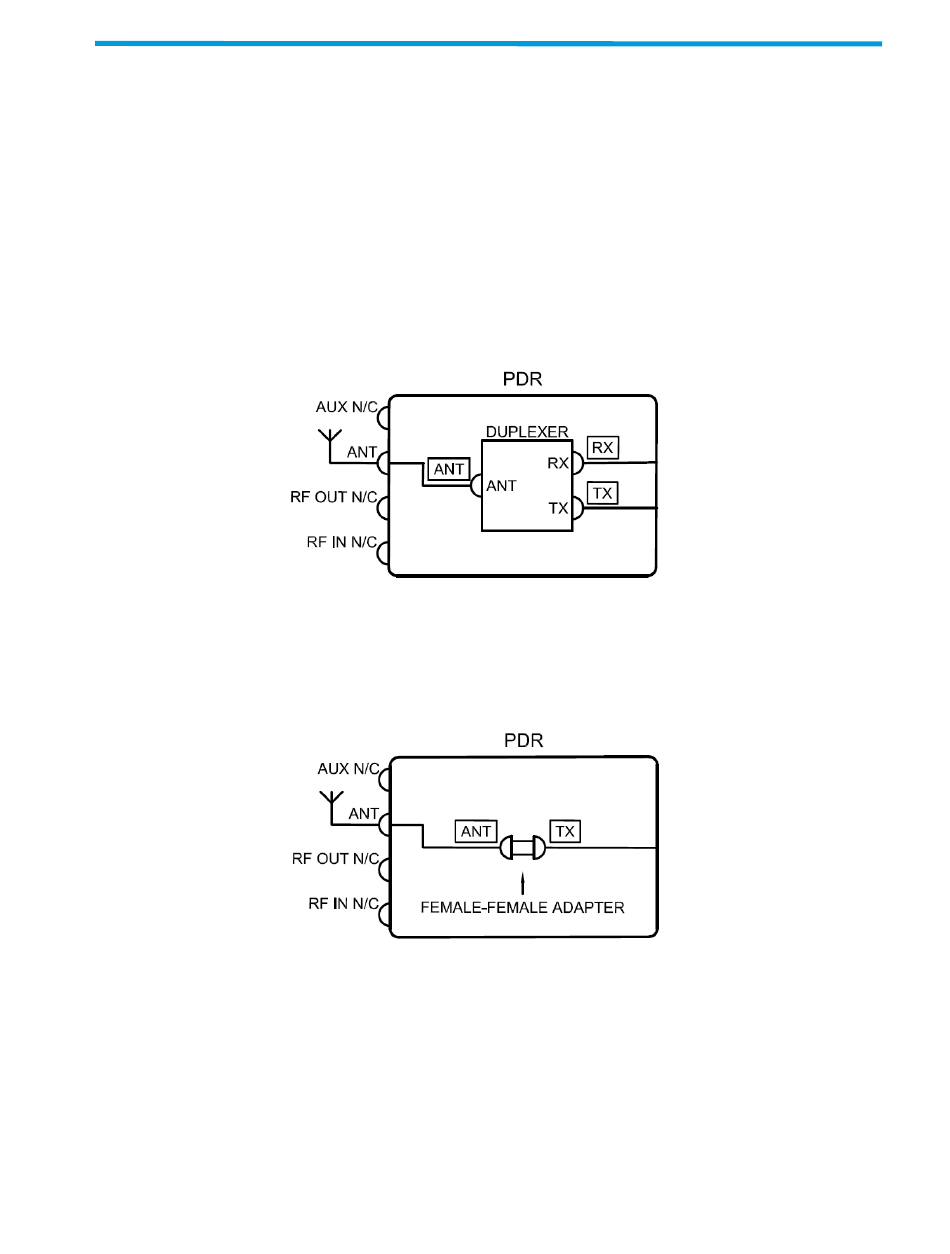

Figure 1 - Internal Duplexer Hardware Configuration

Figure 2 - Simplex Hardware Configuration
