Document 8K088X03 R3.0
PDR8000 Portable Digital Repeater Deployment Guide
Step 5- Power Up Confirmation
If the PDR8000 successfully powers up, the fan will start running and the POWER LED in the
bottom right corner of the LED panel will turn on.

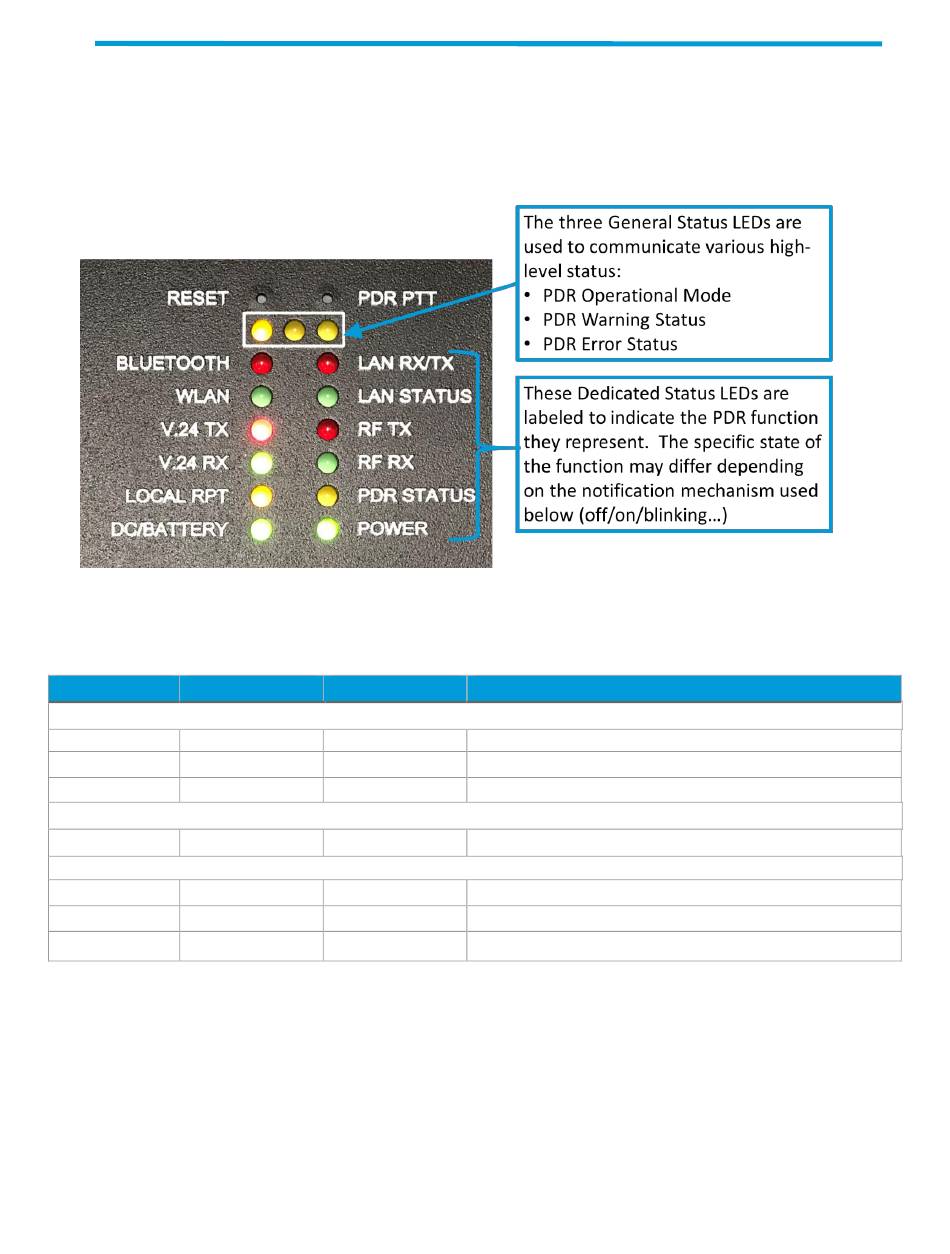

Figure 17 - PDR8000 LED Panel
The following table contains the General Status LED state definitions.
LED 1
LED 2
LED 3
Status Description
PDR Operational Modes
OFF
OFF
OFF
In Normal mode - No errors or warnings
STEADY
In Fallback In-Cabinet Repeat (FBICR) Mode
STEADY
In Service Mode
PDR Error Status
BLINK FAST
Internal Software Image Error
PDR Warning Status
BLINK FAST
Real Time Clock Battery Alarm
BLINK SLOW
Low Transmit Power Alarm
BLINK SLOW
Temperature Alarm
Figure 18 - General LED Status Definitions
Page 15 of 24
