Figure 3 - Internal Duplexer And Booster Pack Hardware Configuration; Figure 4 - External Duplexer Hardware Configuration; Figure 5 - External Duplexer And Booster Pack Hardware Configuration - Futurecom PDR8000 Deployment Manual
Portable digital repeater and booster pack
Hide thumbs
Also See for PDR8000:
- Programming manual (98 pages) ,
- Manual (64 pages) ,
- Deployment manual (24 pages)
Table of Contents
Advertisement
Document 8K088X03 R5.04
PDR8000® Portable Digital Repeater and Booster Pack Deployment Guide

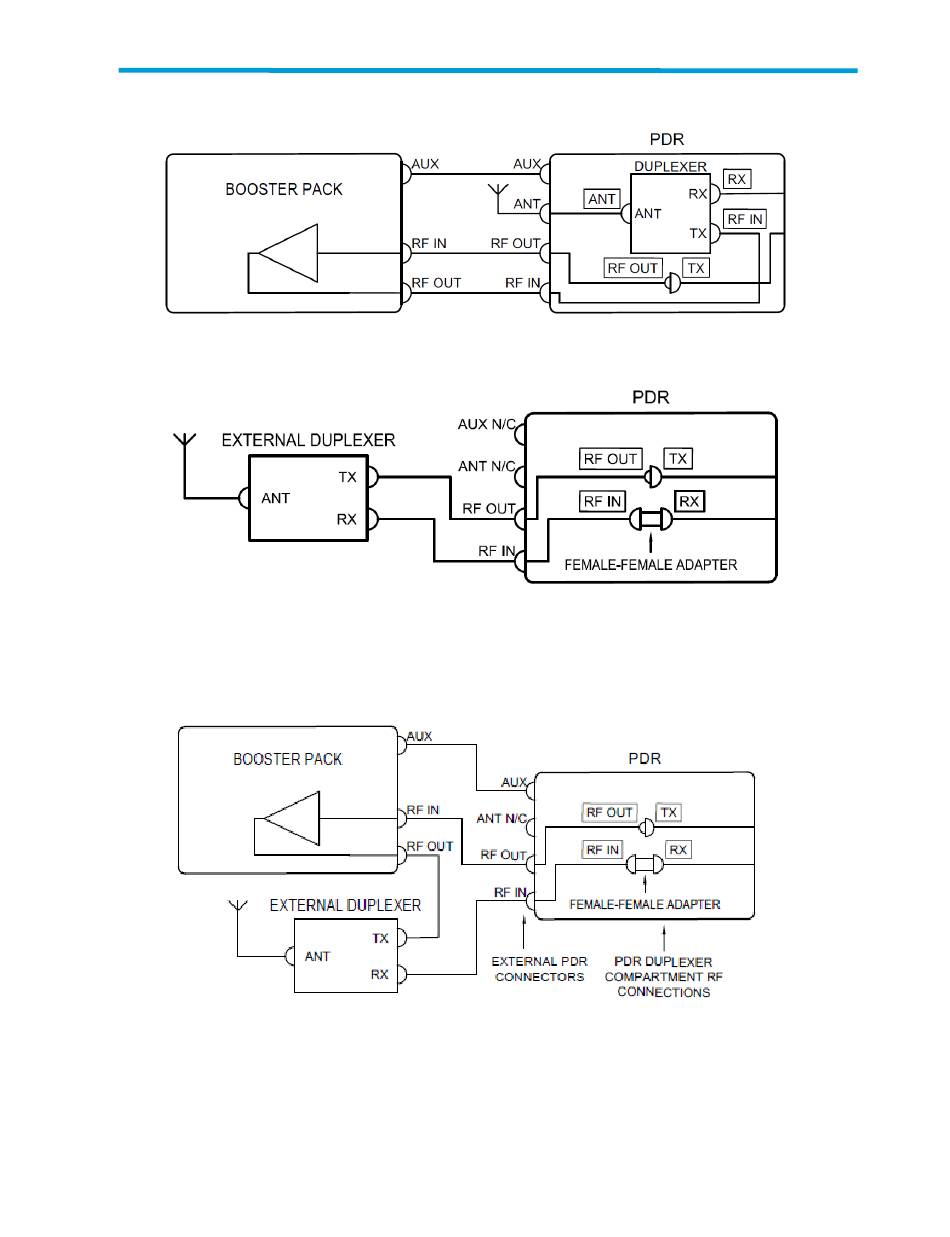

Figure 3 - Internal Duplexer and Booster Pack Hardware Configuration
Figure 4 - External Duplexer Hardware Configuration
Note: External Duplexer Cabling supplied by user
Figure 5 - External Duplexer and Booster Pack Hardware Configuration
Note: External Duplexer Cabling supplied by user
December 2023
Page 6 of 35
