Document 8K088X03 R3.0
PDR8000 Portable Digital Repeater Deployment Guide

Step 2- External Connections

Based on the required RF hardware configuration, proceed with the external connections as per
the instructions below. To access the external connections, pull the release latch and remove
the side panel. When replacing the side panel, hook left side of panel in place first and then
push the right side of panel in place. A click will be heard when it locks in place.

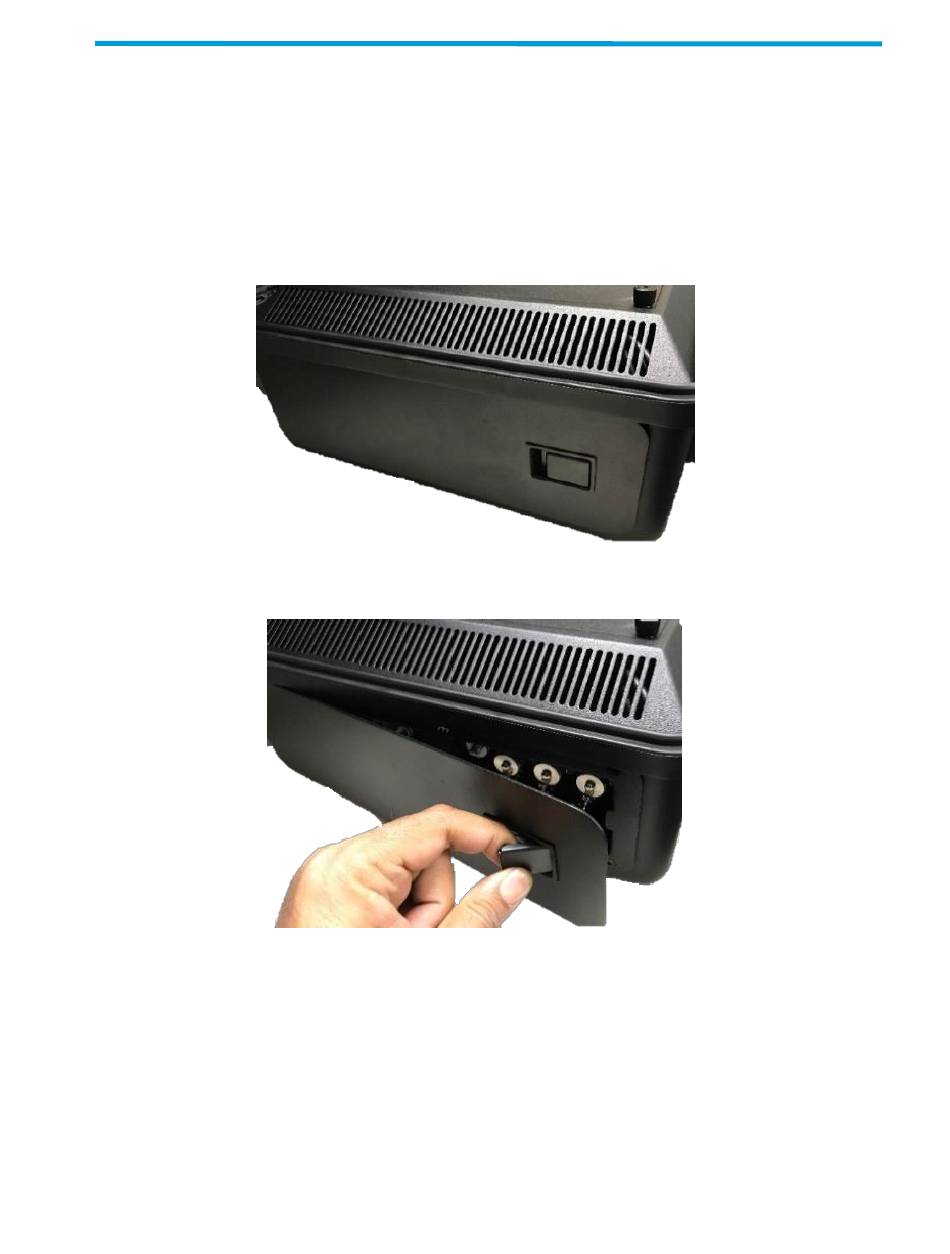

Figure 8 - PDR8000 Side Panel Cover

Figure 9 - Pull Release Latch

Page 9 of 24
