Step 4- Power

ATTENTION!
Please read the RF Safety Booklet Before proceeding with this step.
Only proceed with this step once all the other connections are complete.
DC Power:
•
To access the end connector, unscrew side panel cover as shown in Figure 9 - Pull
Release Latch.
•
Line up the red dots on the end connector and the cable and push DC power cable into
place as shown in Figure 12 and Figure 13.
•
Connect the other end of the DC power cable to the DC power supply.
•
To remove the DC cable, pull back on the cable connector sleeve and then pull out by
connector body as shown in Figure 14

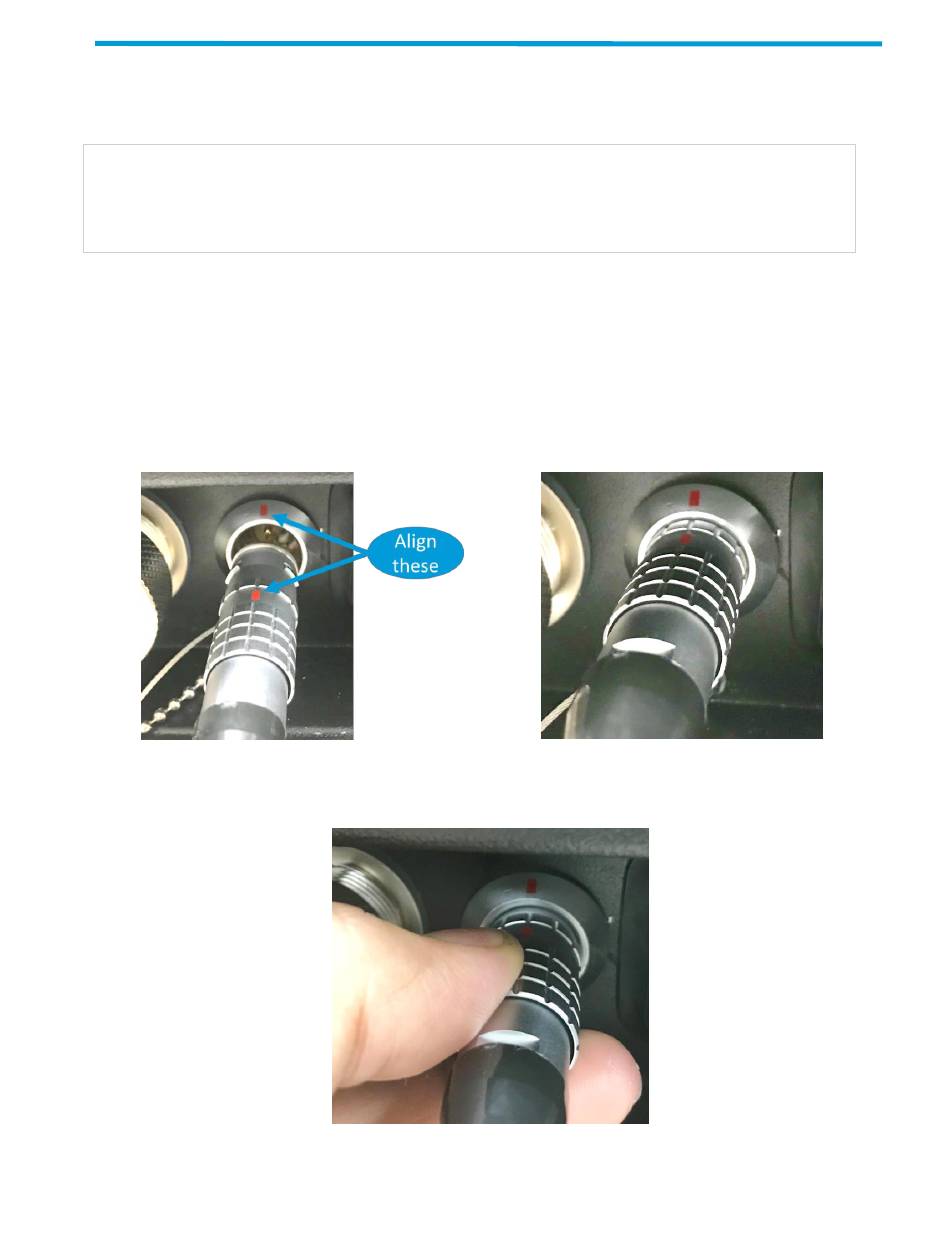

Figure 12 - DC connector alignment

PDR8000 Portable Digital Repeater Deployment Guide

Figure 14 - Pull to unplug DC Power

Document 8K088X03 R3.0

Figure 13 - DC Connector plugged in
