Figure 10: External Connectors; Figure 11 - Pdr8000 External Connectors' Specifications - Futurecom PDR8000 Deployment Manual

Conne Label
ctor
1 V.24
2** LAN
3 13V/7A DC
4 100-240V/4A
AC
5 AUX
6 ANTENNA
7 RF OUT
8 RF IN
9

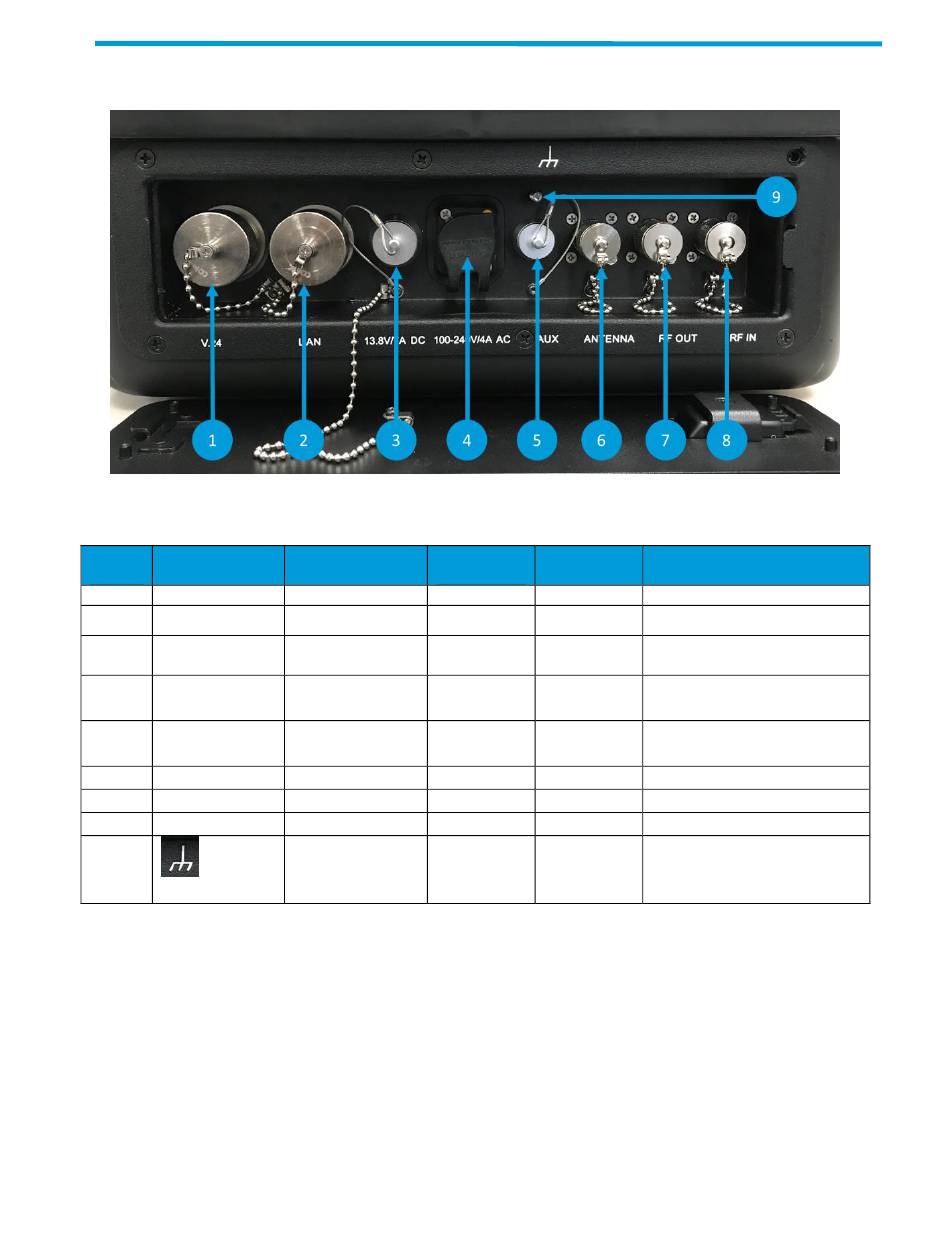

Figure 11 - PDR8000 External Connectors' Specifications

Internal Duplexer
•
ANTENNA cable is connected ANTENNA connector
•
AUX, RF OUT, and RF IN are not connected
Simplex
•
ANTENNA cable is connected ANTENNA connector
•
AUX, RF OUT, and RF IN are not connected
PDR8000 Portable Digital Repeater Deployment Guide

Figure 10: External Connectors

Type Manufactu
rer
RJ-45 CONEC
RJ-45 CONEC
DC Power Input LEMO
AC Power Input NEUTRIK
Circular LEMO
Receptacle
N Female N/A
N Female N/A
N Female N/A
Ground Lug 10- NA
32x12.7mm
(0.5")
Document 8K088X03 R3.0
Model Ref* Open/Close Mechanism
17-111574 Screw/Unscrew Dust Cap
17-111574 Screw / Unscrew Dust Cap
EGL.2K.30 Push Pull Dust Cap
2.CLA
NAC3MPX Push Pull Sealing Cover
EGG.1K.30 Push Pull Dust Cap
6.CLL
N/A Screw/Unscrew Dust Cap
N/A Screw/Unscrew Dust Cap
N/A Screw/Unscrew Dust Cap
N/A N/A
Page 10 of 24
