Document 8K088X03 R3.0
PDR8000 Portable Digital Repeater Deployment Guide
Step 6- Keypad/Display
PDR8000 is equipped with an LCD display, providing a means to access and control several aspects of the
unit. Access to various functions is available utilizing an on-screen menu, and a set of navigation
buttons.

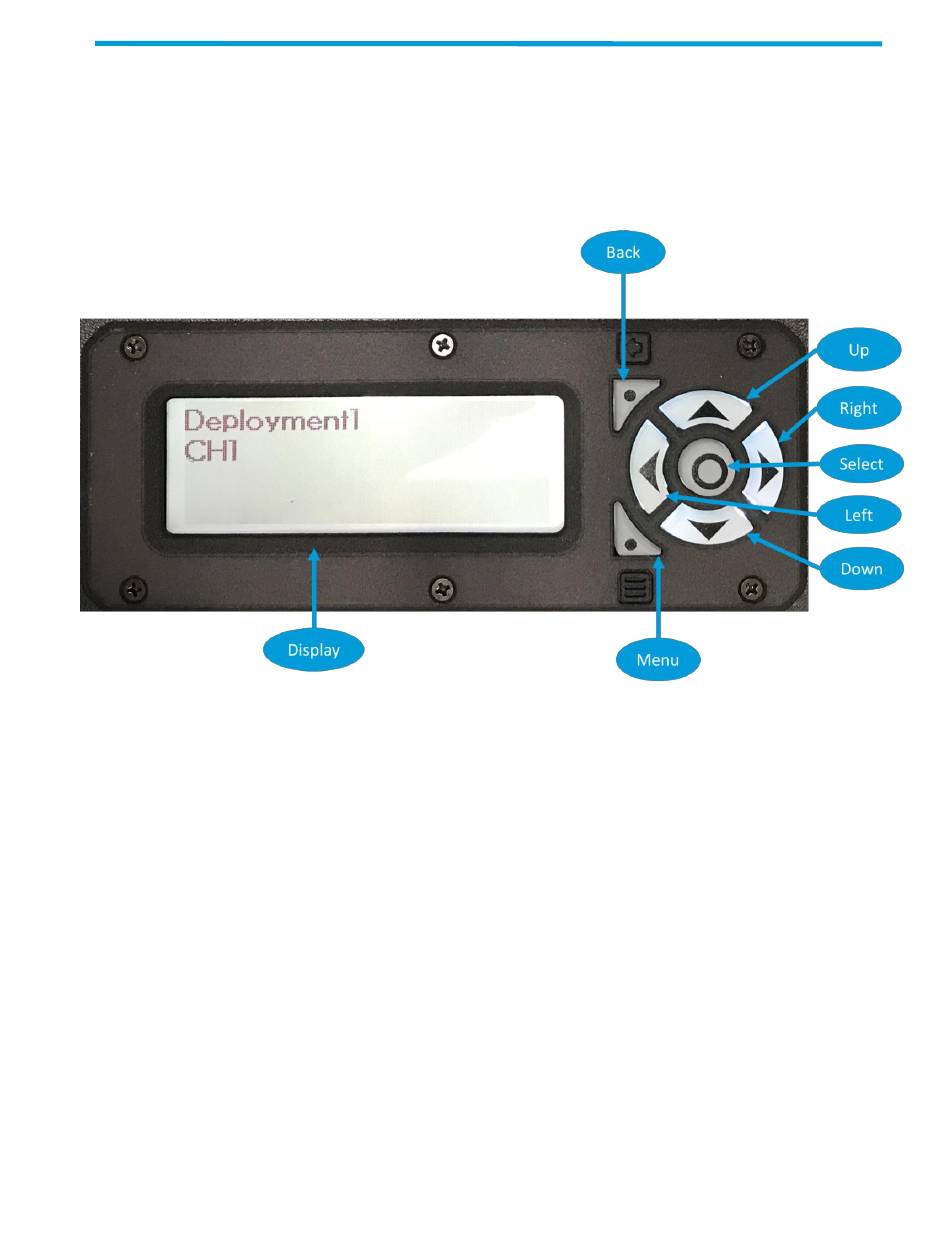

Figure 20 - PDR8000 Keypad/Display
The Display Menu may be configured by the PDR8000 configuration utility program known as
Tweaker. Therefore, any PDR8000 will have the menu specifically configured for the unit.
Page 18 of 24
