Document 8K088X03 R3.0
PDR8000 Portable Digital Repeater Deployment Guide
Step 1- Internal Connections
Determine the required RF hardware configuration and confirm the internal connections
correspond to the instructions below. To access the internal connections, unscrew the four
corner thumbscrews of the top panel and remove it.

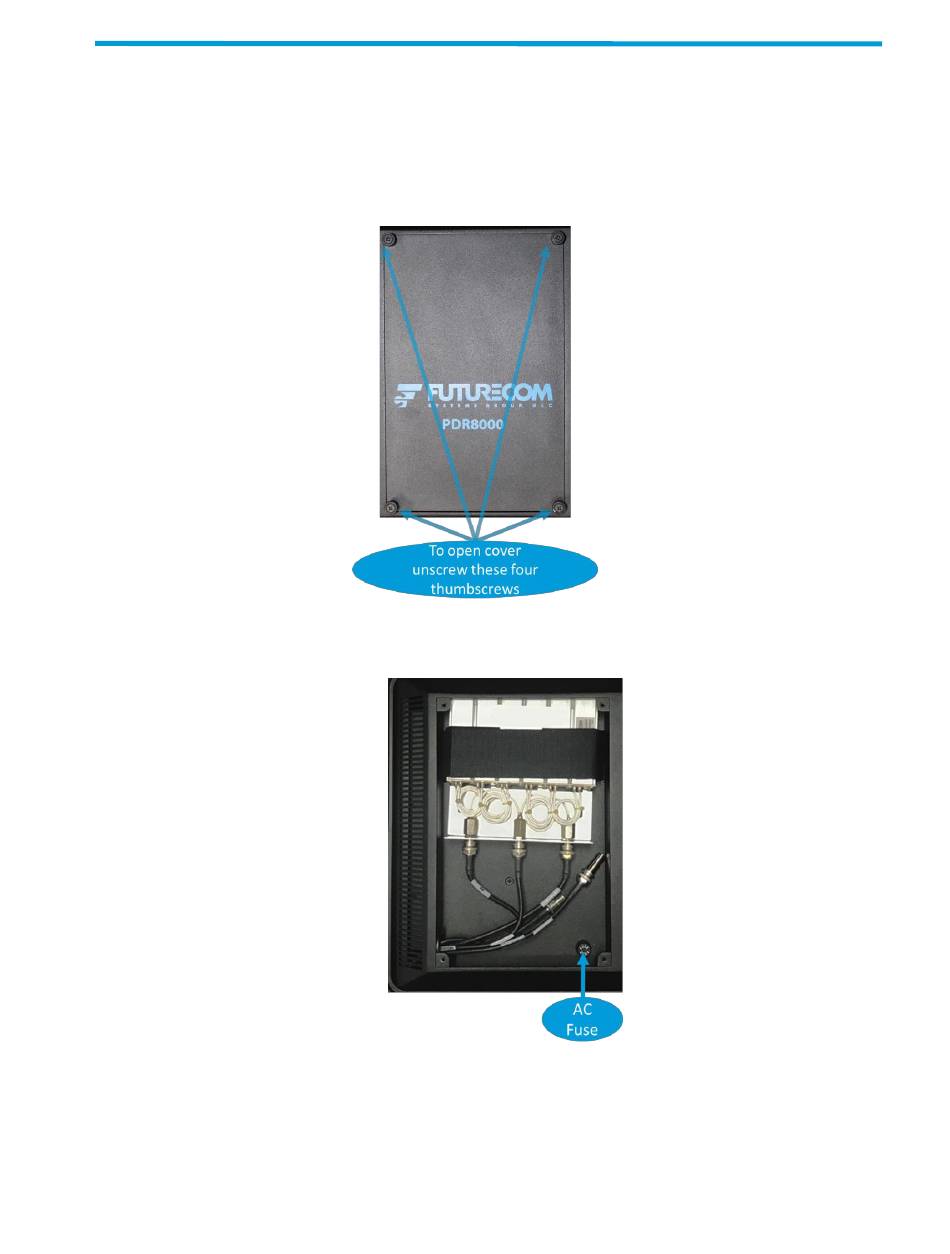

Figure 6 - Removable Top Panel
Figure 7 - Top Panel Removed
