Document 8K088X03 R3.0
PDR8000 Portable Digital Repeater Deployment Guide
Appendix B - DC Cable
The DC cable shipped with the PDR8000 has a connector on one end and flying leads on the
other. To complete the cable, connect the black wire to ground and the red wire to +13.8V.

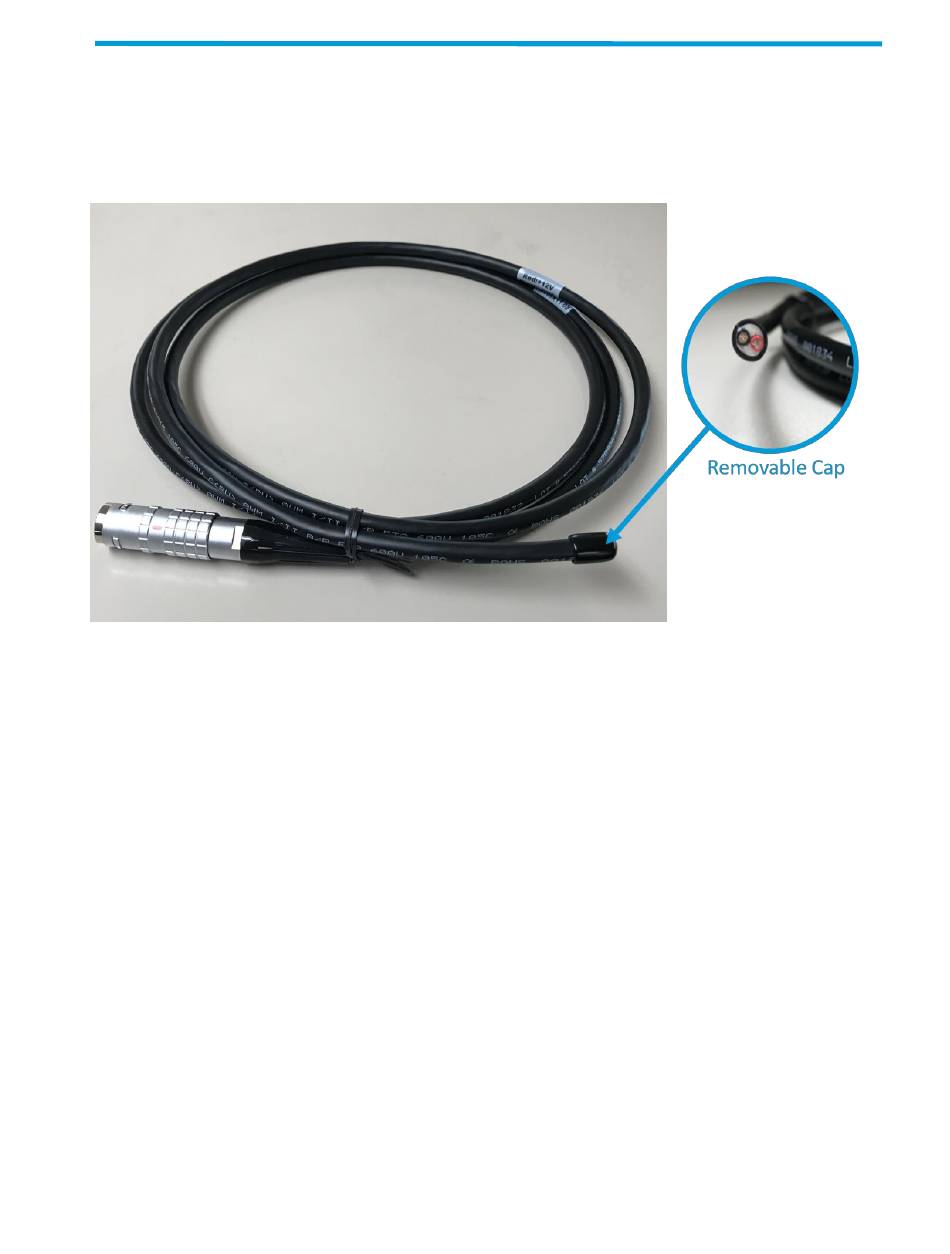

Figure 25 - DC Power Cable
Page 23 of 24
