Bosch SHP65CM2N - Dishwasher 24" Manual

Familiarizing yourself with your appliance

Appliance

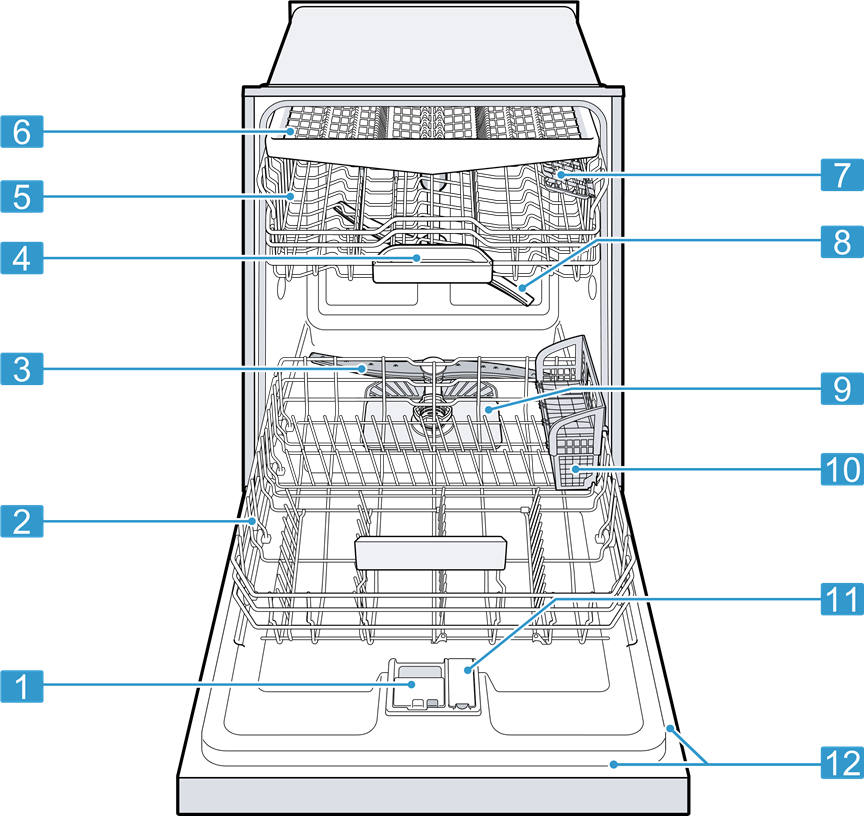

Familiarizing yourself with your appliance - Appliance

1 Detergent dispenser Add detergent to the detergent dispenser.
2 Lower rack Lower rack
3 Lower spray arm The lower spray arm washes the dishware in the lower rack.

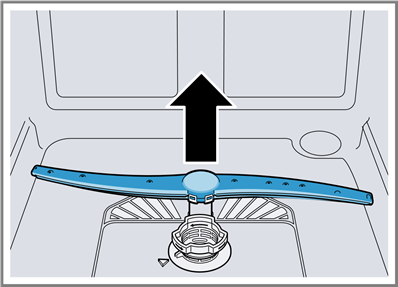

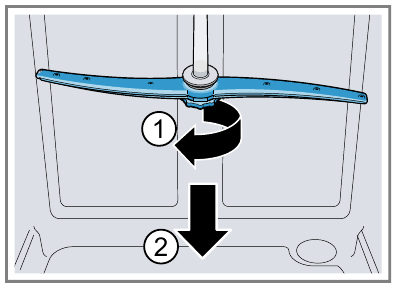

If the dishware has not been washed properly, clean the spray arms. → "Cleaning the spray arms"
4 Detergent tab collecting tray During the wash cycle, detergent tabs automatically drop out of the detergent dispenser into the tab collecting tray, where they can dissolve fully.
5 Upper rack Upper rack
6 Silverware drawer Silverware drawer
7 Cup shelf[1] Cup shelf
8 Upper spray arm The upper spray arm washes the dishware in the upper rack. If the dishware has not been washed properly, clean the spray arms. → "Cleaning the spray arms"
9 Filter system Filter system
10 Silverware basket Silverware basket
11 Dispenser for rinse aid Rinse aid is added to the dispenser for rinse aid. → "Rinse aid system"
12 Rating plate

Rating plate with E number and FD number

You will need this data to contact Customer service

Controls

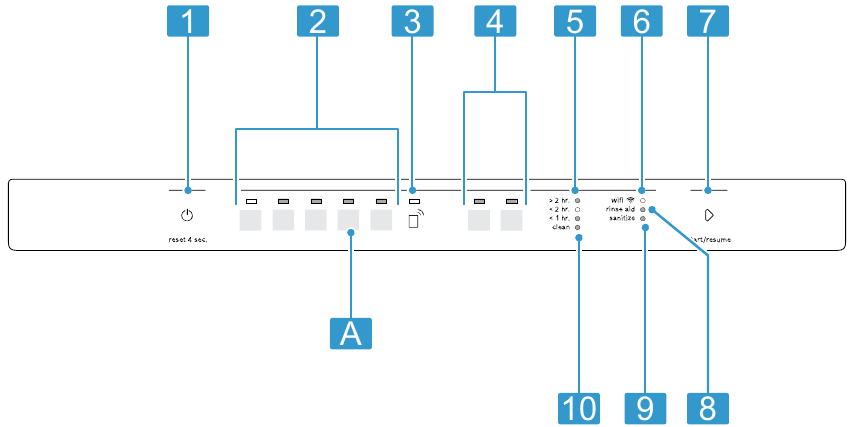

Familiarizing yourself with your appliance - Controls

A Button A If you press A for approx. 3 seconds, you can open the basic settings.
1 ON/OFF button and reset button Reset 4 sec. Switching on the appliance
Switching off the appliance
Terminating the wash cycle
2 Cycle buttons Cycles
3 Remote Start → "Remote Start "
4 Cycle buttons and options Cycles → Options
5 Display for remaining time The displays show the remaining time of the wash cycle.
6 WLAN display Home Connect
7 Start button Starting the wash cycle
8 Rinse aid refill indicator Rinse aid system → "Adding rinse aid
9 Display Sanitize The indicator lights up at the end of the program Sanitize.
10 Display Clean Once the wash cycle has ended, the display lights up.

Dishwasher Cycles

Below is an overview of the different cycles available on your dishwasher.

The running time may vary depending on the cycle selected. The running time depends on the water temperature, the quantity of dishware, the level of dirt and the option selected. The running time will change if the rinse aid system is switched off or rinse aid needs to be added. The consumption values relate to normal conditions and a water hardness of 16 - 20 °E. Different influencing factors such as water temperature or pipe pressure may result in deviations.

Cycle Purpose Cycle sequence Usage
  1. Hour/min.
  2. Electrical/kWH
  3. Water/gal
Heavy

Dishware:

  • Washing pots and pans, non-fragile dishware and silverware

Level of soiling:

  • Removing stubborn burned or dried on food remnants containing starch and protein.
Intensive
  • Pre-Rinse
  • Cleaning 151°F – 160°F
  • Intermediate rinse
  • Final rinse 162°F
  • Drying
  1. 1:50 - 2:20
  2. 1.100 - 1.150
  3. 4.9 - 6.4
Auto

Dishware:

  • Cleaning mixed dishware and silverware.

Level of soiling:

  • Removing common household food remnants lightly dried-on.

Sensor controlled:

¡ Optimized by sensors depending on the soiling of the rinse water.

  1. 1:45 - 2:09
  2. 0.880 - 0.970
  3. 3.4 - 6.4
Note: The displayed cycle time indicates an average value.
Normal

Dishware:

  • Cleaning mixed dishware and silverware.

Level of soiling:

  • Removing common household food remnants lightly dried-on.
Most economical cycle:
  • Pre-Rinse
  • Cleaning 122°F – 131°F
  • Intermediate rinse
  • Final rinse 154°F
  • Drying
  1. 2:10 - 2:15
  2. 0.770 - 0.850
  3. 2.3 - 5.5
Speed 60®

Dishware:

  • Cleaning mixed dishware and silverware.

Level of soiling:

  • Removing common household food remnants lightly dried-on.
Time-optimized:
  • Cleaning 122°F
  • Intermediate rinse
  • Final rinse 158°F
  • Drying
  1. 1:00
  2. 0.710
  3. 3.8
Favorite - -
  1. 1:45 - 2:09
  2. 0.880 - 0.970
  3. 3.4 - 6.4

Energy Guide

The Energy Guide label was based on the Normal soil sensing cycle.

The unit was tested without any rinse aid (liquid) in the rinse aid dispenser. A single dose of detergent was inserted into the detergent dispenser, with no detergent being used in the prewash. The unit was not subjected to truncated testing per the definitions in the test procedure. We recommend that dish loads such as the one in the energy certification test have the rack position set in the highest position. Recommended for daily, regular or typical use to completely wash a full load of normally soiled dishes.

Energy Guide

Favorite

With this function, you can save a combination of a Cycle and an Option.

You can save the selected Cycle and Option combination via the Home Connect app.

Tip: You can use the Home Connect app to download additional Cycles and Options and save them. 1

Options

Here is an overview of the different options available on your dishwasher.

Option Use

AutoAir
  • The appliance door opens automatically during the drying phase.
  • Depending on the basic setting selected, automatic door opening is activated or deactivated by the option button. The option button lights up when automatic door opening is activated. → "AutoAir"
Sanitize
  • To ensure a higher hygiene status Sanitize for the appliance and dishware, the temperature is increased and maintained for an extra-long period.
  • Especially suitable for cleaning chopping boards or baby bottles.
  • Continuous use of this option improves the hygiene status.
  • This will increase the run time and energy consumption.


Concerning dishware sanitation, be aware of the following.

  • Only sanitizing cycles have been designed to meet the requirements for soil removal and sanitation efficacy. There is no intention, either directly or indirectly, to imply that all cycles on a certified machine have passed the sanitization performance test.

Features

Upper rack

Arrange cups, glasses, and small tableware items in the top rack.

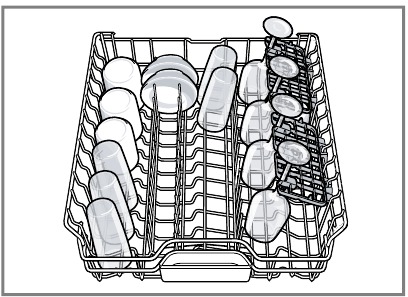

Features - Upper rack - Step 1

You can adjust the height of the upper rack to make room for larger items.

Adjusting upper rack with RackMatic® To wash large items in the racks, adjust the shelf height of the upper rack.

  1. Pull out the upper rack.
  2. To prevent the rack from suddenly dropping down, hold the side of the rack by the top edge.
  3. Press in the right and left hand levers on the outside of the rack.

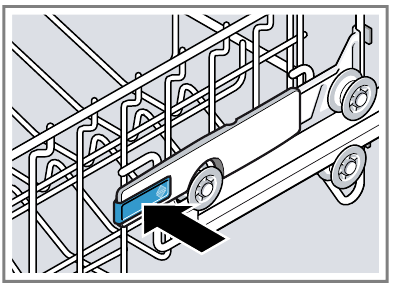

    Features - Upper rack - Step 2
  1. Raise or lower the rack evenly to the right level. Check that the rack is level on both sides.

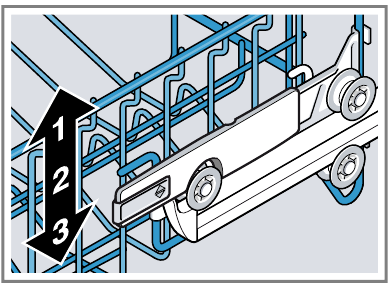

    Features - Upper rack - Step 3
  2. Release the levers.
    • The rack clicks into position.
  3. Slide the rack in.

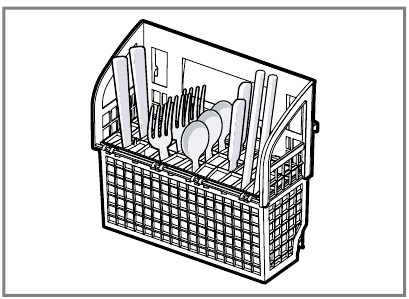

Silverware Basket

Arrange the silverware in the silverware basket, ensuring that the items are not nestled together and with the sharp points down.


The sharp points and edges of knives and other sharp utensils can cause serious injury.

  • Load knives and other sharp utensils with edges down. Do not allow children to handle or play near knives and sharp utensils

Silverware drawer

Arrange silverware in the silverware drawer.
Silverware drawer - Step 1

Arrange silverware with the points and sharp edges down. You can reorganize the silverware drawer to make more space for longer or wider utensils.

Reorganizing the silverware drawer
Fold down the side shelves and front tines to provide more space for longer or wider cutlery items.

  1. To fold down a side shelf, push the lever forward 1 and fold down the side shelf 2
    Silverware drawer - Step 2
  2. To fold down the front tines, push the lever forward and fold down the folding tines.

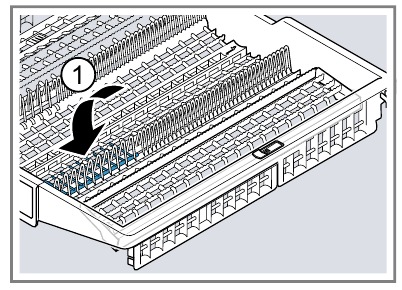

    Silverware drawer - Step 3
    Tip
    If you want to return the cutlery tray to its original position, fold the side shelf upward until it clicks into position.

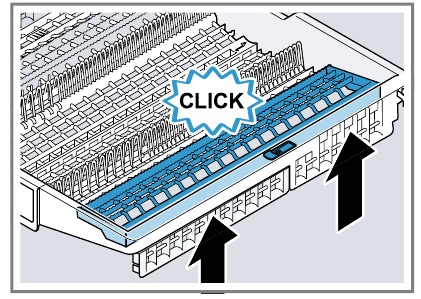

    Silverware drawer - Step 4

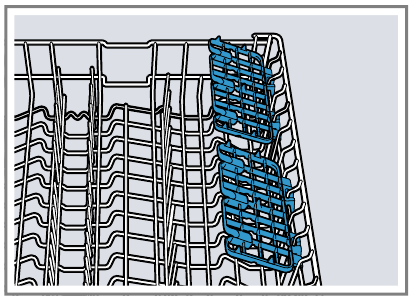

Cup shelf

Use the cup shelf and the space underneath for small cups and glasses or for large items of silverware, e.g. cooking spoons or serving cutlery.

Cup shelf

If you do not need the cup shelf, you can fold it down.

Flip tines

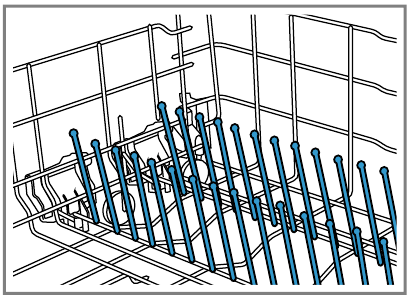

Use the flip tines to position dishware securely, e.g. plates.
Flip tines - Step 1

You can fold the tines down to arrange pans, bowls and glasses better.

Folding down the tines

If you do not need the tines, fold them down.

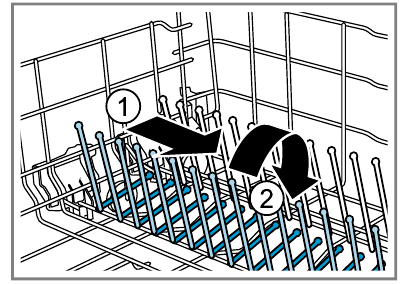

  1. Push the lever forward 1 and fold down the tines 2.
    Flip tines - Step 2
  2. To use the tines again, fold them back up.
    • The tines click into position .

Rack heights

Set the racks at the right height.

Appliance height 34" with silverware basket
Setting Upper rack Lower rack
1 max. ø 24 cm / 9.5" 33 cm / 13"
2 max. ø 26.5 cm / 10.5" 30.5 cm / 12"
3 max. ø 29 cm / 11.5" 28 cm / 11"
Appliance height 34" with silverware drawer
Setting Upper rack Lower rack
1 max. ø 18 cm / 7" 33 cm / 13"
2 max. ø 20.5 cm / 8" 30.5 cm / 12"
3 max. ø 23 cm / 9" 28 cm / 11"

Tip: If you remove the 3rd rack, you can place large items of dishware in the lower rack.

Before using for the first time

Initial use

Before the first use, or after a factory reset, you will need to configure the settings.

Tip: Connect your appliance to a mobile device. You can conveniently change all settings using the Home Connect® app. → "Home Connect® quick start"

Requirement: The appliance has been installed and connected.

  1. Add rinse aid.
  2. Switch on the appliance.
  3. Set the amount of rinse aid.
  4. Add detergent.
  5. Start the Program with the highest cleaning temperature without dishware. To remove any marks from water or other residues, we recommend you operate the appliance without dishware before using it for the first time.

Tip: You can change these settings and other Basic settings → at any time.

Rinse aid system

Rinse aid

For optimum drying results, use rinse aid.

Only use rinse aid intended for household dishwashers.

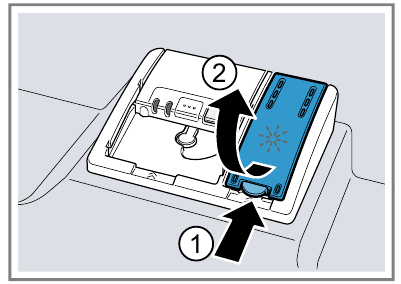

Adding rinse aid

If the rinse aid refill indicator lights up, fill the dispenser with rinse aid. Only use rinse aid intended for household dishwashers.

  1. Press the catch on the lid of the dispenser for rinse aid 1 and lift 2.
    Adding rinse aid

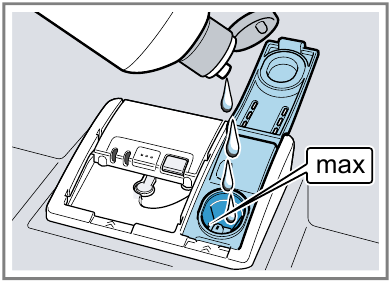

  2. Add rinse aid up to the max mark.
    Adding rinse aid - Step 2
  3. If rinse aid spills out, remove it from the tub.
    Spilled rinse aid can cause excessive frothing during the wash cycle.
  4. Close the lid of the dispenser for rinse aid. a The lid clicks into position.

Setting the amount of rinse aid

If there are streaks or water spots on dishware, change the amount of rinse aid.

  1. Press ON/OFF.
  2. To open the appliance settings, press the A button for 3 seconds.

    The refill indicator for rinse aid flashes.

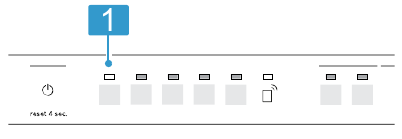

  1. Press Start repeatedly until the right amount of rinse aid has been set.

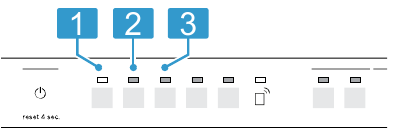

    Setting the amount of rinse aid - Step 2
    0, 1, 2 or 3 LEDs will light up accordingly.
    The factory setting is level 2.
    • A low setting adds less rinse aid during the wash cycle and reduces streaking on dishware.
    • A higher setting adds more rinse aid during the wash cycle, reduces water spots and improves the drying result.
  2. To store the setting, press the button for 3 seconds.

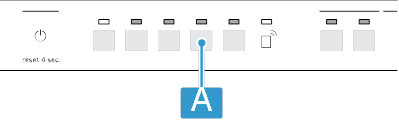

Switching off the amount of rinse aid to be dispensed

  1. Press ON/OFF⁠.
  2. To open the appliance settings, press button for 3 seconds.
    Switching off the amount of rinse aid to be dispensed
    The refill indicator for rinse aid flashes.
  3. Press Start repeatedly until no LED lights up.
    The rinse aid system is switched off and the rinse aid refill indicator is deactivated.
  4. To store the setting, press button for 3 seconds.

Detergent

Find out which detergents are suitable for your appliance.

The correct detergents

Only use detergents that are made for dishwashers, either basic or combination detergents.

For the best washing and drying results, use a separate detergent, then add Rinse aid → separately. Modern, powerful detergents mainly use a low-alkaline formulation with enzymes. Enzymes break down starch and remove protein. Oxygen-based bleaching agents are generally used to remove colored stains, e.g. tea or ketchup.

Note: Follow the manufacturer's instructions for each detergent.

Detergent Description
Tabs

Tabs are perfect for all cleaning functions and do not need to be measured out.

However, with shorter Cycles → sometimes tabs do not dissolve entirely and leave residues of detergent. This may reduce its effectiveness.

Powder detergent Powder detergent is recommended for shorter cycles. The dosage can be adjusted to the level of soiling.
Liquid detergent

Liquid detergent works faster and is recommended for shorter cycles without a pre-rinse.

Sometimes liquid detergent may leak out despite the detergent dispenser being closed. This is not a problem, just remember the following:

  • Only choose a cycle without PreRinse.
  • Do not use the Delay Start option. The dosage can be adjusted to the level of soiling.

Incompatible detergents

Do not use a detergent which is not designated for dishwasher use or contains chlorine.

Detergent Description
Liquid hand soap Liquid hand soap can cause increased frothing and damage the appliance.
Detergent containing chlorine This may leave chlorine residue on dishware.

Information on Detergent

Follow the instructions on detergents in everyday use.

  • Detergents marked as "ecological" (environmentally friendly) generally contain lower levels of active agents or none at all. The cleaning effect may be reduced.
  • Adjust the rinse aid and the water softening system settings in accordance with the detergent or combination detergent in use.
  • Any rinse aid component of a combination detergent has limited effectiveness. You will have better results using a separate rinse aid.
  • To prevent sticking, only touch detergents in a watersoluble pouch with dry hands and only ever place them in a dry detergent dispenser.
  • Even if the rinse aid and special salt refill indicators light up, the wash cycles will run properly with combination detergents.
  • Use tablets with enhanced drying results.

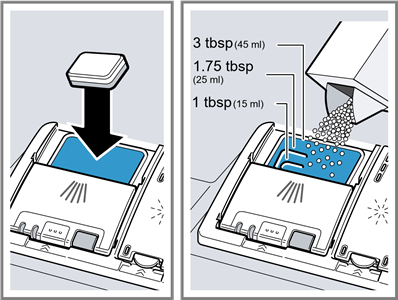

Adding Detergent

  1. To open the detergent dispenser, press the locking latch.
  2. Add the detergent to the dry detergent dispenser.
    Adding Detergent
    If you are using tablets, one is enough. Insert the tablets in a horizontal position.
    If you are using powder or liquid detergent, follow the manufacturer's instructions and quantities for dosage in the detergent dispenser.
    1.5 to 1.75 Tbsp (20 ml – 25 ml) detergent is sufficient for normal soiling. If dishware is only lightly soiled, slightly less than the amount of detergent specified is usually sufficient.

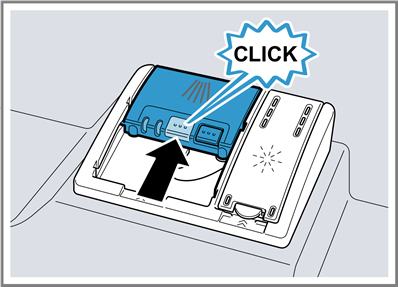

  3. Close the lid of the detergent dispenser.
    • The lid clicks into position.
    • The detergent dispenser will open automatically at the optimum time during the cycle. Powder or liquid detergent will spread around the washing tank and dissolve there. Tablets will fall into the tablet collecting tray and dissolve in the right dosage. In order to ensure that tablets can dissolve evenly, do not place any other objects in the tablet collecting tray.

Detergent table

Detergent amount guidelines

Note: This dishwasher provides the optimum cleaning performance without the use of a prewash detergent and further enhances our standards of sustainability and efficiency.

Auto 1.75 Tbsp (25 ml) or 1 tab
Normal 1.75 Tbsp (25 ml) or 1 tab
Heavy 3 Tbsp (45 ml) or 1 tab
Speed 60® 1 Tbsp (15 ml)

Dishware

Only wash dishware that is suitable for dishwashers. Note: Decorated glassware and parts made of aluminum or silver may fade or discolor with dishwashing. Delicate types of glass may turn cloudy after a few wash cycles.

Damage to glass and dishware

Only put glasses and china in the dishwasher if they are labeled dishwasher-safe. Avoid damage to glass and dishware.

Cause Recommendation
The following types of dishes are not dishwashersafe:
  • Wooden utensils and dishes
Only put dishes in the dishwasher if they are labeled dishwasher-safe.
  • Decorative glassware, antique dishes and artistic hand-made pottery
  • Plastic parts that are not heat-resistant
  • Dishes made from copper or tin
  • Dishes soiled with ash, wax, grease or paint
  • Very small items of dishware
The chemical composition of the detergent causes damage. Use a detergent labeled as gentle to dishes.
Highly caustic alkaline or highly acidic cleaning solutions, in particular commercial or industrial cleaners, are not safe to use in the dishwasher with aluminum. If you use highly caustic alkaline or highly acidic cleaning solutions, in particular commercial or industrial cleaners, do not put anything aluminum in the dishwasher.
The water temperature of the cycle is too high.

Select a cycle with lower temperatures.

After the cycle has ended, take glassware and silverware out of the appliance without delay.

The water temperature of the cycle is too high and the water is too soft. Select a cycle with lower temperatures. Use detergent with glass protection.

Loading dishware

Arrange dishware correctly to optimize the dishwashing result and prevent damage to both dishware and the appliance. The noise level may also vary depending on the items placed in your dishwasher.

NOTICE:
Avoid dishwasher damage

  • Do not load the dishwasher with paper products, plastic bags, packing materials or anything other than normal, dishwasher safe dishware and kitchenware.

Tips

  • Using the appliance allows you to save energy and water compared to doing dishes by hand.
  • See our website for examples of how to load your appliance efficiently.
  • To save energy and water, load the machine with the number of place settings specified (standard load with dishes and silverware).
  • For better washing and drying results, position itemswith curves or recesses at an angle so water can run off.

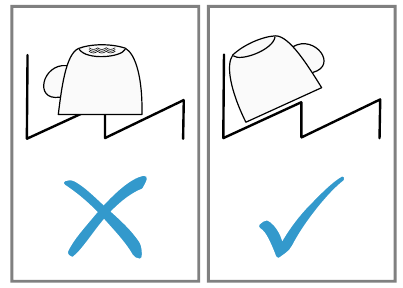

    Loading dishware - Step 1
  1. Remove large remnants of food from dishware.
    To save resources, do not pre-rinse dishware under running water.
  2. Observe the following when arranging dishware:
    • Put heavily soiled dishware in the lower rack, e.g. pans. The more powerful spray jet ensures that the dishwashing result will be better.
    • To avoid damage to dishware, arrange it so it is stable and cannot tip over.
    • To avoid injury, arrange silverware with the points and sharp edges facing down.
    • Position containers with the openings facing down so no water can collect in them.
    • Do not block the spray arms - make sure that they can turn freely.
    • Do not place small parts in the collecting tray and do not block it with dishware so as not to obstruct the lid of the detergent dispenser.

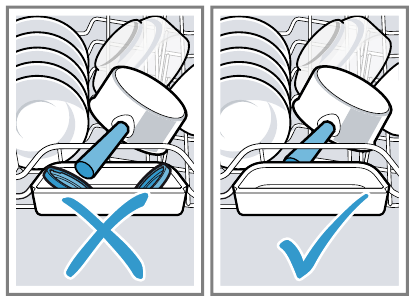

      Loading dishware - Step 2

Removing dishware


Dishes can be very hot immediately after the cycle ends.

  • Open the door slightly and allow dishes to cool for a few minutes before unloading.
  1. To prevent water dripping onto dishware, unload it starting at the bottom and working up.
  2. Check the washing tank and accessories for soiling and clean if necessary. → "Cleaning and maintenance"

Loading patterns

Recommended loading patterns.

12 place settings:
Lower rack
Loading patterns - Step 1

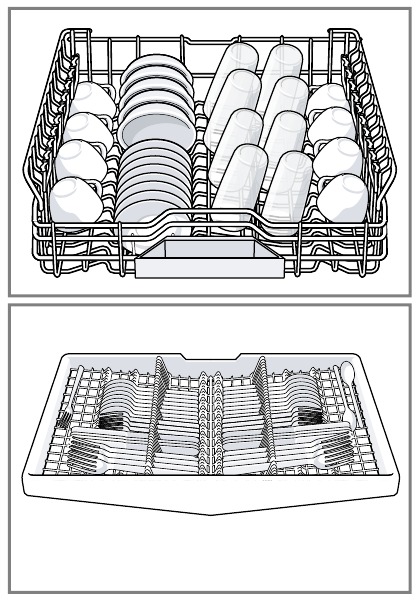

Upper rack

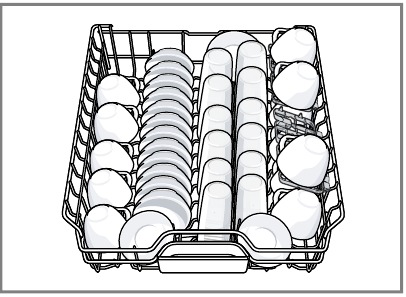

Loading patterns - Step 2

Third rack
Loading patterns - Step 3

Additional loading patterns for 10 place settings:
Lower rack
Loading patterns - Step 4

Upper rack
Loading patterns - Step 5

Basic Operation

Protection against unintentional operation

Your dishwasher has a built in feature to help prevent unintentional operation, e.g. by children. After starting the appliance, the door has to be closed within 4 seconds, otherwise the operation will be paused. If this occurs, follow the steps below to restart your dishwasher.

  1. For top button controls: Press and close the door.
  2. For front button controls: Close the door and press Start⁠.
    • The wash cycle will resume.

Notes

  • Unintentional operation is activated when:
    • Pressing Start to begin a wash cycle
    • Setting Delay time and pressing Start
    • Opening the door while Delay time is active
    • Opening the door during a wash cycle.
  • This feature cannot be deactivated.

Switching on the appliance

  • Touch ON/OFF with a short 1 second touch.
    The cycle last selected and the option last selected will be set by default.
    The buttons on the appliance are touch sensitive and only require a quick, gentle touch.
    If you do not perform any actions on the appliance for 10 minutes, it will automatically switch off.

Setting a cycle

To adjust the wash cycle to the soiling level of the dishware, select a suitable program.

  • Press the right cycle button.
    The cycle is set and the cycle button flashes.

Setting options

You can set options to complete the chosen wash program.

Note: The available options depend on which program is selected.

  • Keep pressing the button for options until the appropriate option is set.
    Setting intensive drying The additional function is set and the LED flashes.

Setting the time delay

You can delay the start of the wash cycle via the Home Connect® app.

  • Open the Home Connect® app and select the appliance.

In the settings, you can use the time delay function to delay the start of the wash cycle.

Starting the wash cycle

  • Press Start.
  • While the wash cycle is running, a spot of light is projected onto the floor below the appliance door. This light will not be visible if the appliance is installed at eye level with the cabinet front fitted flush.
  • The wash cycle has ended when no displays on the controls are lit.
  • The wash cycle has ended when the spot of light is no longer visible on the floor.

Notes

  • If you want to add more dishware while the appliance is running, do not use the collecting tray as a handle for the upper rack. You might touch the partially dissolved tablet.
  • You can only change a cycle in progress if you can cancel it first. → "Terminating the wash cycle"
  • To save energy, the appliance switches off automatically 10 minutes after the end of the wash cycle. If you open the appliance door immediately after the wash cycle has ended, the appliance will switch off after 4 seconds.

Interrupting the wash cycle

  1. Press On/Off. The program is saved and the appliance switches off.
  2. Press On/Off.
  3. Press to resume the wash cycle.

Terminating the wash cycle

To end a cycle early or to switch from one that has already started, you will need to cancel it first.

  • Press Reeset 4sec. for approx. 4 seconds.
    • All displays light up.
    • As soon as the displays are off, the residual water is pumped out.
    • The cycle is cancelled and ends after approx. 1 minute.

Switching off the appliance


To avoid risk of injury, always use caution when opening the door during or following a wash cycle as hot water or steam may escape.

  • Do not fully open the door until water noises have stopped and steam has subsided.
  1. Please note the information on Preventing Material Damage.
  2. Press On/Off.

Basic settings

You can configure the basic settings for your appliance to meet your needs.

Basic setting Selection Description
Rinse aid disp. Scale with 4 levels Set or switch off the amount of rinse aid to be dispensed. → "Setting the amount of rinse aid"
Intensive drying On
Off 1
Switch intensive drying on or off for each operation. The temperature in the final rinse is increased for a better drying result. This may increase the run time slightly. Note: Please take care with delicate dishware. → "Setting intensive drying"
Signal volume Scale with 4 levels Adjusting the signal volume. → "Setting the signal volume"
Wi-Fi On
Off 1
Switch the wireless network connection on or off. → "Setting Wi-Fi"
The basic setting is not available until you have connected the appliance with the Home Connect® app. → "Home Connect® "
Factory setting Reset Restore changed settings to the factory settings. The settings for initial use must be configured.
1 Factory setting (may vary according to model)

Tip: Connect your appliance to a mobile device. You can conveniently change all settings using the Home Connect® app. → "Home Connect® quick start"

Setting intensive drying

  1. Press ON/OFF⁠.
  2. To open the appliance settings, press A button for 3 seconds.
    Setting intensive drying - Step 1
    • The refill indicator for rinse aid flashes.
  1. Press button repeatedly until the Clean and Sanitize LEDs flash.
  2. Press button repeatedly until the LED (1) lights up.
    Setting intensive drying - Step 2
    If the LED is not lit up, intensive drying is switched off.
    If the LED is lit up, intensive drying is switched on.
  3. To store the settings, press button for 3 seconds.

Setting Wi-Fi

  1. Press ON/OFF⁠.
  2. To open the appliance settings, press A button for 3 seconds.
    Setting Wi-Fi - Step 1
    • The refill indicator for rinse aid flashes.
  3. Press button repeatedly until the Rinse Aid and Sanitize LEDs flash.
  4. Press Start button repeatedly until the LED (1) lights up.

    If the LED is not lit up, Wi-Fi is switched off.
    If the LED is lit up, Wi-Fi is switched on.
  5. To store the settings, press button for 3 seconds.

Setting the signal volume

  1. Press ON/OFF⁠.
  2. To open the appliance settings, press the A button for 3 seconds.
    Setting the signal volume - Step 1
    • The refill indicator for rinse aid flashes.
  3. Press the A button repeatedly until the Clean and Rinse Aid LEDs flash.
  4. Press the Start button repeatedly until the right signal volume has been set.
    Setting the signal volume - Step 2
    0, 1, 2 or 3 LEDs will light up accordingly. The selected signal tone will sound.
    The factory setting is level 2.
  5. To store the setting, press the button for 3 seconds.

Restoring factory settings

  1. Press ON/OFF⁠.
  2. To open the appliance settings, press the A button for 3 seconds.
    Restoring factory settings - Step 1
    • The refill indicator for rinse aid flashes.
  3. Press the A button repeatedly until the Clean, Rinse Aid and Sanitize LEDs flash.
  4. Press the Startbutton.
    • The LEDs flash. The appliance is reset to factory settings.
      Restoring factory settings - Step 2

Home Connect

This appliance is network-capable. Connecting your appliance to a mobile device lets you control its functions via the Home Connect® app.

The Home Connect® services are not available in every country. The availability of the Home Connect® function depends on the availability of Home Connect® services in your country. You can find information on this at: www.home-connect.com.

To be able to use Home Connect®, you must first set up the connection to the WLAN home network (Wi-Fi [4]) and to the Home Connect® app.

The Home Connect® app guides you through the entire registration process. Follow the instructions in the Home Connect® app to implement the settings.

Tips

  • Consult the Home Connect® documents supplied.
  • Follow the instructions in the Home Connect® app as well.

Note: Also note the safety information in this instruction manual and ensure that it is also observed when operating the appliance using the Home Connect® app.

Home Connect® quick start

Connect your appliance to a mobile device quickly and easily.

Setting up the Home Connect® app

  1. Install the Home Connect® app on your mobile device.
  2. Start the Home Connect® app and set up access for Home Connect®.
    The Home Connect® app guides you through the entire registration process.

Setting up Home Connect®

Requirements

  • The Home Connect® app is installed on your mobile device.
  • The appliance receives signals from the WLAN home network (Wi-Fi) at its installation location.
  • The appliance door is closed.
  1. Open the Home Connect® app and scan the following QR code.
  2. Follow the instructions in the Home Connect® app.

Home Connect® settings

Adapt Home Connect® to your needs. You can find the Home Connect® settings in the basic settings for your appliance. Which settings the display shows will depend on whether Home Connect® has been set up and whether the appliance is connected to your home network.

Remote Start

You can use the Home Connect® app to start the appliance with your mobile device.

Note: You can change settings using the Home Connect® app.

Activating Remote Start

Requirements

  • The appliance is connected to your WLAN home network.
  • The appliance is connected to the Home Connect® app.
  • A program is selected.
    • Press ⁠.
      If you open the appliance door, the function is automatically deactivated.
    • button lights up.

Tip: To deactivate the function, press ⁠.

Note

The following settings are possible using the Home Connect® app:

  • Deactivate the function permanently.
  • Select the function using the button. This setting is the default preset at the factory.
  • Activate the function permanently. With this setting pressing button is not necessary.

Remote Diagnostics

The Customer Service can access your appliance via Remote Diagnostics if you ask them to do so, if your appliance is connected to the Home Connect® server and if Remote Diagnostics is available in the country where you are using the appliance.

Tip: Further information and details about the availability of Remote Diagnostics in your country can be found in the Service/Support section of your local website: www.homeconnect.com.

Software update

You can use this function to update the software of your appliance, e.g. for optimization, troubleshooting or safetyrelevant updates.

The Home Connect® app informs you about available software updates.

Data Protection

Please see the information on data protection.

The first time your appliance is registered on a home network connected to the Internet, your appliance will transmit the following types of data to the Home Connect® server (initial registration):

  • Unique appliance identification (consisting of appliance codes as well as the MAC address of the installed Wi-Fi communication module).
  • Security certificate of the Wi-Fi communication module (to ensure a secure data connection).
  • The current software and hardware version of your appliance.
  • Status of any previous reset to factory settings.

This initial registration prepares the Home Connect® functions for use and is only required when you want to use the Home Connect® functions for the first time.

Note: Please note that the Home Connect® functions can be utilized only with the Home Connect® app. Information on data protection can be called up in the Home Connect® app.

Cleaning and maintenance

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

Cleaning the tub


Using detergents containing chlorine may result in harm to health.

Never use detergents containing chlorine.

  1. Remove any heavy soiling in the interior with a damp cloth.
  2. Add detergent to the detergent dispenser.
  3. Select the program with the highest temperature.
  4. Start the program without dishware.

Cleaning agent

Only use suitable cleaning agents to clean your appliance. → "Preventing material damage"

Tips on appliance care

Follow the tips on appliance care to make sure your appliance functions properly at all times.

Action Benefit
Regularly wipe the door seals, the front of the dishwasher and the control panel using a damp cloth and dishwashing liquid. This ensures the parts of the appliance will remain clean and hygienic.
If the appliance is not going to be used for a while, leave the door slightly ajar. This will prevent unpleasant odors.

Filter system

The filter system removes coarse soiling from the dishwashing cycle.

Debris in the rinsing water can block the filters.

  1. Check the filters for residues after each dishwashing cycle.
  2. Turn the coarse filter counterclockwise 1 and take out the filter system 2.
    Filter system - Step 1
    • Ensure that foreign objects do not fall into the sump.
  3. Pull the micro filter downward and off.
  4. Press the locking catches 1 together and take the coarse filter upward and out ⁠2.
  5. Clean the filter elements under running water.
    Carefully remove the rim of debris between the coarse filter and the fine filter.
  6. Put the filter system back together.
    Ensure that the locking catches on the coarse filter click into position.

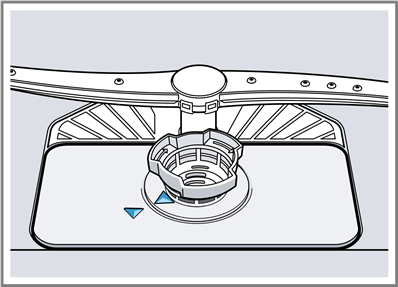

  7. Insert the filter system into the appliance and turn the coarse filter clockwise.
    • Ensure that the arrow markings match up.

Cleaning the spray arms

Limescale and soiling in the dishwashing water may block the nozzles and bearings on the spray arms. Clean the spray arms regularly.

  1. Unscrew the upper spray arm and pull down to remove.
    Cleaning the spray arms - Step 1
  2. Pull up the lower spray arm to remove.
    Cleaning the spray arms - Step 2
  3. Check the outlet nozzles on the spray arms for blockages under running water and remove any foreign objects.
  4. Insert the lower spray arm. a The spray arm clicks into position.
  5. Insert the upper spray arm and screw firmly in place.

Troubleshooting

You can eliminate minor issues on your appliance yourself. Please read the information on eliminating issues before contacting Customer Service. This may avoid unnecessary repair costs.

Issue Cause and troubleshooting
Appliance door does not open at the end of the program.

Automatic door opening is not activated.

  • Activate automatic door opening. → "Overview of the basic settings"

Door is not correctly adjusted.

  • Adjust the appliance door as described in the installation instructions. The door gap must be at least 70 mm to 120 mm.

Appliance door and door seal are dirty.

  • Clean the appliance door and door seal with a damp cloth and a little dishwashing liquid.

Wrong screws used to adjust the door gap.

  • Use size 4X30 screws to adjust the door gap.
    The screws are included in the installation kit.
    If you use screws that are too long, this may deactivate the automatic door opening function.

The safety device switches off automatic door opening.

  • Call customer service.

Appliance door brushes against the appliance or kitchen cabinets

  • Install the appliance correctly as described in the installation instructions and align.
Appliance door opens too wide at the end of the program.

Door is not correctly adjusted.

  • Adjust the appliance door as described in the installation instructions.

The door gap must be at least 70 mm to 120 mm.

Wrong screws used to adjust the door gap.

  • Use size 4X30 screws to adjust the door gap.
    The screws are included in the installation kit.
    If you use screws that are too long, this may deactivate the automatic door opening function.
Four vertical LED's (i.e. the cycle duration indicators and the clean indicator) all light up at the same time.

Not an appliance error. Garbage disposal is still plugged or the drain hose is kinked.

  • Check that the garbage disposal plug is removed and that the drain hose is not kinked.

Not an appliance error. The drain pump cover is loose or a foreign object is blocking the pump.

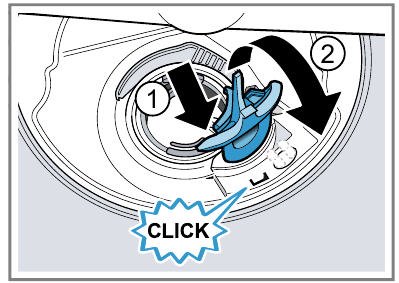

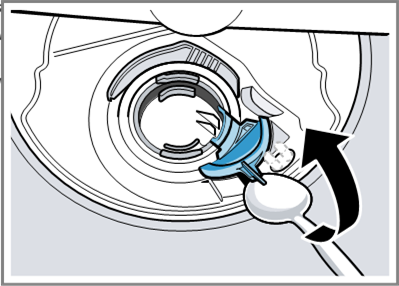

  • Secure the cover of the drain pump so it clicks into place or clean the drain pump.
Four vertical LED's (i.e. the cycle duration indicators and the clean indicator) all light up at the same time. Filters in the water connection of the supply or AquaStop hose are blocked.
  1. Switch off the appliance.
  2. Pull out the power cord plug.
  3. Turn off the water faucet.
  4. Unscrew the water connection.
  5. Remove the filter from the supply hose.
    Troubleshooting
  6. Clean the filter.
  7. Reinsert the filter in the supply hose.
  8. Screw the water connection back on.
  9. Check the water connection for leaks.
  10. Restore the power supply.
  11. Switch the appliance on.

Inlet hose is kinked.

  • Install the inlet hose without kinks.

Water faucet is turned off.

  • Turn on the faucet.
Four vertical LED's (i.e. the cycle duration indicators and the clean indicator) are all flashing. There is a technical issue.
  1. Press ON/OFF.
  2. Pull out the power cord plug of the appliance or switch off the breaker.
  3. Wait at least 2 minutes.
  4. Insert the power cord plug of the appliance in a power outlet or switch on the breaker.
  5. Switch the appliance on.
  6. If the problem occurs again:
    • Press ON/OFF.
    • Turn off the water faucet.
    • Pull out the power cord plug.
    • Contact customer service → and give the error code.
Dishware is not dry. No rinse aid used or dosage set too low.
  1. Add Rinse aid
  2. Set the amount of rinse aid to be dispensed. → "Setting the amount of rinse aid"
Cycle or cycle option has no drying phase, or drying phase is too short.
  • Select a wash cycle with drying.
    Some option buttons decrease the drying result. Water collects in recesses of dishware or silverware.
Dishware is not dry.
  • Position dishware at an angle where possible.

The combined detergent used has a poor drying performance.

  1. Use rinse aid to improve drying performance.
  2. Use a different combined detergent with a better drying performance.

Extra Dry/intensive drying not activated to improve drying performance.

  • Activate Extra Dry/intensive drying.

Dishware removed too early or drying process not yet ended.

  1. Wait until the program ends.
  2. Only remove dishware 30 minutes after the program has ended.

Rinse aid used has a limited drying performance.

  • Use a name-brand rinse aid. Eco products may have limited effectiveness.

Appliance door does not open automatically at the end of the program

  • Adjust the appliance door as described in the installation instructions. The door gap must be at least 2.75" to 4".
Silverware is not dry. Silverware not arranged properly in the silverware basket or silverware drawer. Droplets can form on the contact points of silverware.
  1. Arrange silverware individually where possible.
  2. Avoid points of contact.
Appliance interior still wet after wash cycle. Not an error. Condensation drying creates water droplets in the tub. This is normal. Moisture in the air condenses on the inside walls of the appliance, runs off, and is pumped out. No action required.
Food remnants on dishware. Dishware was placed too close together or rack is overfilled.
  1. Arrange dishware with sufficient space in between. The spray jets must reach the surfaces of the dishware.
  2. Avoid points of contact.

Spray arm rotation of the lower spray arm is blocked.

  • Arrange dishware so it does not obstruct spray arm rotation.

Spray arm nozzles are blocked.

  • Clean the Spray arms

Filters are dirty.

  • Clean the filters. → "Cleaning filters"

Filters are inserted incorrectly and/or not engaged.

  1. Insert the filters properly. → "Filter system"
  2. Twist filters into place.

Selected wash cycle is too light.

  • Select a more intensive wash program.
Food remnants on dishware.

Dishware has been precleaned too intensively. Then the sensors choose a lighter cycle. Stubborn remnants cannot be entirely removed.

  • Only remove large remnants of food and do not pre-rinse dishware.

Tall narrow containers in corner areas are not rinsed out adequately.

  • Do not position tall narrow containers at too great an angle or in corner areas.

Upper rack on right and left not set to same height.

  • Set the upper rack on the left and right to the same height. → "Upper rack"
Detergent residue in the appliance

Lid of the detergent dispenser is blocked by items of dishware and will not open.

  1. Arrange dishware in the upper rack so the tab collecting tray is not obstructed by dishware. → "Loading dishware"
    Items of dishware are blocking the dispenser lid.
  2. Do not place dishware or fragrance dispensers in the tab collecting tray.

The lid of the detergent dispenser is blocked by the tab and will not open.

  • Position the tab in the detergent dispenser crosswise, not vertically.

Tabs are used in the quick or short cycle. There is not enough time for the tab to dissolve.

  • Select a more intensive Wash cycle or use Powder detergent.

Detergent may lose its cleaning or dissolving ability after being stored a long time, or the detergent is clumped together.

  • Change your Detergent.
Water spots on plastic parts. Droplet formation on plastic surfaces is unavoidable due to the laws of physics. Water spots are visible after drying.
  • Select a more intensive program.
  • Position dishware at an angle. → "Loading dishware"
  • Use rinse aid. → "Rinse aid"
Wipeable or water-soluble coatings inside the appliance or on the door. There is detergent residue. These coatings cannot generally be removed with chemicals.
  • Change your Detergent.
  • Scrub the appliance by hand.
There are stubborn white coatings on the dishware, inside the appliance or on the door.

There is detergent residue. These coatings cannot generally be removed with chemicals.

  • Change your Detergent.
  • Scrub the appliance by hand.

Too little detergent is being used.

  • Increase the amount of detergent used or change Detergent.

Selected wash cycle is too light.

  • Select a more intensive wash program.
Tea residue or lipstick marks on dishware.

Dishwashing temperature is too low.

  • Select a program with a higher dishwashing temperature.

Too little detergent is being used or is unsuitable.

  • Use a suitable Detergent and follow the manufacturer's instructions for the amount to be used.

Dishware has been precleaned too intensively. Then the sensors choose a lighter cycle. Stubborn remnants cannot be entirely removed.

  • Only remove large remnants of food and do not pre-rinse dishware.
There are colored coatings (blue, yellow, brown) inside the appliance or on stainless steel dishware that are difficult or impossible to remove.

The formation of films is due to substances contained in vegetables (cabbage, celery, potatoes, noodles, etc.) or tap water (manganese).

  • Clean the appliance.
    You can remove coatings with Mechanical cleaning → or a machine cleaning product. It may not always be possible to completely remove coatings but they are harmless to health.

The formation of films is due to metal components on silver or aluminum dishware.

  • Clean the appliance.
    You can remove coatings with Mechanical cleaning → or a machine cleaning product. It may not always be possible to completely remove coatings but they are harmless to health.
Plastic parts inside the appliance are discolored. Plastic parts inside the appliance may become discolored over the life of the dishwasher.
  • Discoloration may come about and will not impair functioning of the appliance.
Plastic parts are discolored.

Dishwashing temperature is too low.

  • Select a program with a higher dishwashing temperature.

Dishware has been precleaned too intensively. Then the sensors choose a lighter cycle. Stubborn remnants cannot be entirely removed.

  • Only remove large remnants of food and do not pre-rinse dishware.
There are removable streaks on glasses, glassware with a metallic appearance and silverware.

Amount of rinse aid to be dispensed is set too high.

  • Set the rinse aid system to a lower setting. → "Setting the amount of rinse aid"

No rinse aid has been added.

  • Add rinse aid. → "Adding rinse aid"

There is detergent residue in the final rinse. Lid of detergent dispenser is blocked by dishware and will not open fully.

  1. Arrange dishware in the upper rack so the tab collecting tray is not obstructed by dishware. → "Loading dishware", Items of dishware are blocking the dispenser lid.
  2. Do not place dishware or fragrance dispensers in the tab collecting tray.

Dishware has been precleaned too intensively. Then the sensors choose a lighter cycle. Stubborn remnants cannot be entirely removed.

  • Only remove large remnants of food and do not pre-rinse dishware.
Irreversible clouding of glassware. Glasses are not dishwasher-proof, only suitable for dishwashers.
  • Use dishwasher-proof glasses.
    Glasses are usually only suitable for cleaning in a dishwasher, i.e. long-term wear or long-term changes must be expected.
  • Avoid a lengthy steam phase (standing time after wash cycle ends).
  • Use a program with a lower temperature.
  • Use detergent with a glass protection component.
Detergent residue is present in the detergent dispenser or the tab collecting tray.

Spray arms were blocked by dishware so detergent was not rinsed out.

  • Check that the spray arms are not blocked and can rotate freely.

Detergent dispenser was damp when detergent was added.

  • Only add detergent to the detergent dispenser when dry.
Excessive formation of foam occurs. Hand soap got in the rinse aid dispenser.
  • Immediately add rinse aid to the dispenser. → "Adding rinse aid"
Excessive formation of foam occurs.

Rinse aid has been spilled.

  • Remove the rinse aid with a cloth.

Detergent or machine care product used causes excessive foaming.

  • Change the brand of detergent.
Connection to home network is not established. WLAN on router is not active.
  • Check the wireless network connection of your router.
WLAN display is flashing. Connection to home network is not available.
  • Activate the wireless network connection on your router.
Home Connect cannot be implemented correctly.

Home Connect set incorrectly.

  • Please consult the documents supplied for Home Connect®.

There is a technical error.

  • Please consult the information on support in the documents supplied for Home Connect®.
Refill indicator for rinse aid lights up. No rinse aid.
  1. Add Rinse aid
  2. Set the amount of rinse aid to be dispensed. → "Setting the amount of rinse aid"
Refill indicator for rinse aid does not light up. Rinse aid system is switched off.
  • Set the amount of rinse aid. → "Setting the amount of rinse aid"
All LEDs light up or flash. Electronics have detected a fault.
  1. Press the main switch button for approx. 4 seconds. → "Controls", The appliance is reset and restarted.
  2. If the problem occurs again:
    • Switch off the appliance.
    • Unplug the power plug or switch off the circuit breaker in the fuse box.
    • Wait at least 2 minutes.
    • Switch on the circuit breaker in the fuse box or plug in the power plug.
    • Switch on the appliance.
  3. If the problem occurs again:
    • Contact customer service. → "Customer Service"
Water is left in the appliance at the end of the program. Filter system or area under the filters is blocked.
  1. Clean the Filters
  2. Clean the Drain pump
Program has not yet ended.
  • Wait until the program ends or terminate the program with Reset.
  • → "Terminating the wash cycle"
Appliance cannot be switched on or operated. Software update is taking place.
  • Wait until the software update has finished. Appliance functions have failed.
  1. Pull out the power cord plug or switch off the breaker.
  2. Wait at least 2 minutes.
  3. Connect the appliance to the power supply.
  4. Switch the appliance on.
Appliance does not start. The breaker has tripped.
  • Check the relevant breaker. Power cord is not inserted.
Appliance does not start.
  1. Check whether the power outlet is working.
  2. Check whether the power cord plug is properly inserted in the power outlet and on the rear of the appliance.
Appliance door is not closed properly.
  • Close the appliance door.
Wash cycle starts up automatically. You did not wait until the cycle ended.
  • → "Terminating the wash cycle"
Appliance stops during the cycle or cuts out.

Appliance door is not closed properly.

  • Close the appliance door.

Power and/or water supply has been interrupted.

  1. Check the power supply.
  2. Check the water supply.

Upper rack is pressing against inner door and preventing appliance door from being closed securely.

  • Check whether the rear panel of the appliance is being pressed in by a power outlet or a hose holder that has not been removed.
  • Arrange the dishware so that no parts project beyond the rack and prevent the appliance door from closing properly.
Appliance door cannot be closed.

Door lock has been activated.

  • Close the appliance door with greater force.

Door cannot be closed due to installation method.

  • Check whether the appliance has been installed properly. When closed, the appliance door, its decor or attached parts should not knock against adjacent cabinets or the worktop.
Lid on the detergent dispenser cannot be closed. Detergent dispenser or lid are blocked by sticky detergent residue.
  • Remove detergent residue.
Filling valves making knocking noises. Caused by the domestic installation. No fault present in the appliance. Does not affect functioning of the appliance.
  • Can only be remedied in the home installation.
Noise level varies

The noise level can vary, depending on what kind of dishes are loaded and where they are placed.

  • Make sure the dishware is loaded in the most secure way, resting on the tines and not hitting each other. → "Loading dishware"

Spray arm is striking dishes.

  • Arrange dishware so the spray arms do not strike dishware.

With a small load the water jets directly strike against the tub.

  • Distribute the dishware evenly.
  • Load the appliance with more dishware.

Light items of dishware move about during the wash cycle.

  • Position light items of dishware securely.

Clean drain pump

Large food remnants or foreign objects can block the drain pump. As soon as the dishwashing water no longer drains properly, the drain pump must be cleaned.


There may be some sharp debris, such as glass fragments, blocking the drain pump.

  • Use caution when removing parts for cleaning.
  1. Disconnect the appliance from the power supply.
  2. Remove the upper and lower rack.
  3. Remove the filter system.
  4. Scoop out any water.
    Use a sponge if necessary.
  5. Pry the pump cover off using a spoon and grip it by the crosspiece.
    Clean drain pump - Step 1
  6. Lift the pump cover diagonally inward and take it out. a Now you can reach the impeller with your hand.
  7. Remove any food remnants or foreign objects in the area of the impeller.
  8. Insert the pump cover 1 and press down ⁠ 2.
    Clean drain pump - Step 2
    • The pump cover clicks into position.
  9. Install the filter system.
  10. Insert the upper and lower rack.

Transportation, storage and disposal

Removing the appliance

  1. Disconnect the appliance from the power supply.
  2. Turn off the water faucet.
  3. Detach the drain connection.
  4. Detach the water connection.
  5. Loosen any screws fastening the appliance to cabinet parts.
  6. Remove the base panel if fitted.
  7. Pull the appliance out carefully, along with the hose behind it.

Vacation and Storage

NOTICE:
Preparing your unit for vacation

  • Before leaving for vacation during warmer weather, besides turning off the main valve, also turn off water supply at the nearest point to the dishwasher. During colder weather, please follow the instructions for winterizing your unit below.

Winterizing your unit

  • If your dishwasher will be unused for an extended period of time in a location that experiences freezing temperatures (vacation home or through a vacation period), have your dishwasher winterized by an authorized service provider.

Transporting the appliance

To avoid damage to the appliance, empty it before transporting.

Note: Always transport the dishwasher upright to prevent residual water getting into the machine's controls and damaging the appliance.

  1. Remove dishware from the appliance.
  2. Secure loose parts.
  3. Turn the water faucet on.
  4. Switch on the appliance.
  5. Select the cycle with the highest temperature.
  6. Start the cycle.
  7. To drain the appliance, terminate the cycle after approx. 4 minutes. → "Terminating the wash cycle"
  8. Switch off the appliance.
  9. Turn off the water faucet.
  10. To empty the residual water out of the appliance, detach the supply hose and let the water drain out.

Disposal of your old appliance

Environmentally sound disposal allows valuable raw materials to be recycled.


Avoid a risk of entrapment upon disposal.

  • Unplug the appliance from the power outlet.
  • Cut the power cord and remove the door upon discarding the appliance.
  • Check your local area for large appliance recycling programs.

Technical specifications

Technical specifications
Weight Max.: 60 kg/132 lbs
Voltage 120 V, 60 Hz
Power rating 1440 W
Fuse 12 A
Water pressure
  • Min. 7.25 psi (50 kPa)
  • Max. 145 psi (1000 kPa)
Inlet rate Min. 2.6 gal/min
Water temperature

Cold water.

Hot water max.: 140°F/ (60°C)

Load capacity 16 place settings

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

Read all instructions carefully before use. These precautions will reduce the risk of electrical shock, fire and injury to persons. When using kitchen appliances, basic safety precautions must be followed including those in the following pages.

Safety definitions

Here you can find explanations of the safety signal words used in this manual.


This indicates that death or serious injuries may occur as a result of non-observance of this warning.


This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.

NOTICE:
This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

General information

To reduce the risk of fire, electrical shock, or serious injury, observe the following.

  • Read and understand all instructions before using the appliance.
  • Keep the provided documents in a safe place for future reference or for the next owner.
  • Do not connect the appliance if it has been damaged in transit.
  • Severe product damage and/or injury could result from the use of unqualified service technicians or nonoriginal parts. All repairs must be performed by an authorized service provider using only original equipment factory replacement parts.
  • NSF/ANSI 184 Certified residential dishwashers are not intended for licensed food establishments.

Intended use

Only use this appliance:

  • for cleaning household dishware.
  • For normal household use and in enclosed spaces in a residential environment.
  • Up to an altitude of 13,100 ft (4000 m) above sea level.

Restrictive Use

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Grounding instructions

This appliance must be grounded to a metal, permanent wiring system or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the dishwasher. See the Installation Instructions included with this dishwasher for more information on electrical requirements.


Improper connection of the equipment grounding conductor can result in risk of electric shock.

  • This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor. Check with a qualified electrician or authorized service representative if you are in doubt whether the appliance is properly grounded.

Safe use

Follow these safety instructions when using the appliance.


To reduce the risk of serious injury, observe the following.

  • Read all instructions before using this dishwasher.
  • Use this dishwasher only for its intended function, which is the washing of household dishware and kitchenware rated as dishwasher safe.
  • Only use detergents or rinsing agents recommended for use in a dishwasher, and keep them out of the reach of children.
  • Do not abuse, sit or stand on the door or dish racks of the dishwasher.


Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. Hydrogen gas is explosive.

  • Before using a dishwasher that is connected to a hot water system that has been unused for two weeks or longer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is explosive, do not smoke or use an open flame during this time.


To avoid risk of electric shock, observe the following.

  • Only use the appliance in enclosed residential space according to the installation manual.
  • Never expose the appliance to intense heat or humidity.
  • Do not use any steam cleaners or high-pressure cleaners to clean this appliance. If not followed, excess moisture can accumulate.

To avoid risk of injury, when loading items to be washed, observe the following.

  • Locate sharp items so they are not likely to damage the door seal.
  • Load knives and other sharp utensils with their handles up to reduce the risk of cut-type injuries.
  • Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
  • Do not operate your dishwasher unless all enclosure panels are in place.
  • Do not tamper with or override controls and interlocks.

For safe care and operation of your appliance, observe the following.

  • Follow the safety instructions and directions for use on the detergent and rinse aid product labels.
  • Do not use harsh chemicals such as bleach-based products to clean your dishwasher. Some bleach-based products can damage your dishwasher and may present health hazards!
  • Always use caution when opening the door during or following a wash cycle as hot water or steam may escape. Do not fully open the door until water noises have stopped and steam has subsided.
  • To avoid floor damage and possible mold growth, do not allow wet areas to remain around or under the dishwasher.

NOTICE:
Water and power shut off

  • It is highly recommended for the end user to become familiar with the procedure to shut off the incoming water supply and the procedure to shut off the incoming power supply. See the installation instructions or contact your installer for more information.

Risk to children

Follow these safety instructions if there are children in your home.


To reduce risk of injury to children, observe the following.

  • Do not allow children to play in or on the dishwasher.
  • When children become old enough to operate the appliance, it is the responsibility of the parents/legal guardians to ensure the children are instructed in safe practices by qualified persons.
  • Remove the dishwasher door to the washing compartment when removing an old dishwasher for service or discarding.

Preventing material damage

NOTICE:

Harsh chemicals such as bleach-based products can damage your dishwasher.

  • Do not use harsh chemicals such as bleach-based products to clean your dishwasher. Certain cleaning products may damage the appliance.
  • Do not use a steam cleaner.
  • So as not to scratch the finish on the appliance, do not use sponges with a rough surface or abrasive cleaning agents. Avoid stainless steel polish
  • Do not use stainless steel polish on an anti-fingerprint finish or a black stainless finish. Escaping water vapor can damage cabinetry.
  • When the program ends, let the appliance cool down a bit before opening the door. Protect your appliance from the elements.
  • Protect against freezing to avoid possible damage to the fill valve. Damage caused by freezing is not covered by the warranty.

Environmental protection and energy-saving

Saving energy

If you follow these instructions, your appliance will use less power and water.

  • Use the Normal program.
    • The Normal program is energy-efficient and environmentally friendly.
      → "Dishwasher Cycles"

AquaSensor

The AquaSensor is an optical measuring device (light barrier) which measures the turbidity of the washing water. You can save water with the AquaSensor.

The operation of the AquaSensor depends on the selected cycle. If the soiling level is high, the washing water is drained off and replaced with fresh water. If the soiling level is lower, the washing water is used in the next rinse, so reducing water consumption by 3-6 liters. In the Auto cycles the temperature and run time are additionally adjusted to the level of soiling.

AutoAir

The appliance door opens automatically during the drying phase. This ensures a particularly economical drying result.

For optimal drying results, wait until the end of the program before unloading dishware. The wash cycle has ended when no displays on the controls are lit.

If automatic door opening is deactivated, energy consumption increases and the drying phase is usually shortened.

This function can be set using the Home Connect® app.

Familiarizing yourself with your appliance

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Bosch SHP65CM2N - Dishwasher 24" Manual

Advertisement

Need Assistance?

Do you have a question about the SHP65CM2N that isn't answered in the manual? Leave your question here.

Error while submitting your question. Please, reload page and try again.

Thank you! Your question has been received!

Table of Contents
