PANEL DESCRIPTION

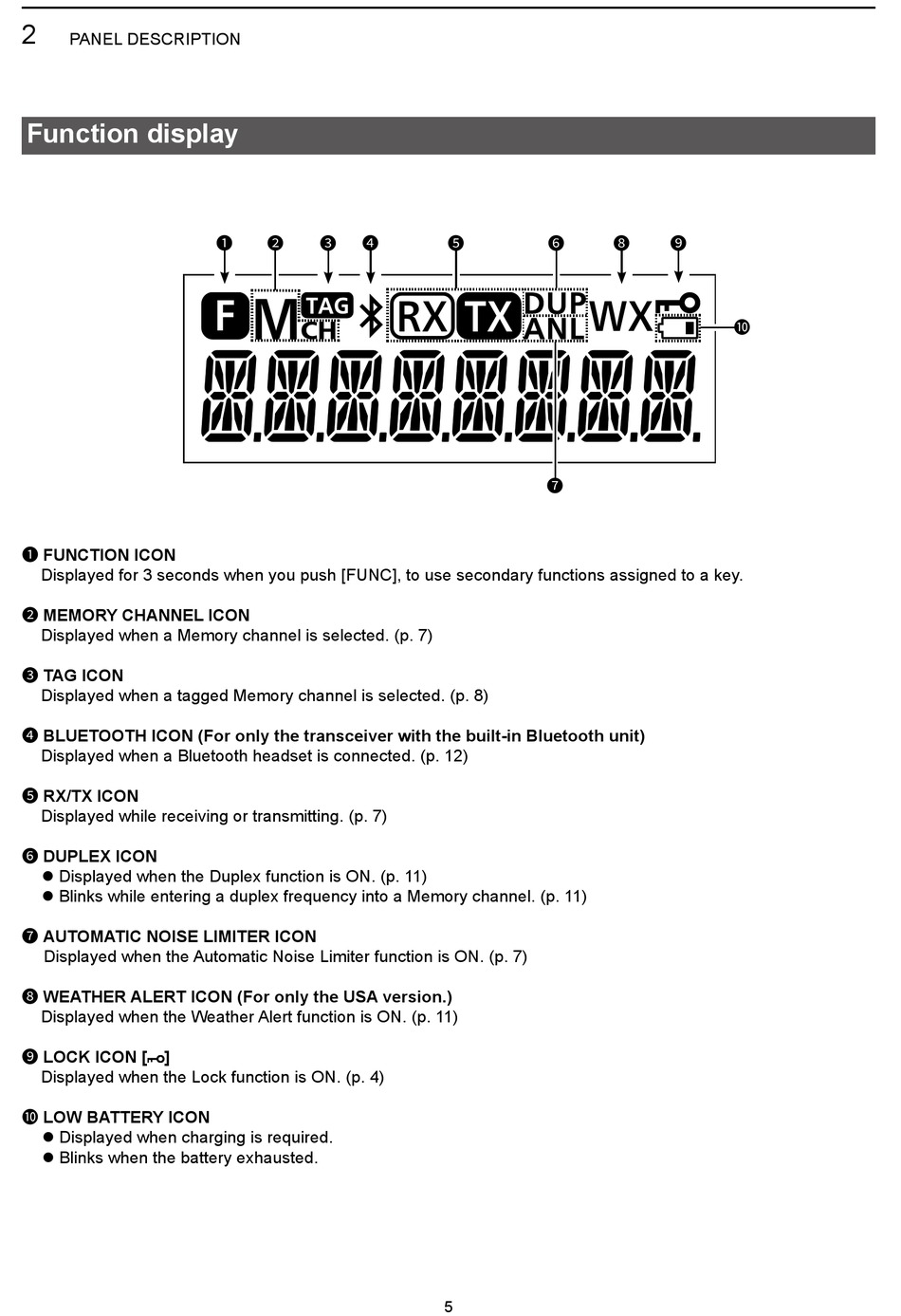

Function display

1 FUNCTION ICON
Displayed for 3 seconds when you push [FUNC], to use secondary functions assigned to a key.
2 MEMORY CHANNEL ICON
Displayed when a Memory channel is selected. (p. 7)
3 TAG ICON
Displayed when a tagged Memory channel is selected. (p. 8)
4 BLUETOOTH ICON (For only the transceiver with the built-in Bluetooth unit)
Displayed when a Bluetooth headset is connected. (p. 12)
5 RX/TX ICON
Displayed while receiving or transmitting. (p. 7)
6 DUPLEX ICON
z Displayed when the Duplex function is ON. (p. 11)
z Blinks while entering a duplex frequency into a Memory channel. (p. 11)
 7 AUTOMATIC NOISE LIMITER ICON
Displayed when the Automatic Noise Limiter function is ON. (p. 7)
8 WEATHER ALERT ICON (For only the USA version.)
Displayed when the Weather Alert function is ON. (p. 11)
 9 LOCK ICON [ ]
Displayed when the Lock function is ON. (p. 4)
10 LOW BATTERY ICON
z Displayed when charging is required.
z Blinks when the battery exhausted.
1 2 3 4 5 6 8
7
5
9
10
