Icom IC-A16 Full Manual page 4

1
ACCESSORIES ATTACHMENTS
Attaching accessories (Continued)

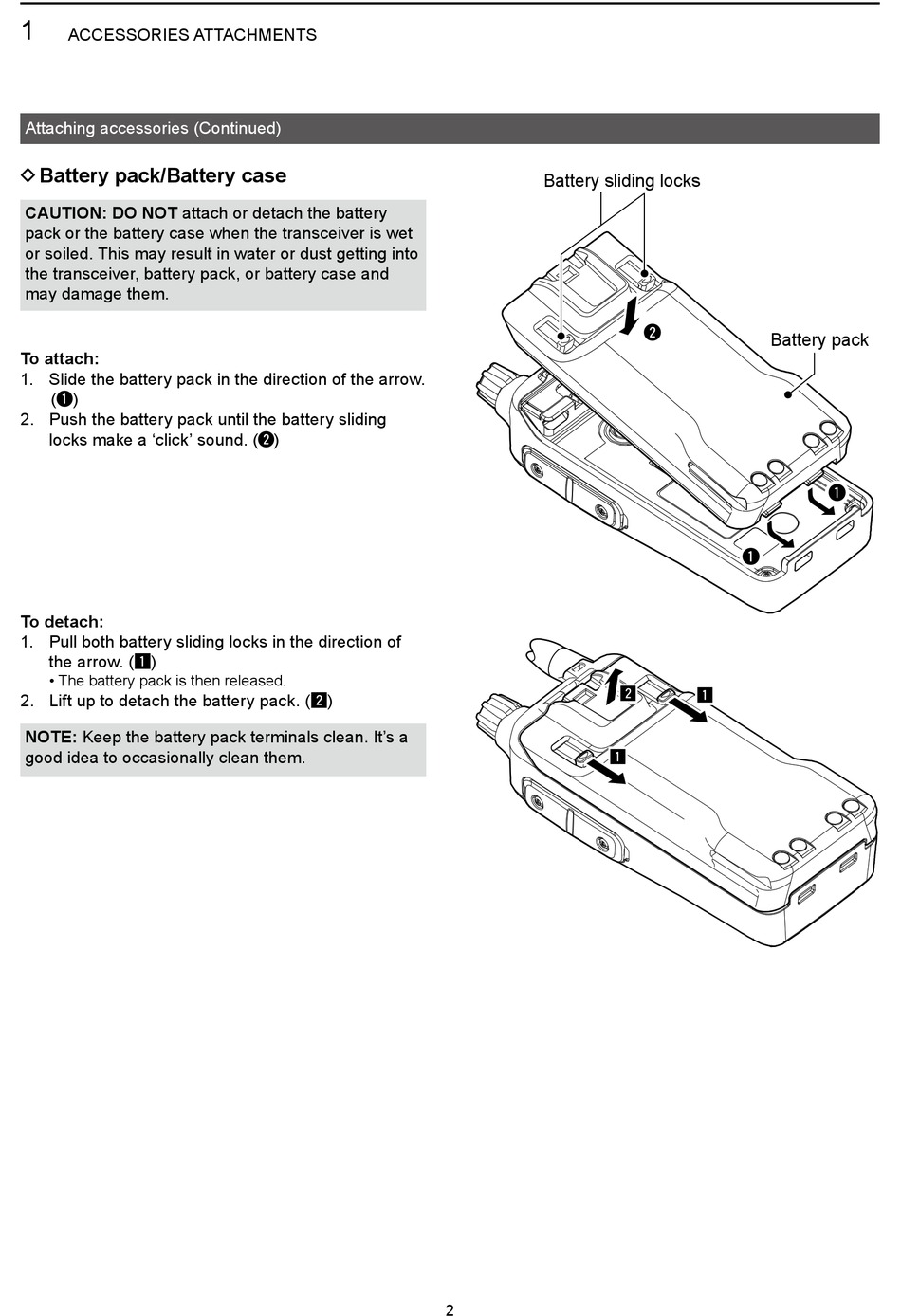

D Battery pack/Battery case
CAUTION: DO NOT attach or detach the battery
pack or the battery case when the transceiver is wet
or soiled. This may result in water or dust getting into
the transceiver, battery pack, or battery case and
may damage them.
To attach:
1. Slide the battery pack in the direction of the arrow.
(q)
2. Push the battery pack until the battery sliding
locks make a 'click' sound. (w)
To detach:
1. Pull both battery sliding locks in the direction of
the arrow. (z)
• The battery pack is then released.
2. Lift up to detach the battery pack. (x)
NOTE: Keep the battery pack terminals clean. It's a
good idea to occasionally clean them.
Battery sliding locks
z
2
w
Battery pack
q
x
z
q
