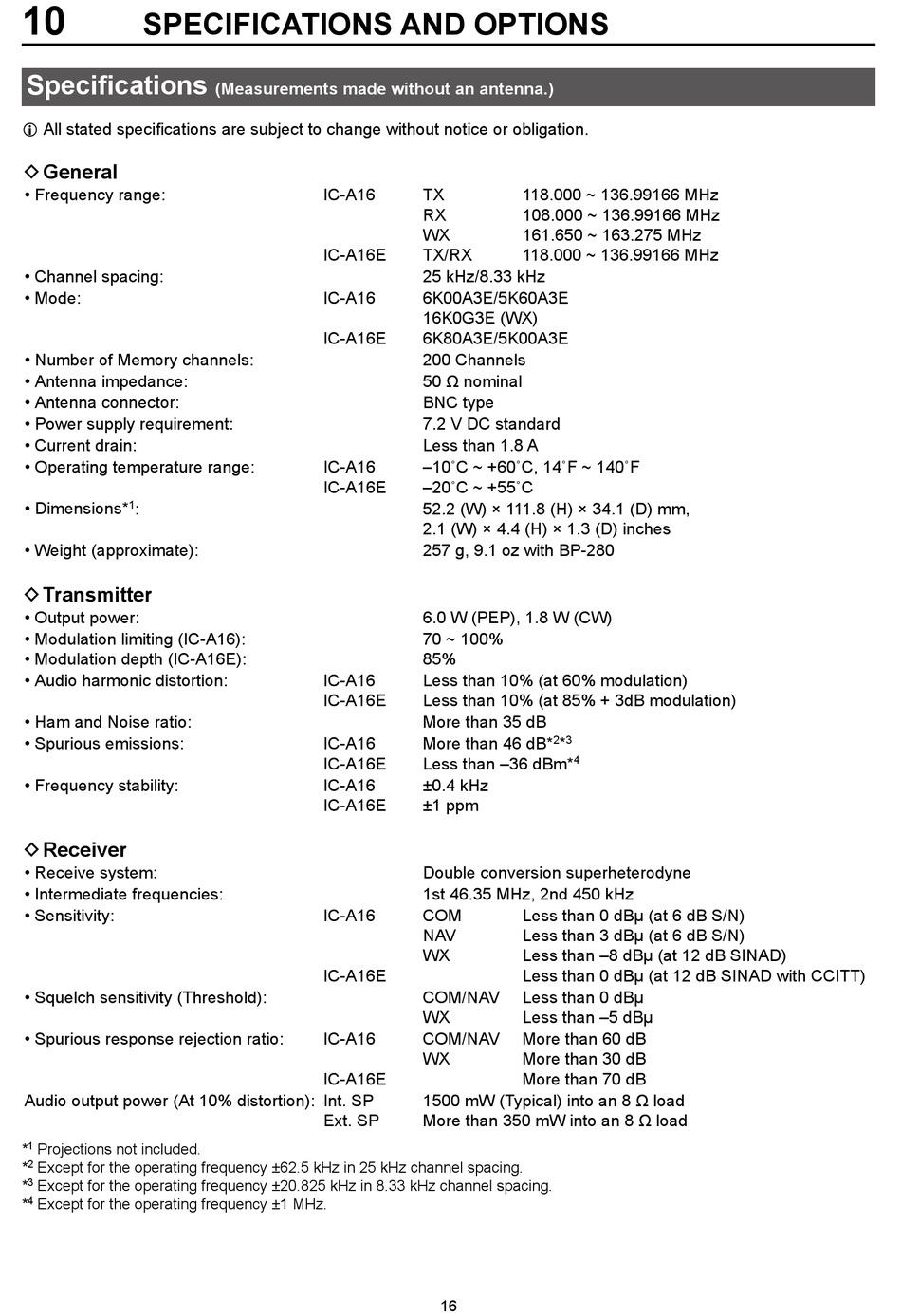

SPECIFICATIONS AND OPTIONS

Specifications

L All stated specifications are subject to change without notice or obligation.
D General
• Frequency range:
• Channel spacing:
• Mode:
• Number of Memory channels:
• Antenna impedance:
• Antenna connector:
• Power supply requirement:
• Current drain:
• Operating temperature range:
• Dimensions* 1 :
• Weight (approximate):
D Transmitter
• Output power:
• Modulation limiting (IC-A16):
• Modulation depth (IC-A16E):
• Audio harmonic distortion:
• Ham and Noise ratio:
• Spurious emissions:
• Frequency stability:
D Receiver
• Receive system:
• Intermediate frequencies:
• Sensitivity:
• Squelch sensitivity (Threshold):
• Spurious response rejection ratio:
Audio output power (At 10% distortion): Int. SP
* 1 Projections not included.
* 2 Except for the operating frequency ±62.5 kHz in 25 kHz channel spacing.
* 3 Except for the operating frequency ±20.825 kHz in 8.33 kHz channel spacing.
* 4 Except for the operating frequency ±1 MHz.
(Measurements made without an antenna.)
IC-A16
IC-A16E
IC-A16
IC-A16E
IC-A16
IC-A16E
IC-A16
IC-A16E
IC-A16
IC-A16E
IC-A16
IC-A16E
IC-A16
IC-A16E
IC-A16
IC-A16E
Ext. SP
TX 118.000 ~ 136.99166 MHz
RX 108.000 ~ 136.99166 MHz
WX 161.650 ~ 163.275 MHz
TX/RX 118.000 ~ 136.99166 MHz
25 kHz/8.33 kHz
6K00A3E/5K60A3E
16K0G3E (WX)
6K80A3E/5K00A3E
200 Channels
50 Ω nominal
BNC type
7.2 V DC standard
Less than 1.8 A
–10˚C ~ +60˚C, 14˚F ~ 140˚F
–20˚C ~ +55˚C
52.2 (W) × 111.8 (H) × 34.1 (D) mm,
2.1 (W) × 4.4 (H) × 1.3 (D) inches
257 g, 9.1 oz with BP-280
6.0 W (PEP), 1.8 W (CW)
70 ~ 100%
85%
Less than 10% (at 60% modulation)
Less than 10% (at 85% + 3dB modulation)
More than 35 dB
More than 46 dB* 2 * 3
Less than –36 dBm* 4
±0.4 kHz
±1 ppm
Double conversion superheterodyne
1st 46.35 MHz, 2nd 450 kHz
COM Less than 0 dBμ (at 6 dB S/N)
NAV Less than 3 dBμ (at 6 dB S/N)
WX Less than –8 dBμ (at 12 dB SINAD)
Less than 0 dBμ (at 12 dB SINAD with CCITT)
COM/NAV Less than 0 dBμ
WX Less than –5 dBμ
COM/NAV More than 60 dB
WX More than 30 dB
More than 70 dB
1500 mW (Typical) into an 8 Ω load
More than 350 mW into an 8 Ω load
16
