4.3.4 Calibration and Auto Bed Leveling (ABL)
Calibrate the printheads and surface probe. The surface probe is used for ABL.
ABL probes the bed at three points to enable bed-leveling compensation. It uses a matrix to
compensate for tilt in the bed or print surface.
The surface probe only needs to be calibrated once. The printer will remember this calibration and
apply it for each print. You must enable ABL before printing.
1
6

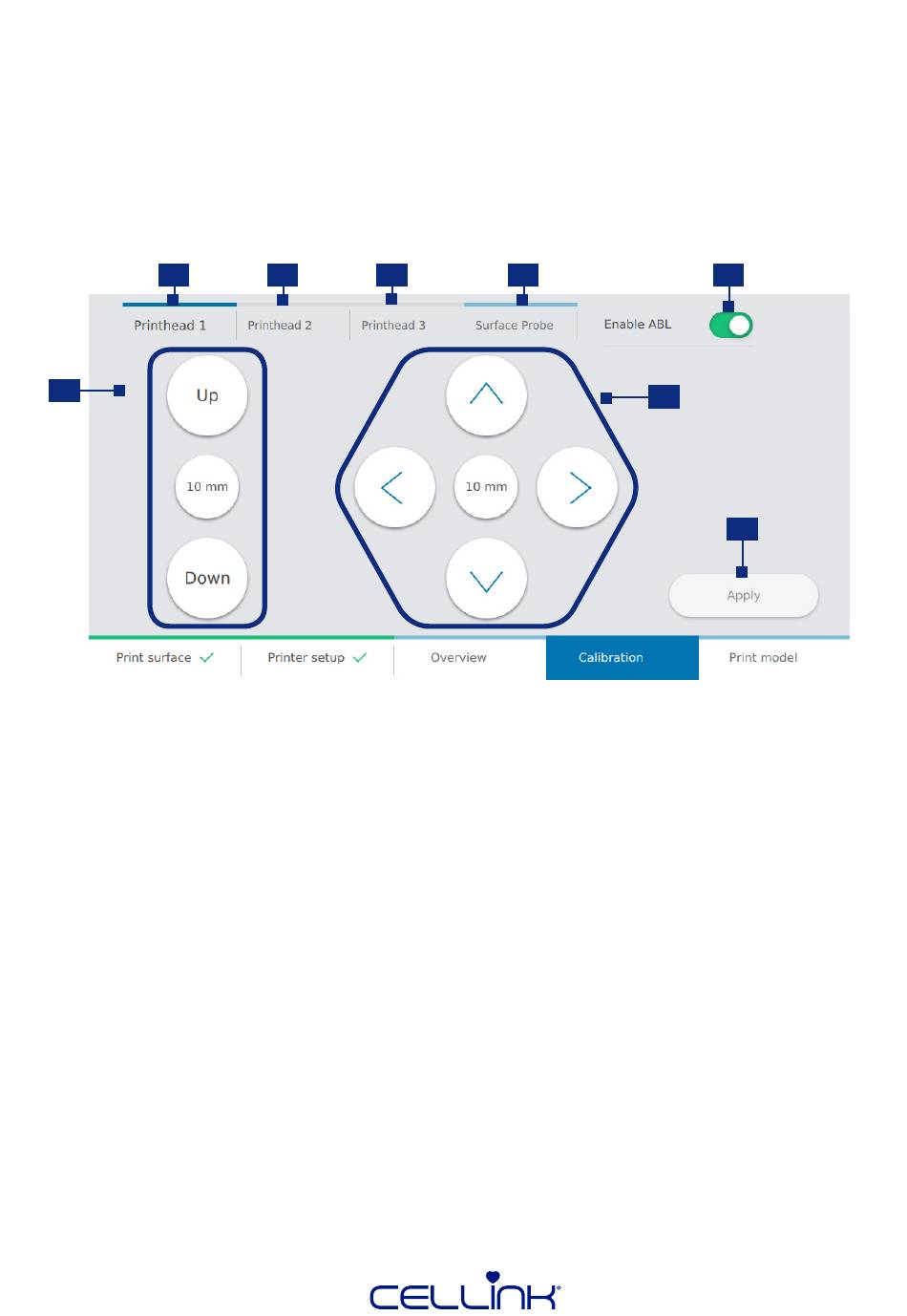

1. Printhead 1 - Calibration tab for printhead 1.
2. Printhead 2 - Calibration tab for printhead 2.
3. Printhead 3 - Calibration tab for printhead 3.
4. Surface probe - Calibration tab for the surface probe.
5. Enable ABL - Turn ABL on or off. ABL is enabled after calibrating the surface probe and going
back to the Printhead 1 tab.
The ABL should be enabled after calibrating the surface probe and going back to the
Printhead 1 tab.
6. Z axis command - Controls the position of the print bed along the Z axis.
7. X, Y axis command - Controls the position of the printhead and the surface probe along the X
and Y axis.
8. Apply command - Register the calibration settings.
2 3 4
7
5
8
