BIO X Autocalibration Kit
Installation and Quick-start Guide
The Autocalibration Kit enables Automatic Bed Leveling (ABL) and automatic X, Y and Z
calibration. These features are available on HeartOS software version 1.7 and above.
The BIO X autocalibration removes the potential for user error when calibrating the tip of the
nozzle relative to the printing surface or to another nozzle. It does this by probing and aligning
all printhead nozzle tips in all axes (X, Y and Z), and includes ABL.
ABL measures the print bed surface and adjusts all movements to follow its tilt and contours to
improve the quality of bioprinted structures. ABL compensates for any height differences
present in a print bed or printing surface. After a brief calibration procedure, the print bed
adjusts the Z height while running the bioprinting protocol, ensuring the construct is level
relative to the printing surface. ABL requires a surface probe to automatically measure the
print bed's height at various points.
Boston, U.S.
Gothenburg, Sweden
Arvid Wallgrens Backe 20,
100 Franklin St.，
Gothenburg, 41346
Boston, MA 02110
Virginia, U.S.
2000 Kraft Dr., Suite 2125
Blacksburg, VA 24060
www.cellink.com | +1 (833) CELLINK
Kyoto, Japan
46-29 Yoshida-Shimo Adachi-
cho, Sakyo-ku, Kyoto
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BIO X and is the answer not in the manual?

Questions and answers

Related Manuals for Cellink BIO X

Summary of Contents for Cellink BIO X

  • Page 1 These features are available on HeartOS software version 1.7 and above. The BIO X autocalibration removes the potential for user error when calibrating the tip of the nozzle relative to the printing surface or to another nozzle. It does this by probing and aligning all printhead nozzle tips in all axes (X, Y and Z), and includes ABL.

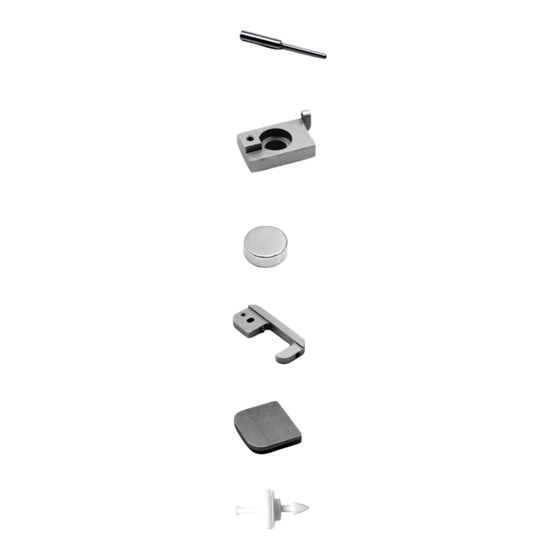

  • Page 2 BIO X Autocalibration Kit parts Part Quantity Surface probe Surface probe stabilizer Surface probe magnet Z-station base Z-station plate XY printhead calibration lever Kyoto, Japan Virginia, U.S. Boston, U.S. Gothenburg, Sweden 2000 Kraft Dr., Suite 2125 46-29 Yoshida-Shimo Adachi- Arvid Wallgrens Backe 20, 100 Franklin St.，...
