Register Direct, Two Registers Rd and Rr

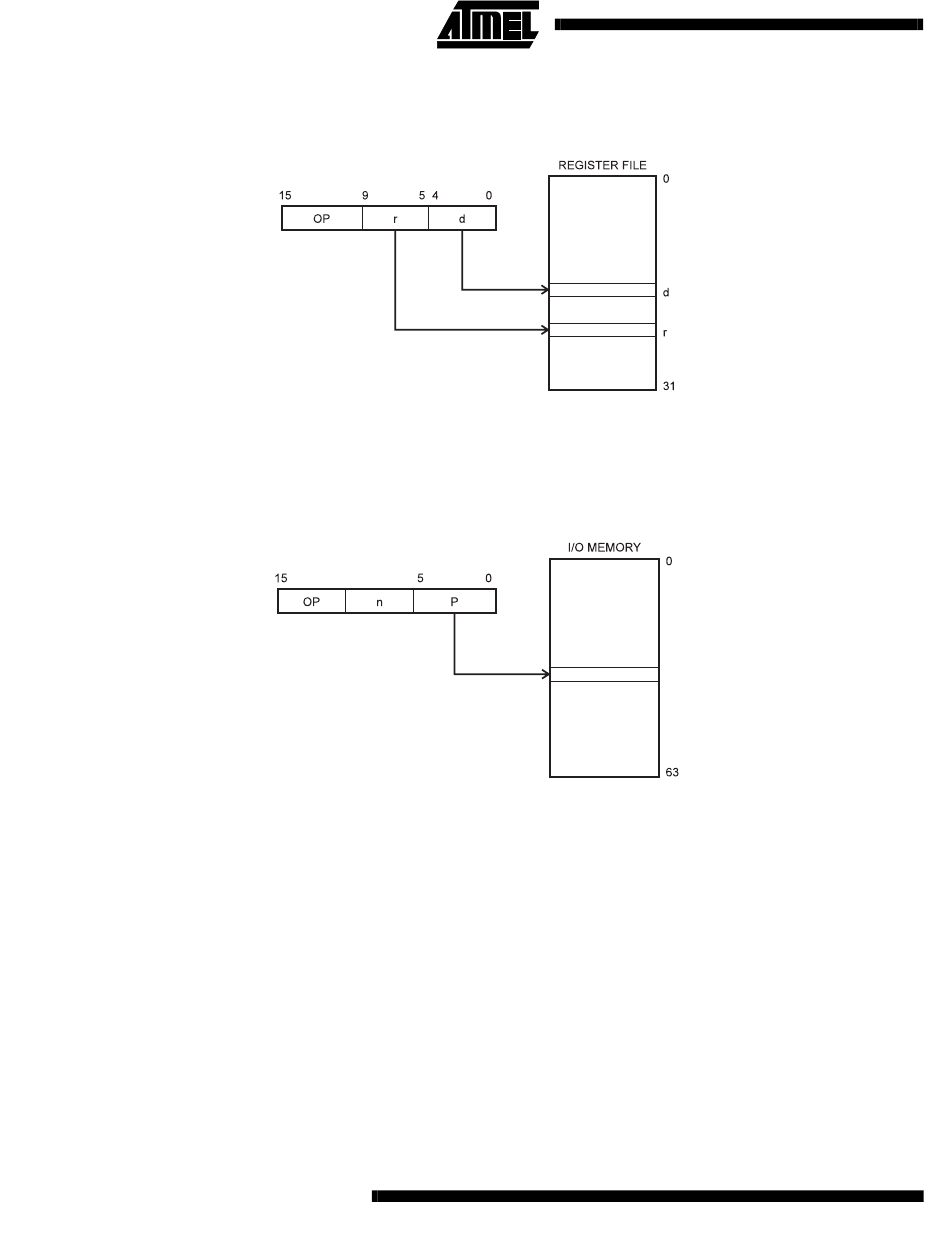

Figure 8. Direct Register Addressing, Two Registers
Operands are contained in register r (Rr) and d (Rd). The result is stored in register d (Rd).
I/O Direct
Figure 9. I/O Direct Addressing
Operand address is contained in 6 bits of the instruction word. n is the destination or source register address.
AT90S1200
8
