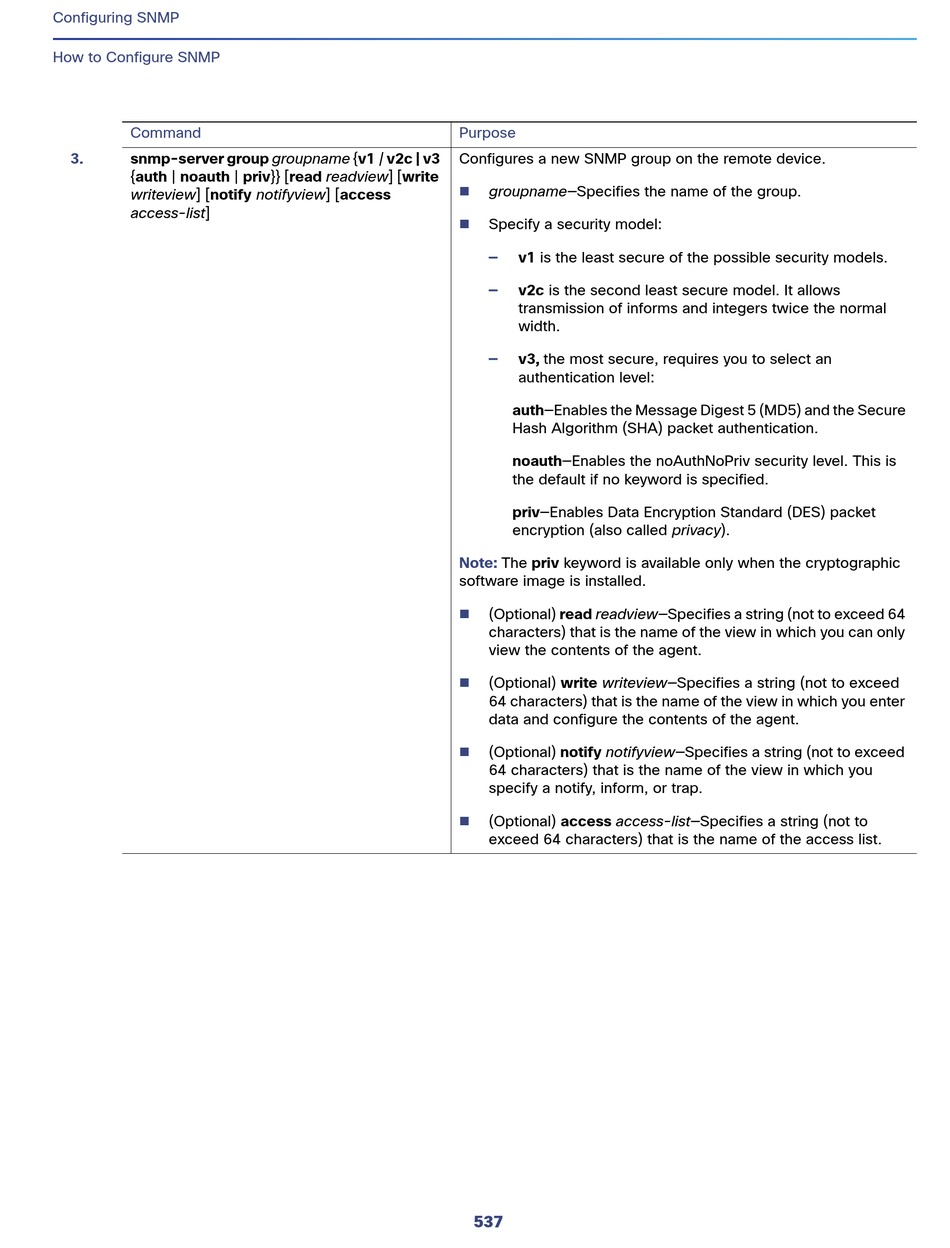

Cisco IE-4000 Software Configuration Manual page 541

Configuring SNMP
How to Configure SNMP
Command
3. snmp-server group groupname {v1 | v2c | v3
{auth | noauth | priv}} [read readview] [write
writeview] [notify notifyview] [access
access-list]
Purpose
Configures a new SNMP group on the remote device.

groupname—Specifies the name of the group.

Specify a security model:
— v1 is the least secure of the possible security models.
— v2c is the second least secure model. It allows
transmission of informs and integers twice the normal
width.
— v3, the most secure, requires you to select an
authentication level:
auth—Enables the Message Digest 5 (MD5) and the Secure
Hash Algorithm (SHA) packet authentication.
noauth—Enables the noAuthNoPriv security level. This is
the default if no keyword is specified.
priv—Enables Data Encryption Standard (DES) packet
encryption (also called privacy).
Note: The priv keyword is available only when the cryptographic
software image is installed.

(Optional) read readview—Specifies a string (not to exceed 64
characters) that is the name of the view in which you can only
view the contents of the agent.

(Optional) write writeview—Specifies a string (not to exceed
64 characters) that is the name of the view in which you enter
data and configure the contents of the agent.

(Optional) notify notifyview—Specifies a string (not to exceed
64 characters) that is the name of the view in which you
specify a notify, inform, or trap.

(Optional) access access-list—Specifies a string (not to
exceed 64 characters) that is the name of the access list.
537
