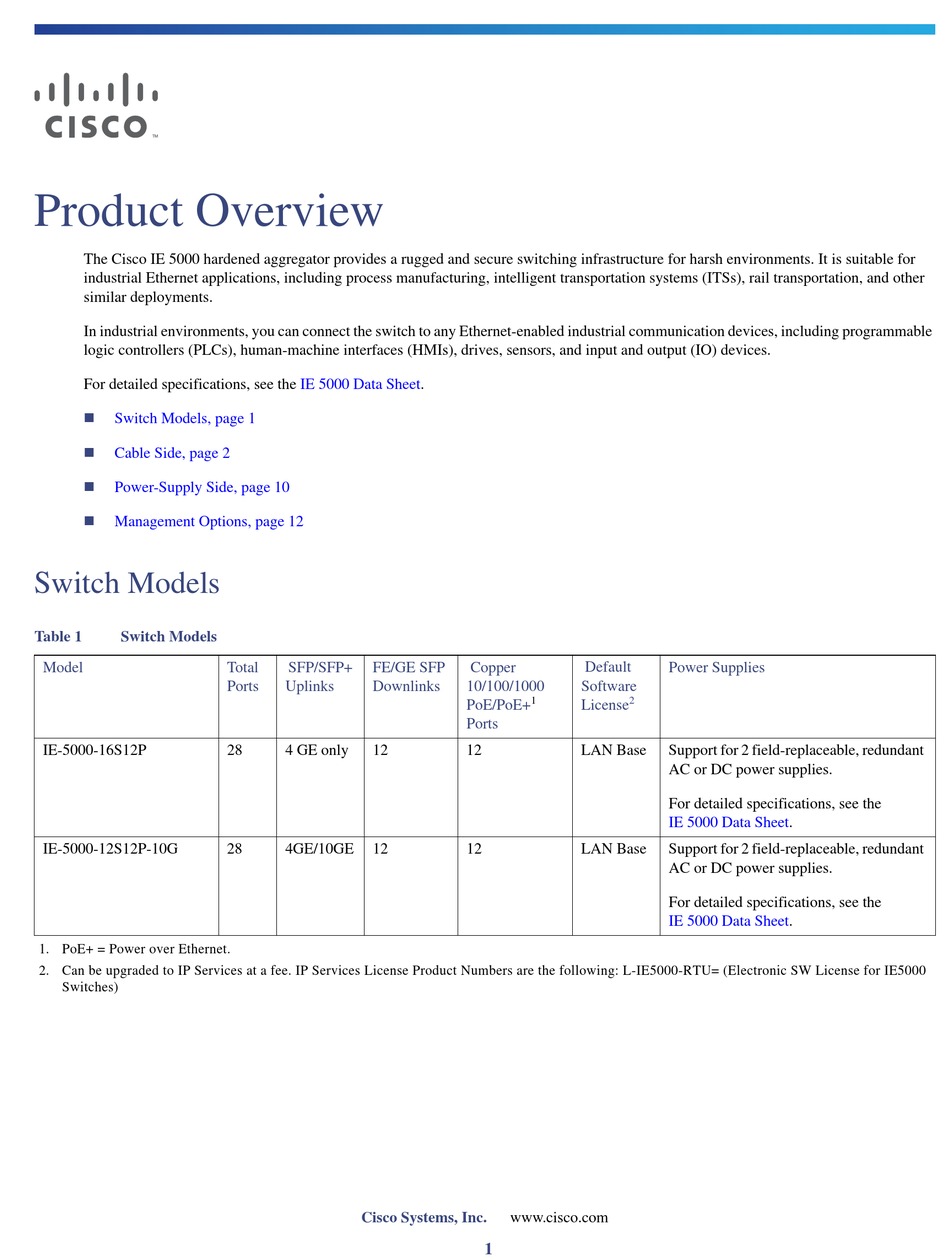

Product Overview
The Cisco IE 5000 hardened aggregator provides a rugged and secure switching infrastructure for harsh environments. It is suitable for
industrial Ethernet applications, including process manufacturing, intelligent transportation systems (ITSs), rail transportation, and other
similar deployments.
In industrial environments, you can connect the switch to any Ethernet-enabled industrial communication devices, including programmable
logic controllers (PLCs), human-machine interfaces (HMIs), drives, sensors, and input and output (IO) devices.
For detailed specifications, see the
Switch Models, page 1
Cable Side, page 2
Power-Supply Side, page 10
Management Options, page 12
Switch Models
Table 1
Switch Models
Model
IE-5000-16S12P
IE-5000-12S12P-10G
1. PoE+ = Power over Ethernet.
2. Can be upgraded to IP Services at a fee. IP Services License Product Numbers are the following: L-IE5000-RTU= (Electronic SW License for IE5000
Switches)
IE 5000 Data
Sheet.
Total
SFP/SFP+
FE/GE SFP
Ports
Uplinks
Downlinks
28
4 GE only
12
28
4GE/10GE
12
Cisco Systems, Inc.
Copper
Default
10/100/1000
Software
1
2
PoE/PoE+
License
Ports
12
LAN Base
12
LAN Base
www.cisco.com
1
Power Supplies
Support for 2 field-replaceable, redundant
AC or DC power supplies.
For detailed specifications, see the
IE 5000 Data
Sheet.
Support for 2 field-replaceable, redundant
AC or DC power supplies.
For detailed specifications, see the
IE 5000 Data
Sheet.
Advertisement
Table of Contents
Related Manuals for Cisco IE-5000-16S12P
Summary of Contents for Cisco IE-5000-16S12P
-
Page 1: Product Overview
Product Overview The Cisco IE 5000 hardened aggregator provides a rugged and secure switching infrastructure for harsh environments. It is suitable for industrial Ethernet applications, including process manufacturing, intelligent transportation systems (ITSs), rail transportation, and other similar deployments. In industrial environments, you can connect the switch to any Ethernet-enabled industrial communication devices, including programmable logic controllers (PLCs), human-machine interfaces (HMIs), drives, sensors, and input and output (IO) devices. -
Page 2: Cable Side
Product Overview Cable Side Cable Side Figure 1 Cisco IE-5000 Cable-Side View 11 10 LEDs Power-input terminal Display mode button Alarm port GPS antenna port Console port Digital Timecode I/O (IRIG) Four 1000 SFP/10G SFP+ Ports (Uplinks) (Not currently supported by software) -
Page 3: Console Ports
The USB console interface speeds are the same as the RJ-45 console interface speeds. To use the USB console port, you must install the Cisco Windows USB device driver on the device that is connected to the USB console port (device running with Microsoft Windows). See... -
Page 4: Alarm Ports
Product Overview Cable Side Figure 2 USB Mini-Type B Port The configurable inactivity timeout reactivates the RJ-45 console port if the USB console port is activated, but no input activity occurs on it for a specified time period. When the USB console port deactivates due to a timeout, you can restore its operation by disconnecting and reconnecting the USB cable. -
Page 5: Sd Flash Memory Card
The 10/100/1000 PoE ports on the Cisco IE-5000 switches provide PoE support for devices that are compliant with IEEE 802.3af/802.3at. The Cisco prestandard PoE is also supported for Cisco IP Phones and Cisco Aironet Access Points. The PoE ports on the switch deliver up to 30 W of PoE+ power. -
Page 6: Switch Panel Leds
Product Overview Cable Side LEDs You can use the switch system and port LEDs to monitor switch activity and performance. Switch Panel LEDs Figure 4 Switch LEDs (Cable Side) Ethernet ports PSU1 and 2 (power supply 1 and 2) 10G Ethernet ports OUT (alarm output) 10G Ethernet ports Alarms 2 and 4... - Page 7 Product Overview Cable Side Table 2 Port Mode LEDs Mode LED Port Mode Description All Off Port status The port status. This is the default mode. SPEED Port speed The port operating speed: 10, 100, 1000 mbps or 10 Gbps. DUPLX Port duplex mode The port duplex mode: full duplex or half duplex.
-
Page 8: Power-Supply Module Leds
PoE+ faults occur when noncompliant cabling or powered devices are connected to a PoE+ port. Use only standard-compliant cabling to connect Cisco prestandard IP Phones and wireless access points or IEEE 802.3af/at-compliant devices to PoE+ ports. You must remove from the network any cable or device that causes a PoE+ fault. -
Page 9: Alarm Leds
Product Overview Cable Side Alarm LEDs Table 5 Alarm LEDs Color System Status 1-4 Input Alarms Green Alarm not present Minor alarm present Blinking red Major alarm present Output Alarm Green Alarm not present Alarm condition present SD Flash Memory Card LED Table 6 SD Flash Card LED Color... -
Page 10: System Led
Product Overview Power-Supply Side System LED Table 8 System LED Color System Status System is not powered on. Blinking green Power-On Self-Test (POST) is in progress. Green System is operating normally. System is receiving power but is not functioning properly. Power-Supply Side The power-supply side has the LED panel and two power-supply slots for the removable power supplies. -
Page 11: Power-Supply Side Leds
Product Overview Power-Supply Side Power-Supply Side LEDs Figure 6 Switch LEDs Ethernet ports OUT (alarm output) 2 &3 10G Ethernet ports Alarms 2 and 4 Alarms 1 and 3 Synchronous Ethernet status Timecode status (not currently supported by software) Redundancy status GPS status Port duplex status SD (SD flash memory card) -
Page 12: Management Options
Prime Infrastructure Cisco Prime Infrastructure simplifies the management of wireless and wired networks. It offers Day 0 and 1 provisioning, as well as Day N assurance from the branch to the data center. We call it One Management. With this single view and point of control, you can reap the benefits of One Management across both network and compute.
