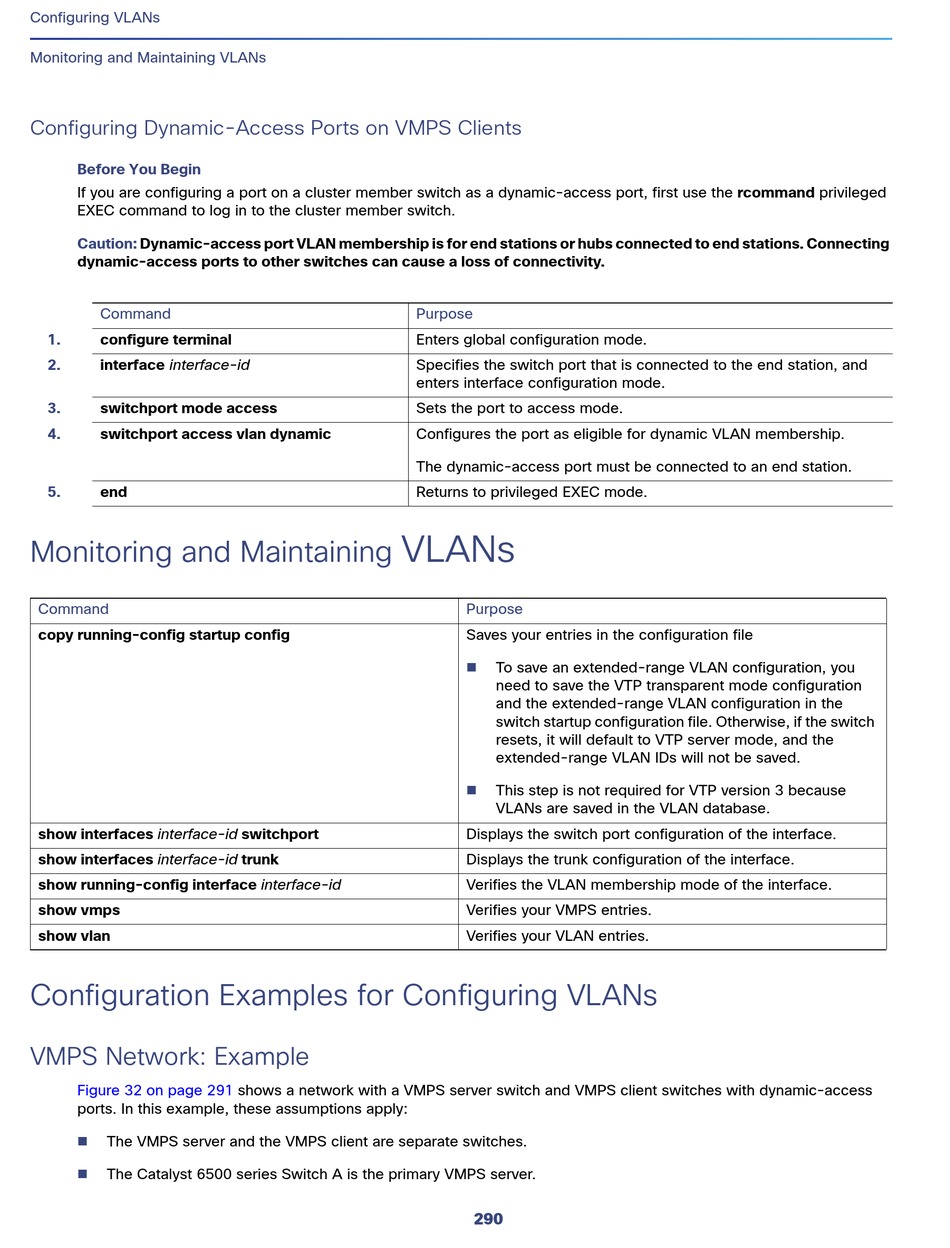

Configuring VLANs
Monitoring and Maintaining VLANs
Configuring Dynamic-Access Ports on VMPS Clients
Before You Begin
If you are configuring a port on a cluster member switch as a dynamic-access port, first use the rcommand privileged
EXEC command to log in to the cluster member switch.
Caution: Dynamic-access port VLAN membership is for end stations or hubs connected to end stations. Connecting
dynamic-access ports to other switches can cause a loss of connectivity.
Command
1. configure terminal
2. interface interface-id
3. switchport mode access
4. switchport access vlan dynamic
5. end
Monitoring and Maintaining
Command
copy running-config startup config
show interfaces interface-id switchport
show interfaces interface-id trunk
show running-config interface interface-id
show vmps
show vlan
Configuration Examples for Configuring VLANs
VMPS Network: Example
Figure 32 on page 291
ports. In this example, these assumptions apply:

The VMPS server and the VMPS client are separate switches.

The Catalyst 6500 series Switch A is the primary VMPS server.
VLANs
shows a network with a VMPS server switch and VMPS client switches with dynamic-access
Purpose
Enters global configuration mode.
Specifies the switch port that is connected to the end station, and
enters interface configuration mode.
Sets the port to access mode.
Configures the port as eligible for dynamic VLAN membership.
The dynamic-access port must be connected to an end station.
Returns to privileged EXEC mode.
Purpose
Saves your entries in the configuration file

To save an extended-range VLAN configuration, you
need to save the VTP transparent mode configuration
and the extended-range VLAN configuration in the
switch startup configuration file. Otherwise, if the switch
resets, it will default to VTP server mode, and the
extended-range VLAN IDs will not be saved.

This step is not required for VTP version 3 because
VLANs are saved in the VLAN database.
Displays the switch port configuration of the interface.
Displays the trunk configuration of the interface.
Verifies the VLAN membership mode of the interface.
Verifies your VMPS entries.
Verifies your VLAN entries.
