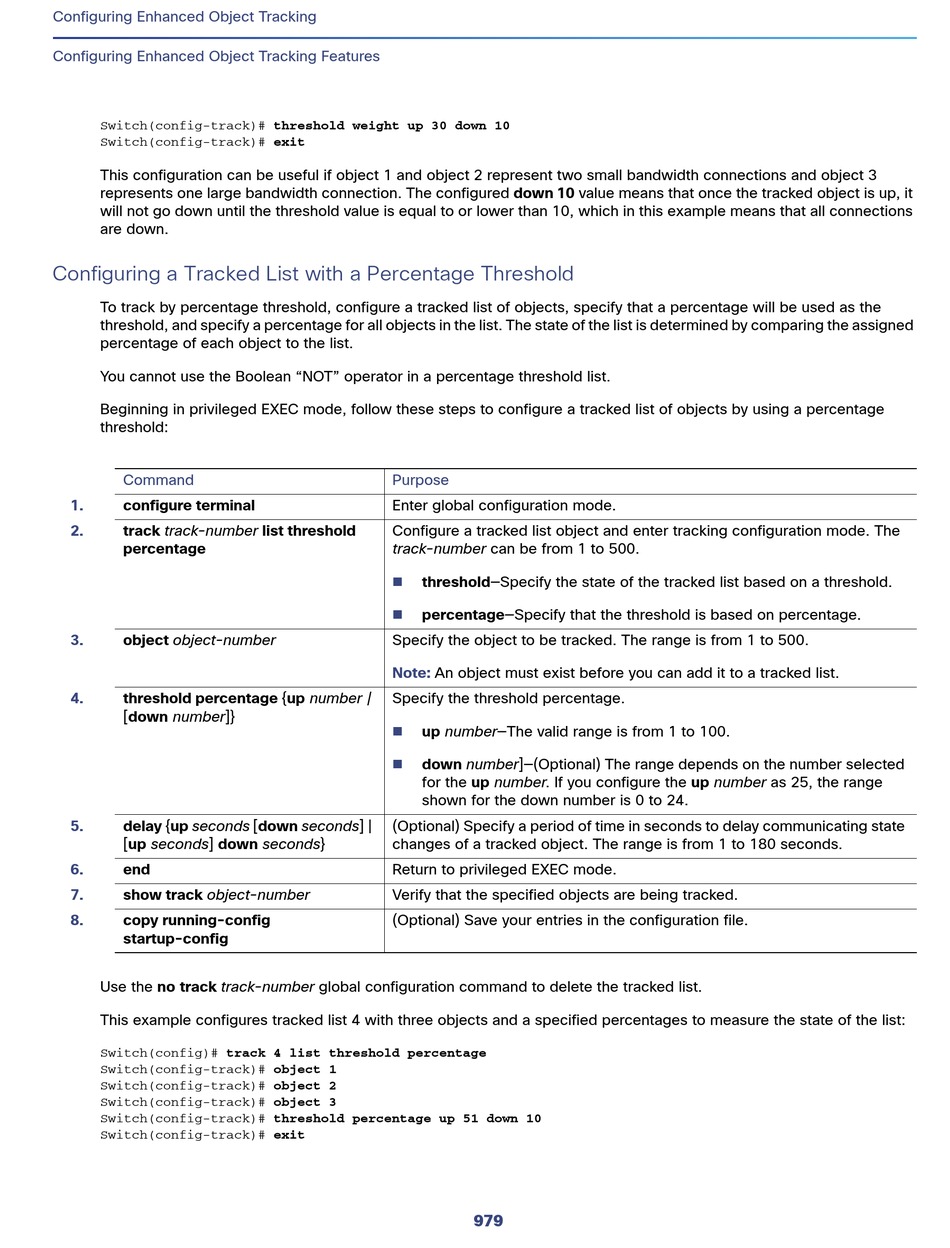

Configuring Enhanced Object Tracking
Configuring Enhanced Object Tracking Features
Switch(config-track)# threshold weight up 30 down 10
Switch(config-track)# exit
This configuration can be useful if object 1 and object 2 represent two small bandwidth connections and object 3
represents one large bandwidth connection. The configured down 10 value means that once the tracked object is up, it
will not go down until the threshold value is equal to or lower than 10, which in this example means that all connections
are down.

Configuring a Tracked List with a Percentage Threshold

To track by percentage threshold, configure a tracked list of objects, specify that a percentage will be used as the
threshold, and specify a percentage for all objects in the list. The state of the list is determined by comparing the assigned
percentage of each object to the list.
You cannot use the Boolean "NOT" operator in a percentage threshold list.
Beginning in privileged EXEC mode, follow these steps to configure a tracked list of objects by using a percentage
threshold:
Command
1. configure terminal
2. track track-number list threshold
percentage
3. object object-number
4. threshold percentage {up number |
[down number]}
5. delay {up seconds [down seconds] |
[up seconds] down seconds}
6. end
7. show track object-number
8. copy running-config
startup-config
Use the no track track-number global configuration command to delete the tracked list.
This example configures tracked list 4 with three objects and a specified percentages to measure the state of the list:
Switch(config)# track 4 list threshold percentage
Switch(config-track)# object 1
Switch(config-track)# object 2
Switch(config-track)# object 3
Switch(config-track)# threshold percentage up 51 down 10
Switch(config-track)# exit
Purpose
Enter global configuration mode.
Configure a tracked list object and enter tracking configuration mode. The
track-number can be from 1 to 500.

threshold—Specify the state of the tracked list based on a threshold.

percentage—Specify that the threshold is based on percentage.
Specify the object to be tracked. The range is from 1 to 500.
Note: An object must exist before you can add it to a tracked list.
Specify the threshold percentage.

up number—The valid range is from 1 to 100.

down number]—(Optional) The range depends on the number selected
for the up number. If you configure the up number as 25, the range
shown for the down number is 0 to 24.
(Optional) Specify a period of time in seconds to delay communicating state
changes of a tracked object. The range is from 1 to 180 seconds.
Return to privileged EXEC mode.
Verify that the specified objects are being tracked.
(Optional) Save your entries in the configuration file.
