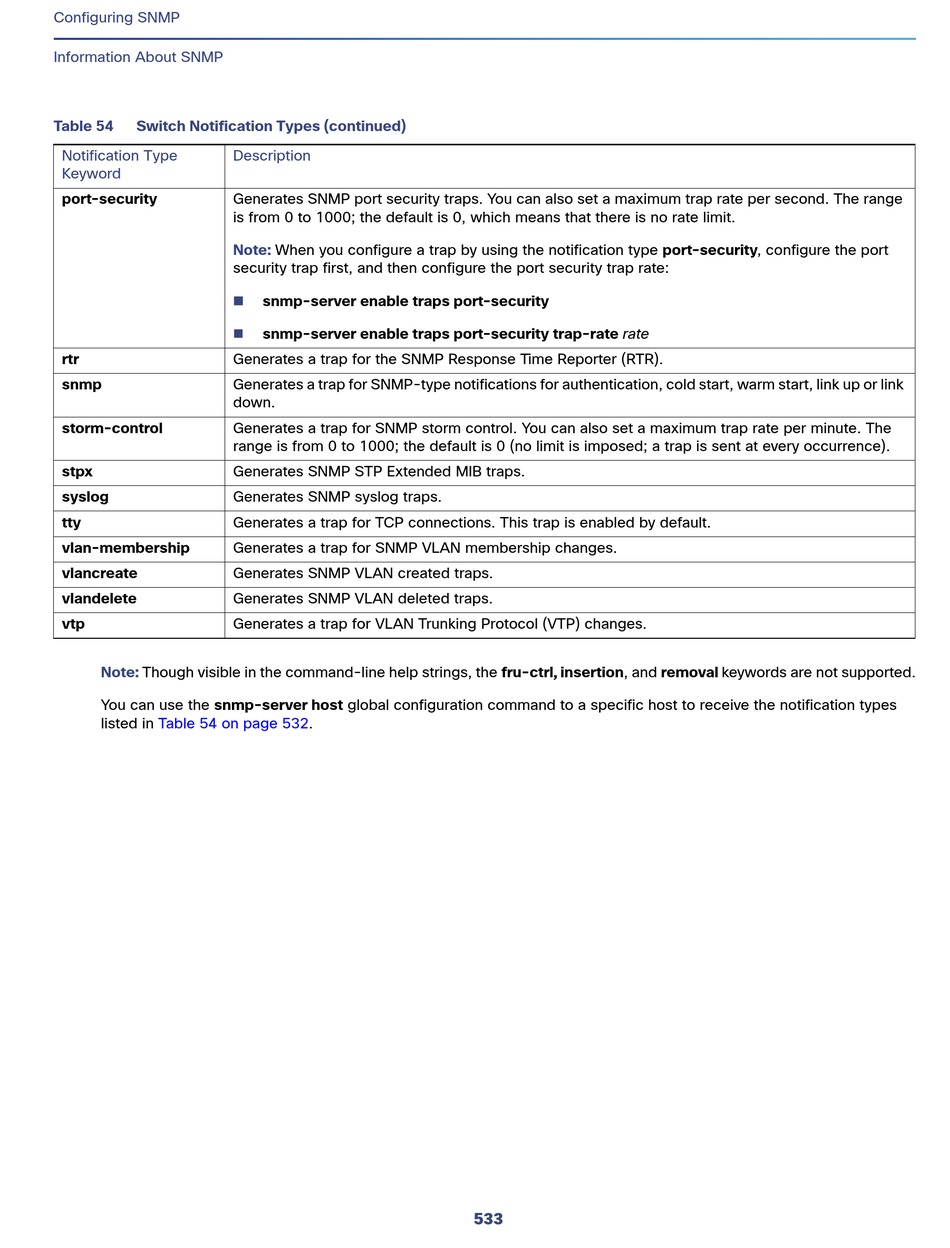

Cisco IE-4000 Software Configuration Manual page 537

Configuring SNMP
Information About SNMP
Table 54 Switch Notification Types (continued)
Notification Type
Keyword
port-security
rtr
snmp
storm-control
stpx
syslog
tty
vlan-membership
vlancreate
vlandelete
vtp
Note: Though visible in the command-line help strings, the fru-ctrl, insertion, and removal keywords are not supported.
You can use the snmp-server host global configuration command to a specific host to receive the notification types
listed in Table 54 on page
Description
Generates SNMP port security traps. You can also set a maximum trap rate per second. The range
is from 0 to 1000; the default is 0, which means that there is no rate limit.
Note: When you configure a trap by using the notification type port-security, configure the port
security trap first, and then configure the port security trap rate:

snmp-server enable traps port-security

snmp-server enable traps port-security trap-rate rate
Generates a trap for the SNMP Response Time Reporter (RTR).
Generates a trap for SNMP-type notifications for authentication, cold start, warm start, link up or link
down.
Generates a trap for SNMP storm control. You can also set a maximum trap rate per minute. The
range is from 0 to 1000; the default is 0 (no limit is imposed; a trap is sent at every occurrence).
Generates SNMP STP Extended MIB traps.
Generates SNMP syslog traps.
Generates a trap for TCP connections. This trap is enabled by default.
Generates a trap for SNMP VLAN membership changes.
Generates SNMP VLAN created traps.
Generates SNMP VLAN deleted traps.
Generates a trap for VLAN Trunking Protocol (VTP) changes.
532.
533
