TMC 3

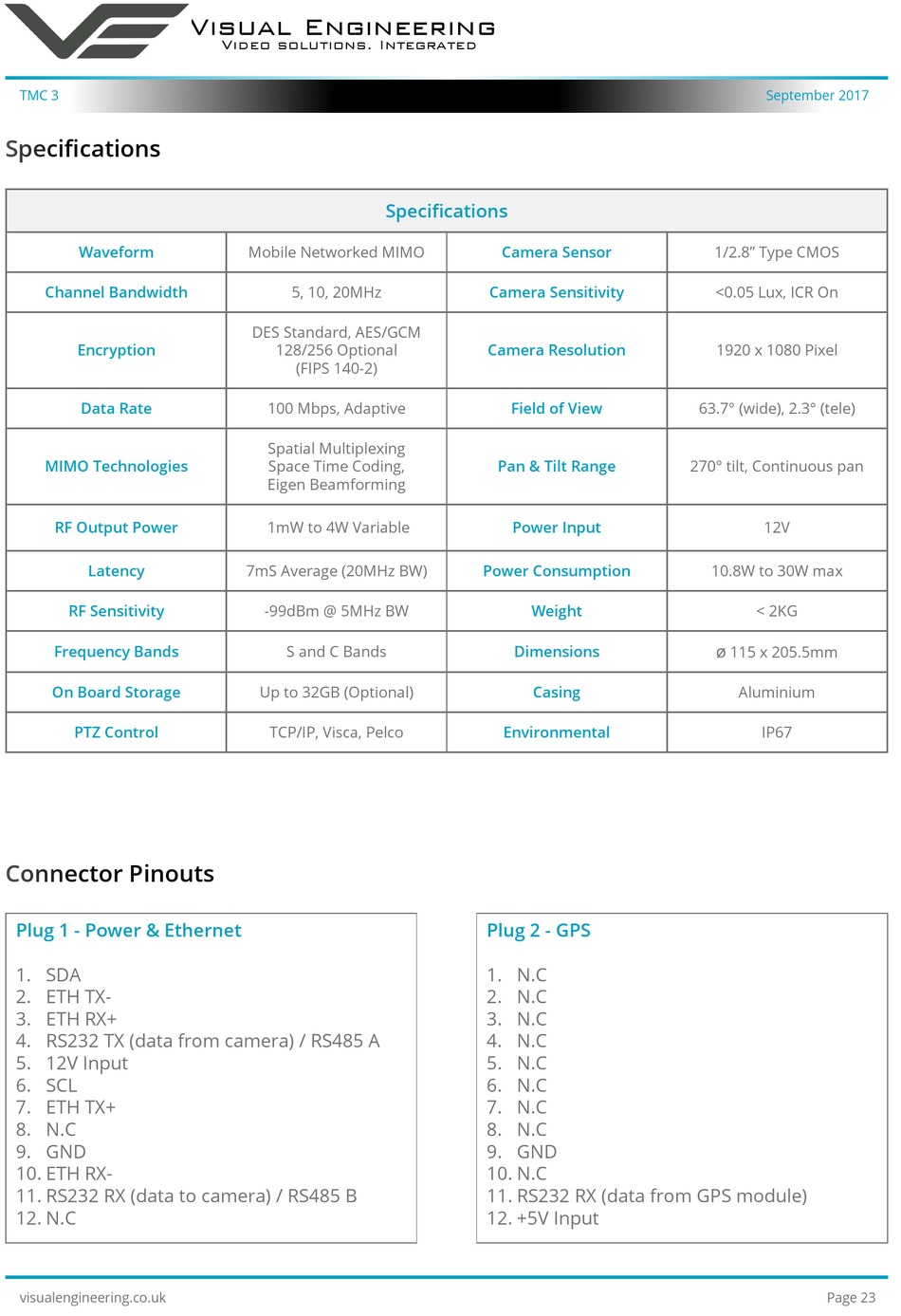

Specifications

Waveform
Channel Bandwidth
Encryption
Data Rate
MIMO Technologies
RF Output Power
Latency
RF Sensitivity
Frequency Bands
On Board Storage
PTZ Control

Connector Pinouts

Plug 1 - Power & Ethernet
1. SDA
2. ETH TX-
3. ETH RX+
4. RS232 TX (data from camera) / RS485 A
5. 12V Input
6. SCL
7. ETH TX+
8. N.C
9. GND
10. ETH RX-
11. RS232 RX (data to camera) / RS485 B
12. N.C
visualengineering.co.uk
Visual Engineering
Video solutions. Integrated
Mobile Networked MIMO
5, 10, 20MHz
DES Standard, AES/GCM
128/256 Optional
(FIPS 140-2)
100 Mbps, Adaptive
Spatial Multiplexing
Space Time Coding,
Eigen Beamforming
1mW to 4W Variable
7mS Average (20MHz BW)
-99dBm @ 5MHz BW
S and C Bands
Up to 32GB (Optional)
TCP/IP, Visca, Pelco
Specifications
Camera Sensor
Camera Sensitivity
Camera Resolution
Field of View
Pan & Tilt Range
Power Input
Power Consumption
Weight
Dimensions
Casing
Environmental
Plug 2 - GPS
1. N.C
2. N.C
3. N.C
4. N.C
5. N.C
6. N.C
7. N.C
8. N.C
9. GND
10. N.C
11. RS232 RX (data from GPS module)
12. +5V Input
September 2017
1/2.8" Type CMOS
<0.05 Lux, ICR On
1920 x 1080 Pixel
63.7° (wide), 2.3° (tele)
270° tilt, Continuous pan
12V
10.8W to 30W max
< 2KG
ø
115 x 205.5mm
Aluminium
IP67
