TMC 3

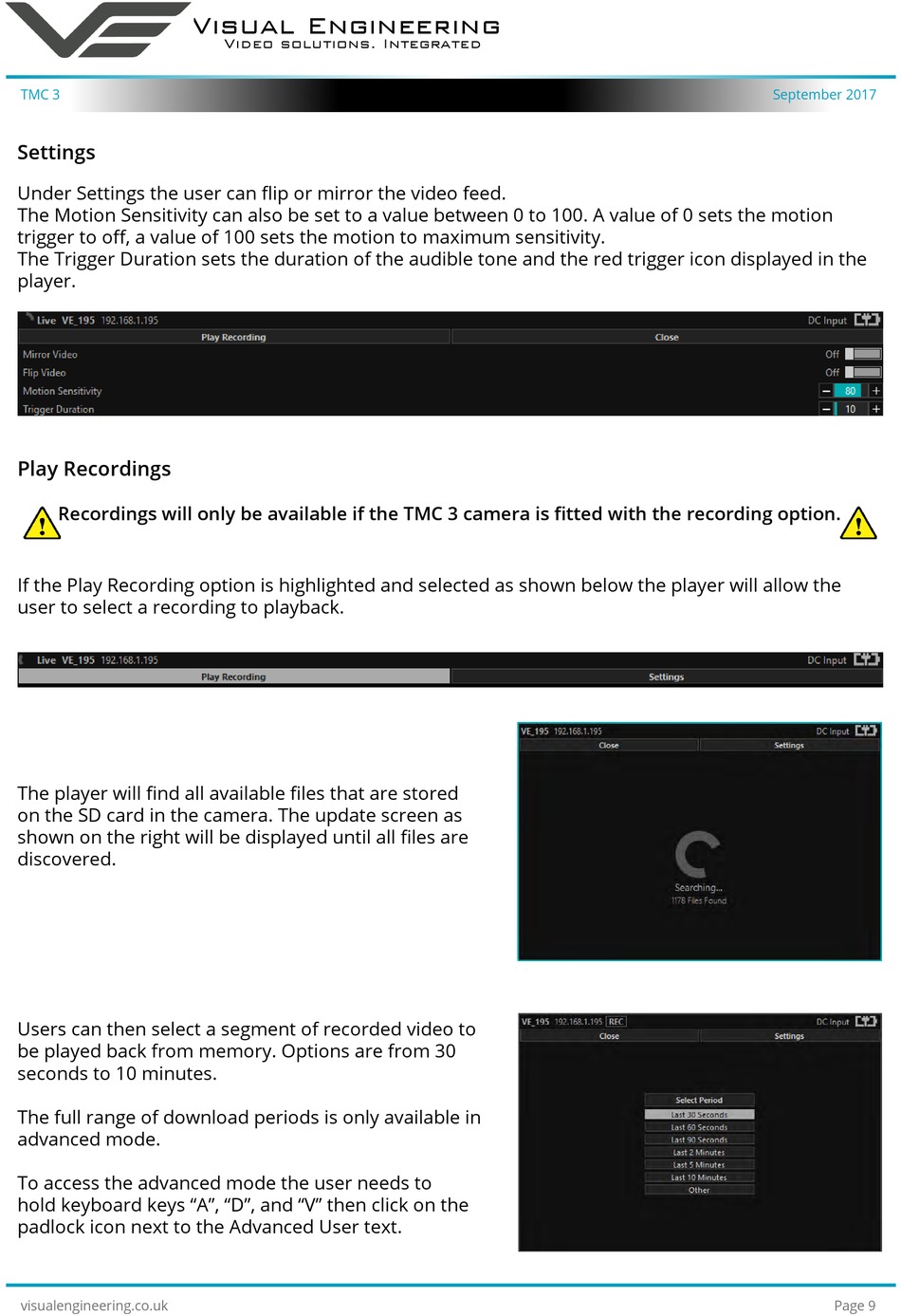

Settings

Under Settings the user can flip or mirror the video feed.
The Motion Sensitivity can also be set to a value between 0 to 100. A value of 0 sets the motion
trigger to off, a value of 100 sets the motion to maximum sensitivity.
The Trigger Duration sets the duration of the audible tone and the red trigger icon displayed in the
player.

Play Recordings

Recordings will only be available if the TMC 3 camera is fitted with the recording option.
If the Play Recording option is highlighted and selected as shown below the player will allow the
user to select a recording to playback.
The player will find all available files that are stored
on the SD card in the camera. The update screen as
shown on the right will be displayed until all files are
discovered.
Users can then select a segment of recorded video to
be played back from memory. Options are from 30
seconds to 10 minutes.
The full range of download periods is only available in
advanced mode.
To access the advanced mode the user needs to
hold keyboard keys "A", "D", and "V" then click on the
padlock icon next to the Advanced User text.
