Because the 8 10/100/1000Base-T ports of S5612 support the MDI/MDIX
self-identification of the cable, S5612 can adopt five types of direct-through/cross
network cables when it connects other Ethernet terminals.

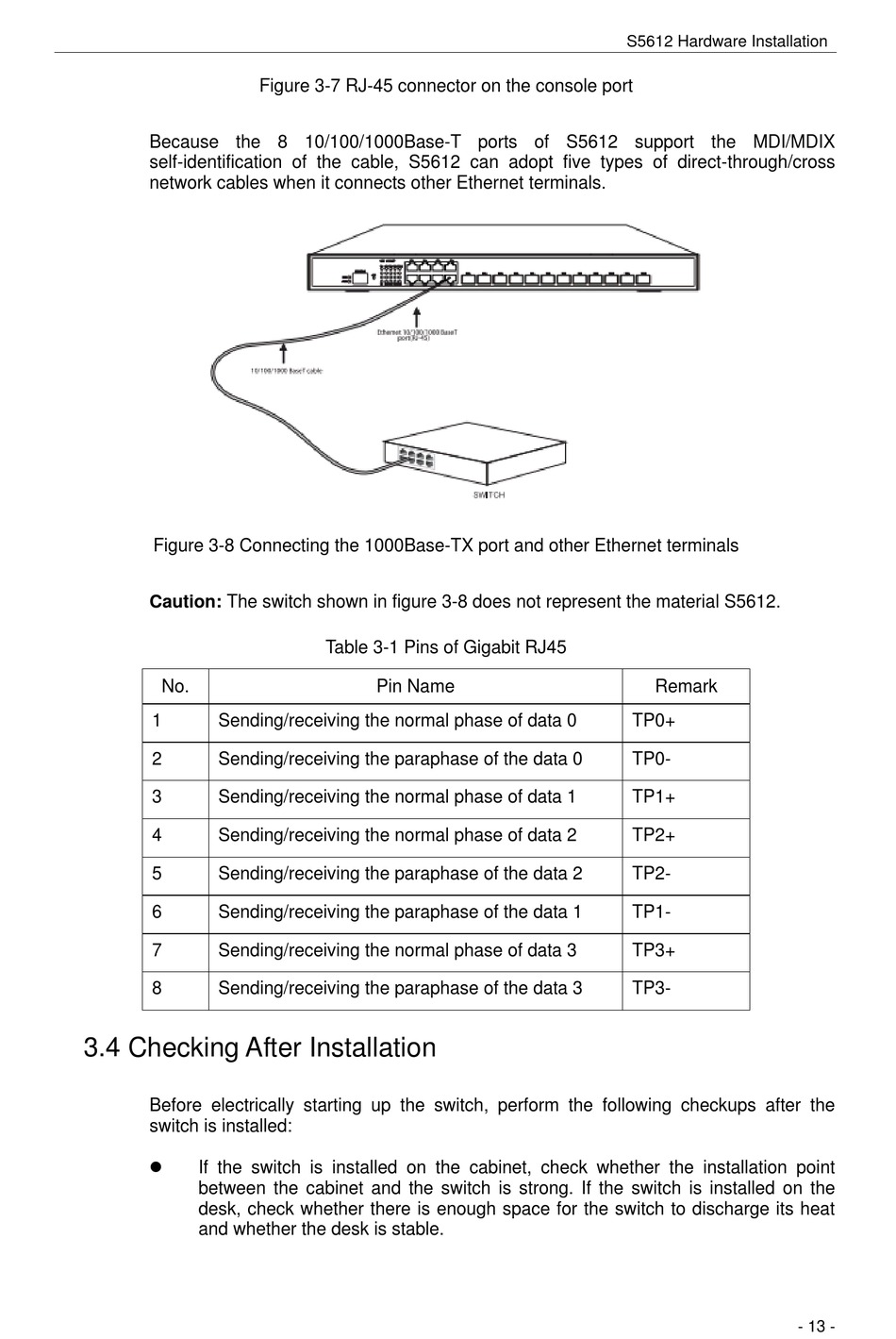

Figure 3-8 Connecting the 1000Base-TX port and other Ethernet terminals
Caution: The switch shown in figure 3-8 does not represent the material S5612.
No.
1 Sending/receiving the normal phase of data 0
2 Sending/receiving the paraphase of the data 0
3 Sending/receiving the normal phase of data 1
4 Sending/receiving the normal phase of data 2
5 Sending/receiving the paraphase of the data 2
6 Sending/receiving the paraphase of the data 1
7 Sending/receiving the normal phase of data 3
8 Sending/receiving the paraphase of the data 3

3.4 Checking After Installation

Before electrically starting up the switch, perform the following checkups after the
switch is installed:

If the switch is installed on the cabinet, check whether the installation point
between the cabinet and the switch is strong. If the switch is installed on the
desk, check whether there is enough space for the switch to discharge its heat
and whether the desk is stable.
Figure 3-7 RJ-45 connector on the console port
Table 3-1 Pins of Gigabit RJ45
Pin Name
S5612 Hardware Installation
Remark
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
