Electrical Requirements - Maytag MDE17CS Service Manual

New dependable care commercial single and stack gas and electric dryers 50 hertz models
Hide thumbs

Advertisement

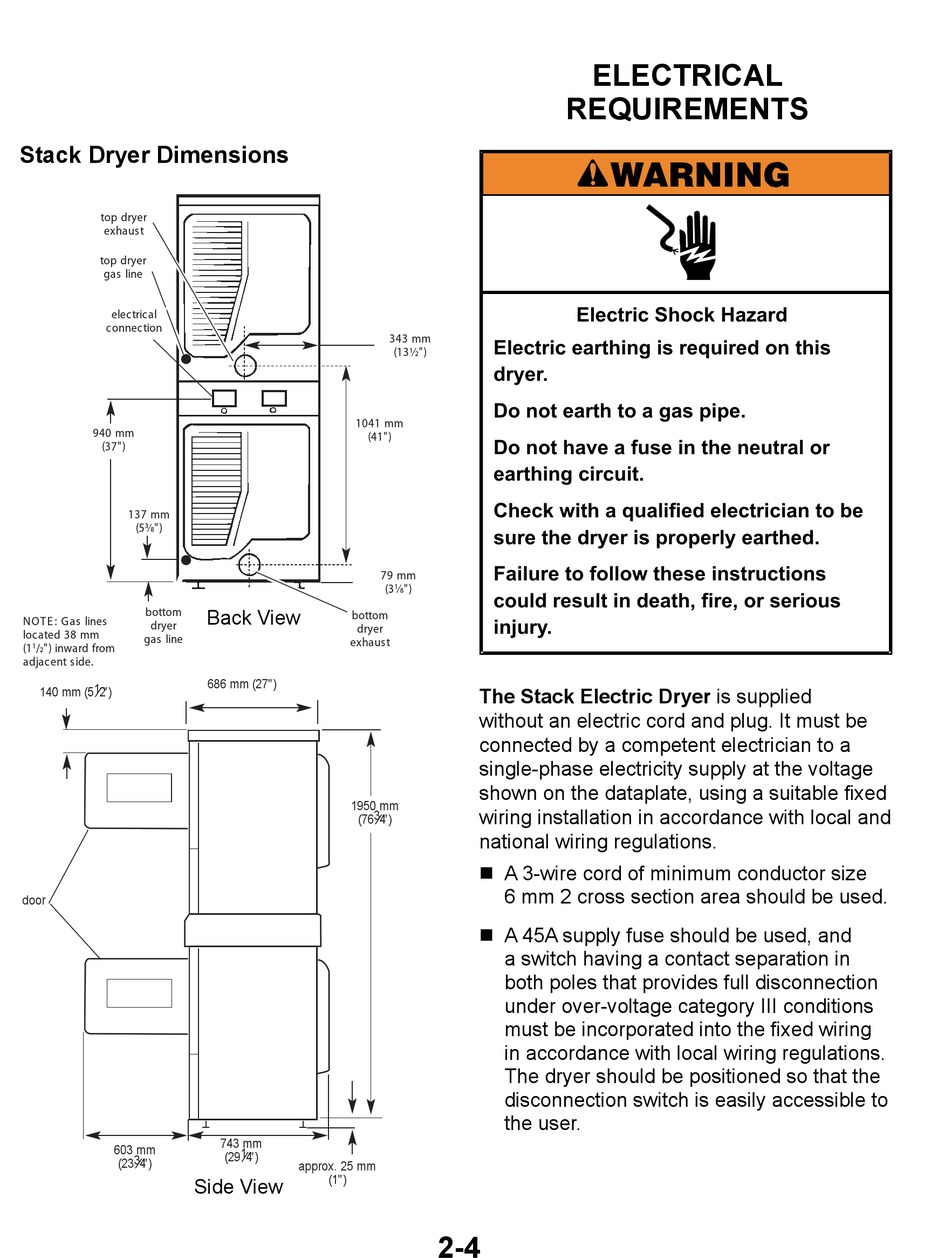

Stack Dryer Dimensions
top dryer
exhaust
top dryer
gas line
electrical
connection
940 mm
(37")
137 mm
(5
")
3
8
bottom
NOT E : G as lines
dryer
located 38 mm
gas line
(1
/
") inward from
1
2
adjacent side.
140 mm (5 1 ⁄2 ")
door
603 mm
(23 3 ⁄4 ")
Side View
1041 mm
(41")
79 mm
(3
Back View
bottom
dryer
exhaust
686 mm (27")
1950 mm
(76 3 ⁄4 ")
743 mm
(29 1 ⁄4 ")
approx. 25 mm
(1")
rEQuirEMENTS
343 mm
Electric earthing is required on this
(13
")
1
2
dryer.
Do not earth to a gas pipe.
Do not have a fuse in the neutral or
earthing circuit.
Check with a qualified electrician to be
sure the dryer is properly earthed.
Failure to follow these instructions
")
1
8
could result in death, fire, or serious
injury.
The Stack Electric Dryer is supplied
without an electric cord and plug. It must be
connected by a competent electrician to a
single-phase electricity supply at the voltage
shown on the dataplate, using a suitable fixed
wiring installation in accordance with local and
national wiring regulations.
n
A 3-wire cord of minimum conductor size
6 mm 2 cross section area should be used.
n
A 45A supply fuse should be used, and
a switch having a contact separation in
both poles that provides full disconnection
under over-voltage category III conditions
must be incorporated into the fixed wiring
in accordance with local wiring regulations.
The dryer should be positioned so that the
disconnection switch is easily accessible to
the user.
2-4
ElECTriCal
Electric Shock Hazard
