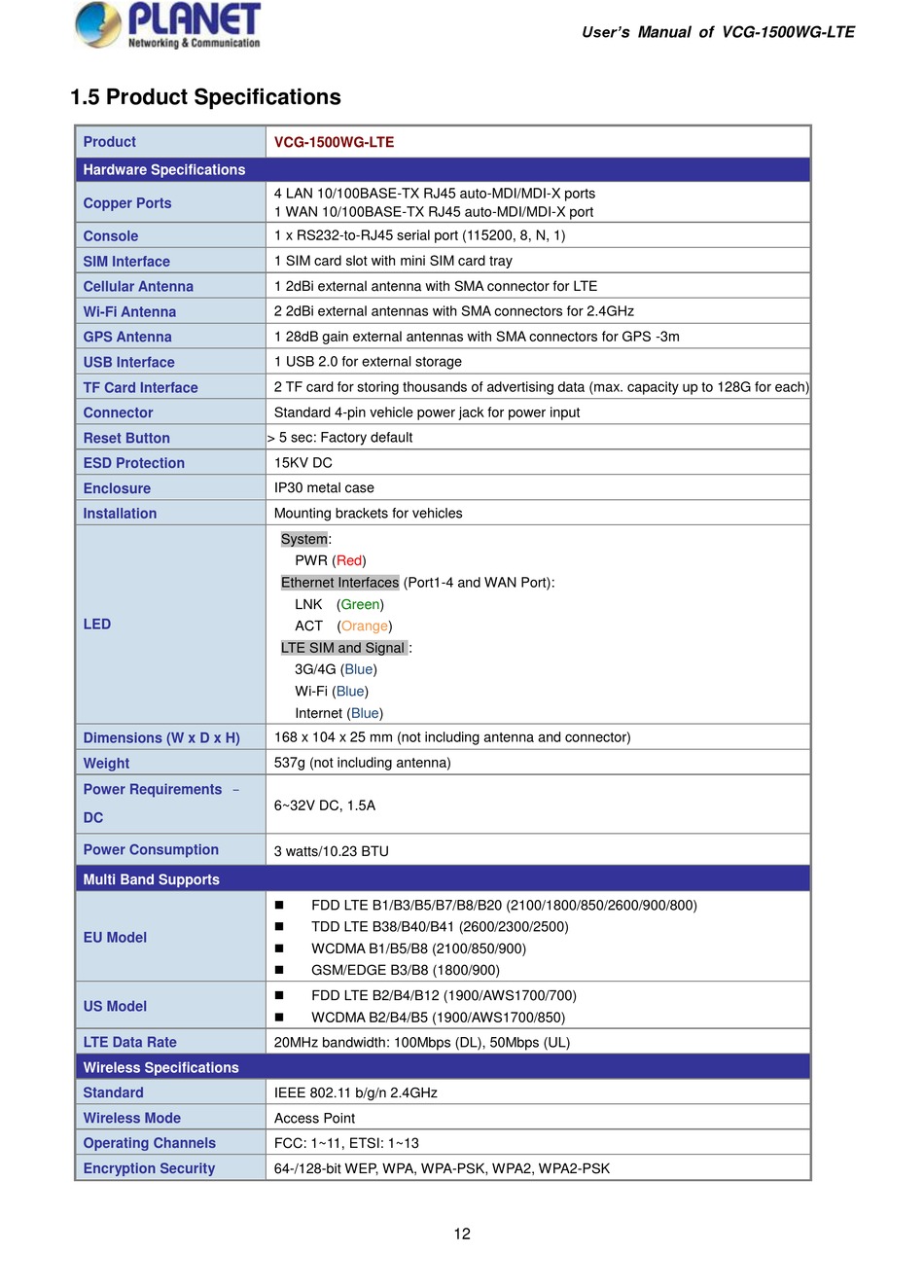

1.5 Product Specifications
Product
Hardware Specifications
Copper Ports
Console
SIM Interface
Cellular Antenna
Wi-Fi Antenna
GPS Antenna
USB Interface
TF Card Interface
Connector
Reset Button
ESD Protection
Enclosure
Installation
LED
Dimensions (W x D x H)
Weight
Power Requirements –
DC
Power Consumption
Multi Band Supports
EU Model
US Model
LTE Data Rate
Wireless Specifications
Standard
Wireless Mode
Operating Channels
Encryption Security
VCG-1500WG-LTE
4 LAN 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
1 WAN 10/100BASE-TX RJ45 auto-MDI/MDI-X port
1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
1 SIM card slot with mini SIM card tray
1 2dBi external antenna with SMA connector for LTE
2 2dBi external antennas with SMA connectors for 2.4GHz
1 28dB gain external antennas with SMA connectors for GPS -3m
1 USB 2.0 for external storage
2 TF card for storing thousands of advertising data (max. capacity up to 128G for each)
Standard 4-pin vehicle power jack for power input
> 5 sec: Factory default
15KV DC
IP30 metal case
Mounting brackets for vehicles
System:
PWR (Red)
Ethernet Interfaces (Port1-4 and WAN Port):
LNK (Green)
ACT (Orange)
LTE SIM and Signal :
3G/4G (Blue)
Wi-Fi (Blue)
Internet (Blue)
168 x 104 x 25 mm (not including antenna and connector)
537g (not including antenna)
6~32V DC, 1.5A
3 watts/10.23 BTU
FDD LTE B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800)
TDD LTE B38/B40/B41 (2600/2300/2500)
WCDMA B1/B5/B8 (2100/850/900)
GSM/EDGE B3/B8 (1800/900)
FDD LTE B2/B4/B12 (1900/AWS1700/700)
WCDMA B2/B4/B5 (1900/AWS1700/850)
20MHz bandwidth: 100Mbps (DL), 50Mbps (UL)
IEEE 802.11 b/g/n 2.4GHz
Access Point
FCC: 1~11, ETSI: 1~13
64-/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
User's Manual of VCG-1500WG-LTE
12
