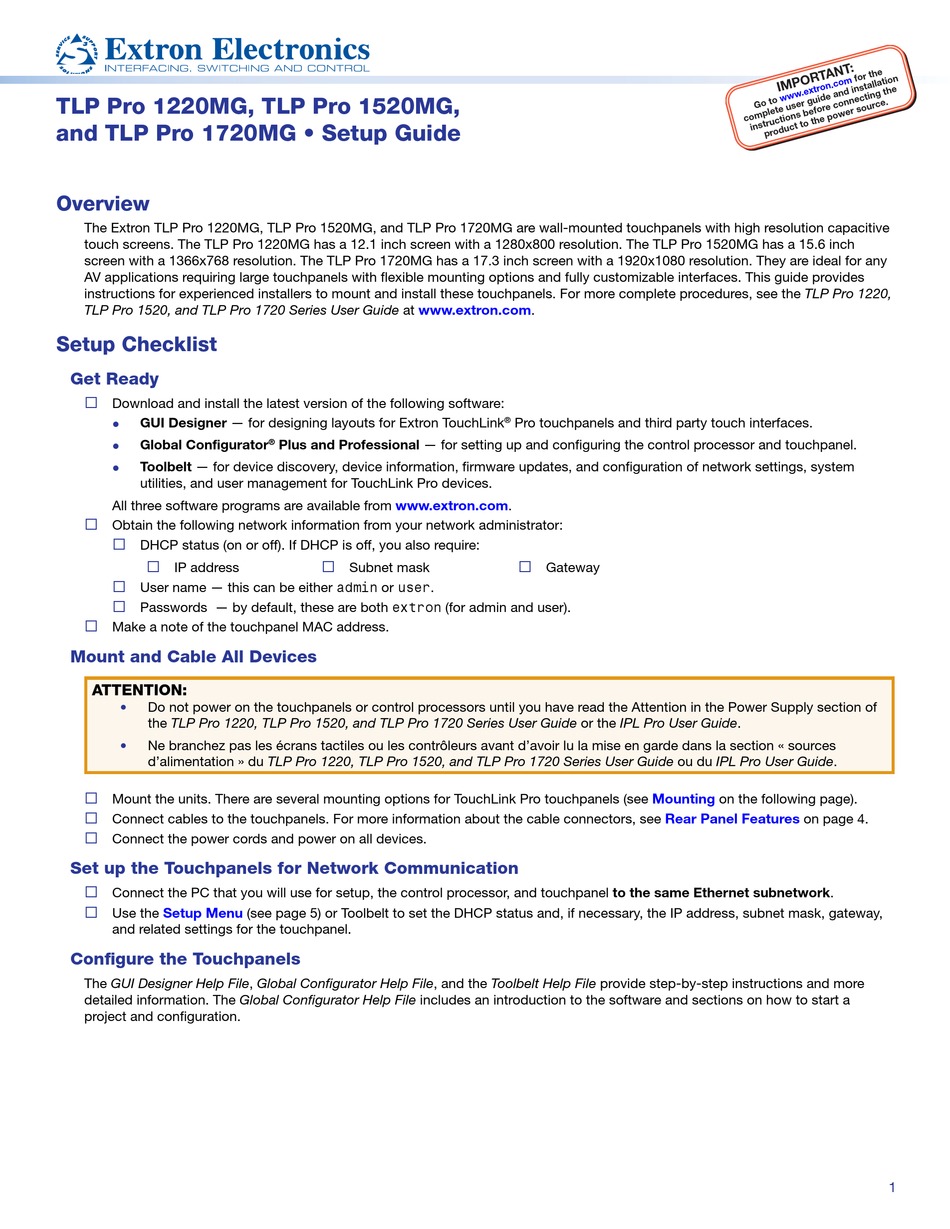

TLP Pro 1220MG, TLP Pro 1520MG,
and TLP Pro 1720MG • Setup Guide
Overview

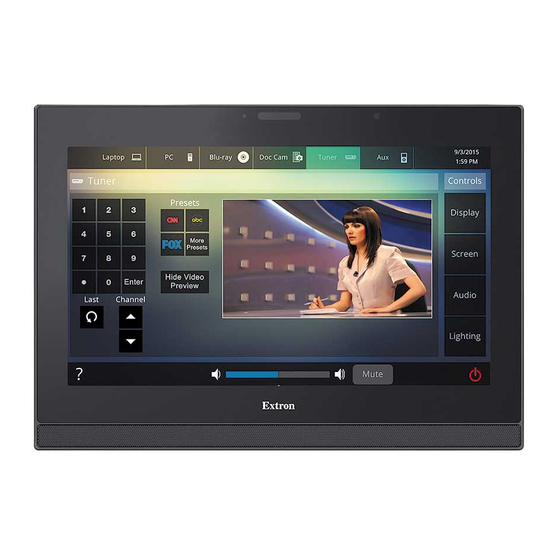

The Extron TLP Pro 1220MG, TLP Pro 1520MG, and TLP Pro 1720MG are wall-mounted touchpanels with high resolution capacitive
touch screens. The TLP Pro 1220MG has a 12.1 inch screen with a 1280x800 resolution. The TLP Pro 1520MG has a 15.6 inch
screen with a 1366x768 resolution. The TLP Pro 1720MG has a 17.3 inch screen with a 1920x1080 resolution. They are ideal for any
AV applications requiring large touchpanels with flexible mounting options and fully customizable interfaces. This guide provides
instructions for experienced installers to mount and install these touchpanels. For more complete procedures, see the TLP Pro 1220,
TLP Pro 1520, and TLP Pro 1720 Series User Guide at
Setup Checklist
Get Ready
… Download and install the latest version of the following software:
GUI Designer — for designing layouts for Extron TouchLink
z
Global Configurator
z
Toolbelt — for device discovery, device information, firmware updates, and configuration of network settings, system
z
utilities, and user management for TouchLink Pro devices.
All three software programs are available from
… Obtain the following network information from your network administrator:
… DHCP status (on or off). If DHCP is off, you also require:
… IP address
… User name — this can be either admin or user.
… Passwords — by default, these are both extron (for admin and user).
…
Make a note of the touchpanel MAC address.
Mount and Cable All Devices
ATTENTION:
•
Do not power on the touchpanels or control processors until you have read the Attention in the Power Supply section of
the TLP Pro 1220, TLP Pro 1520, and TLP Pro 1720 Series User Guide or the IPL Pro User Guide.
• Ne branchez pas les écrans tactiles ou les contrôleurs avant d'avoir lu la mise en garde dans la section « sources
d'alimentation » du TLP Pro 1220, TLP Pro 1520, and TLP Pro 1720 Series User Guide ou du IPL Pro User Guide.
… Mount the units. There are several mounting options for TouchLink Pro touchpanels (see
…
Connect cables to the touchpanels. For more information about the cable connectors, see
… Connect the power cords and power on all devices.
Set up the Touchpanels for Network Communication
… Connect the PC that you will use for setup, the control processor, and touchpanel to the same Ethernet subnetwork.
Setup Menu
… Use the
and related settings for the touchpanel.
Configure the Touchpanels
The GUI Designer Help File, Global Configurator Help File, and the Toolbelt Help File provide step-by-step instructions and more
detailed information. The Global Configurator Help File includes an introduction to the software and sections on how to start a
project and configuration.
www.extron.com
Plus and Professional — for setting up and configuring the control processor and touchpanel.
®
www.extron.com
… Subnet mask
(see page 5) or Toolbelt to set the DHCP status and, if necessary, the IP address, subnet mask, gateway,
.
Pro touchpanels and third party touch interfaces.
®
.
… Gateway
Mounting
Rear Panel Features
on the following page).
on page 4.
1
