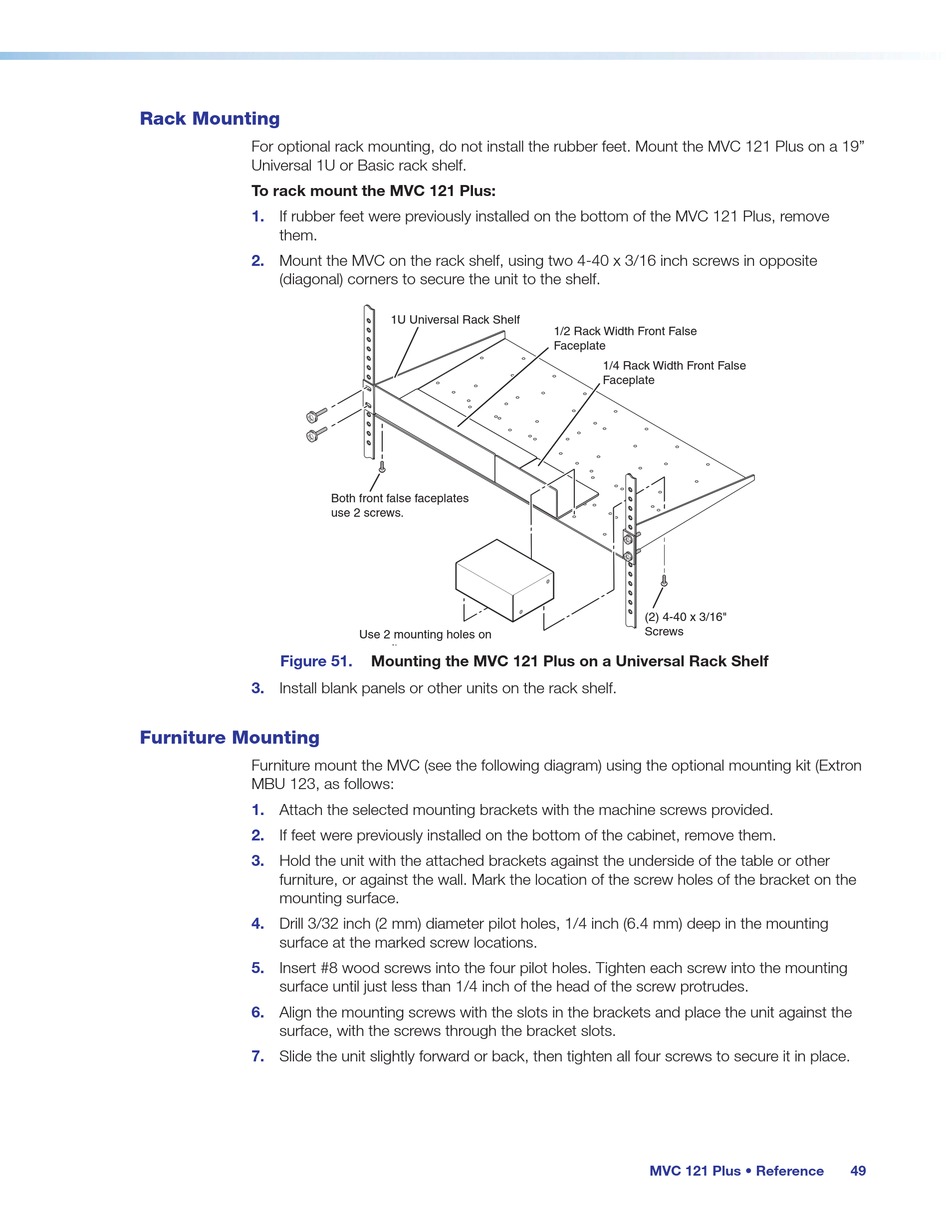

Rack Mounting
For optional rack mounting, do not install the rubber feet. Mount the MVC 121 Plus on a 19"
Universal 1U or Basic rack shelf.
To rack mount the MVC 121 Plus:
1.
If rubber feet were previously installed on the bottom of the MVC 121 Plus, remove
them.
2.
Mount the MVC on the rack shelf, using two 4-40 x 3/16 inch screws in opposite
(diagonal) corners to secure the unit to the shelf.
Figure 51.
3.
Install blank panels or other units on the rack shelf.
Furniture Mounting
Furniture mount the MVC (see the following diagram) using the optional mounting kit (Extron
MBU 123, as follows:
1.
Attach the selected mounting brackets with the machine screws provided.
2.
If feet were previously installed on the bottom of the cabinet, remove them.
3.
Hold the unit with the attached brackets against the underside of the table or other
furniture, or against the wall. Mark the location of the screw holes of the bracket on the
mounting surface.
4.
Drill 3/32 inch (2 mm) diameter pilot holes, 1/4 inch (6.4 mm) deep in the mounting
surface at the marked screw locations.
5.
Insert #8 wood screws into the four pilot holes. Tighten each screw into the mounting
surface until just less than 1/4 inch of the head of the screw protrudes.
6.
Align the mounting screws with the slots in the brackets and place the unit against the
surface, with the screws through the bracket slots.
7.
Slide the unit slightly forward or back, then tighten all four screws to secure it in place.
QuarterRackStandardShelf
1U Universal Rack Shelf
Both front false faceplates
use 2 screws.
Use 2 mounting holes on
opposite corners.
Mounting the MVC 121 Plus on a Universal Rack Shelf
1/2 Rack Width Front False
Faceplate
1/4 Rack Width Front False
Faceplate
(2) 4-40 x 3/16"
Screws
MVC 121 Plus • Reference
49
