Mic/Line Input Signal Chain

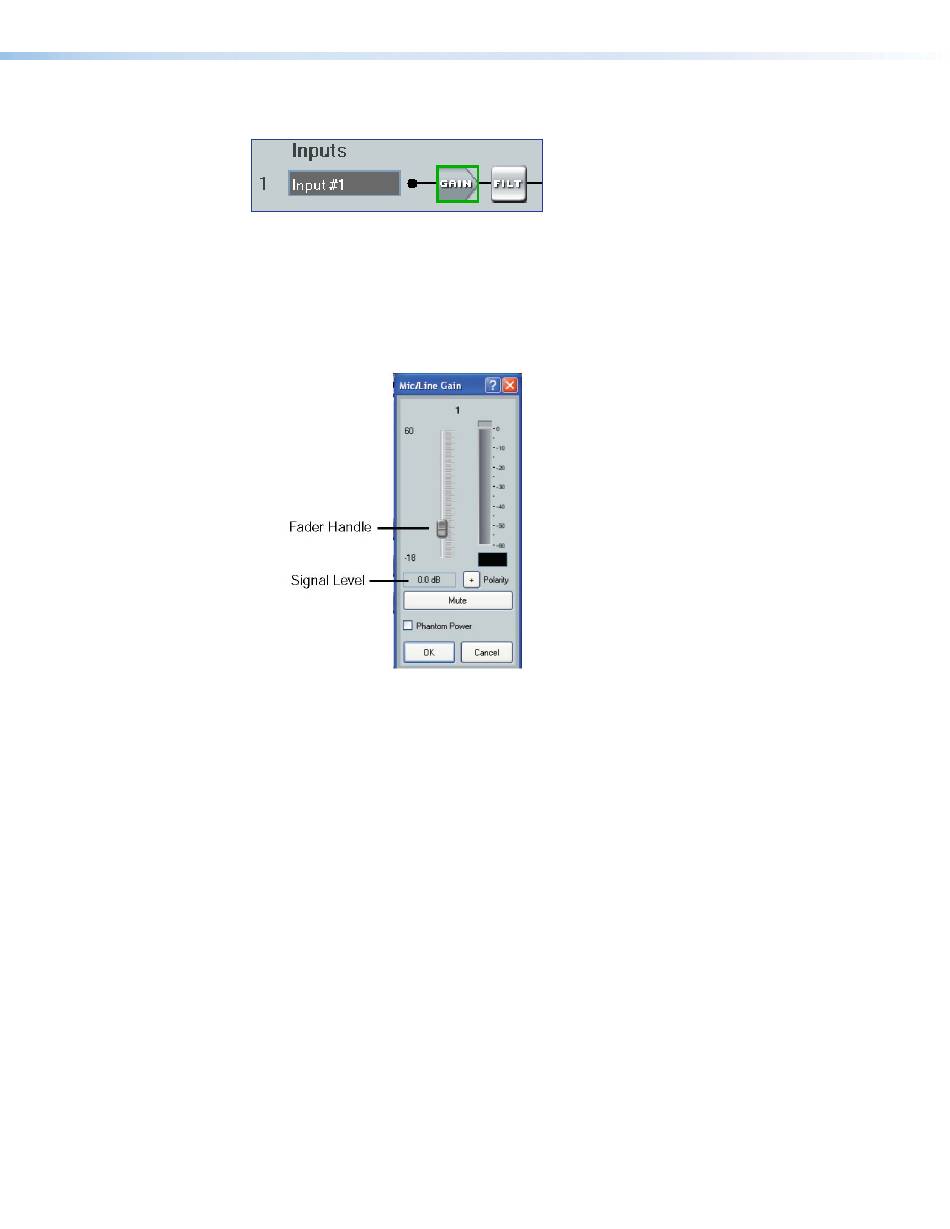

Figure 19.
Input signal chain GUI elements from left to right are as follows:
Mic/line inputs 1 and 2
•
•
Input Signal Chain
Gain (GAIN) — Mono gain control with a range from -18 to +60 dB includes a mute
button. Step resolution is 0.1 dB. A polarity switch (+ or -) is provided. Gain control is
provided pre-meter and mute control is provided pre-meter.
Figure 20. Fader Handle
Clicking the fader handle or clicking within the fader area brings focus to the fader. The
input signal level can be adjusted using any of the following methods:
Direct adjustment. Click and hold the fader handle, then drag it to the desired level
•
in 0.1 dB steps.
Click or tab to the fader handle, then <up arrow> or <down arrow> to the desired
•
level in 1 dB steps. Page Up and Page Down increases or decreases level in 10 dB
steps.
Click in or tab to the signal level readout field. Type a new value, then press <Enter>
•
or <Tab> to another area.
Filter (FILT) – Up to five filters per input can be inserted in any combination of High
Pass, Low Pass, Bass & Treble shelving (tone), or Parametric Equalizer.
MVC 121 Plus • Operation 16
