Filter
MIc/line inputs 1 and 2 allow a total of five filters per input. Line input 3 allows up to three
filters.

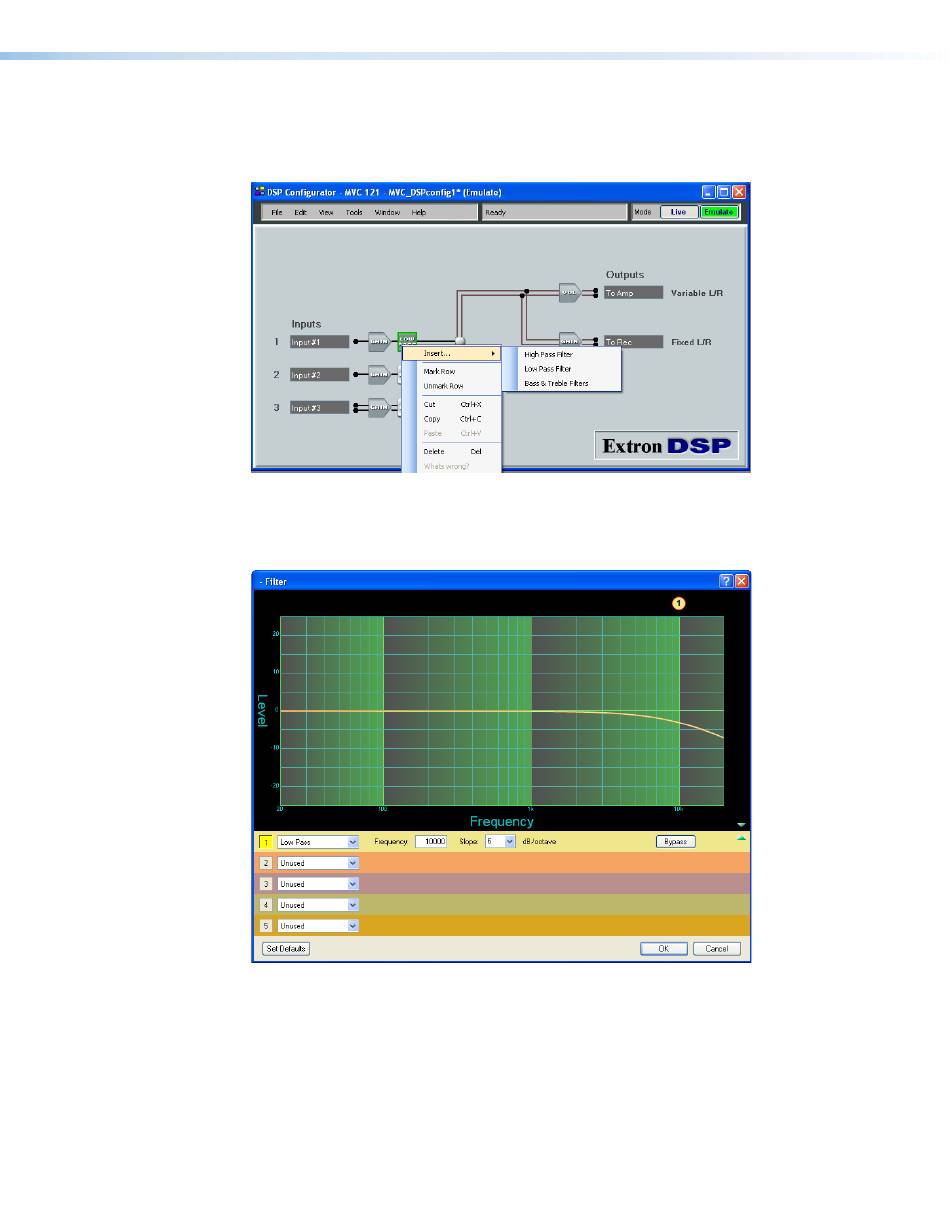

Figure 22.
The first filter is inserted from a processor list that appears when the block is double-clicked
or via a context window/processor list when the block is right-clicked. After the processor is
inserted, a double-click opens the setup dialog box.
Figure 23.
Additional filters are inserted by opening the filter block dialog box, then selecting a filter
type from the drop-down filter selection list. All filter parameters are modified via the Filter
block dialog box. Each filter loads with all applicable default parameters displayed to the
right of each drop-down filter selection list.
Filter Inputs
Filter Block Dialog Box
MVC 121 Plus • Operation
18
