Filter Processor Block

A filter block can be configured for each MVC input. The following functions are available:

•

Gain (GAIN) — Stereo (left/right) gain control with a range from -18 to +24 dB includes

mute buttons. Step resolution is 0.1 dB. Left and right polarity switches

(+ or -) are provided. Gain control is provided pre-meter and mute control is provided

pre-meter. A Gang switch ties the two input levels together.

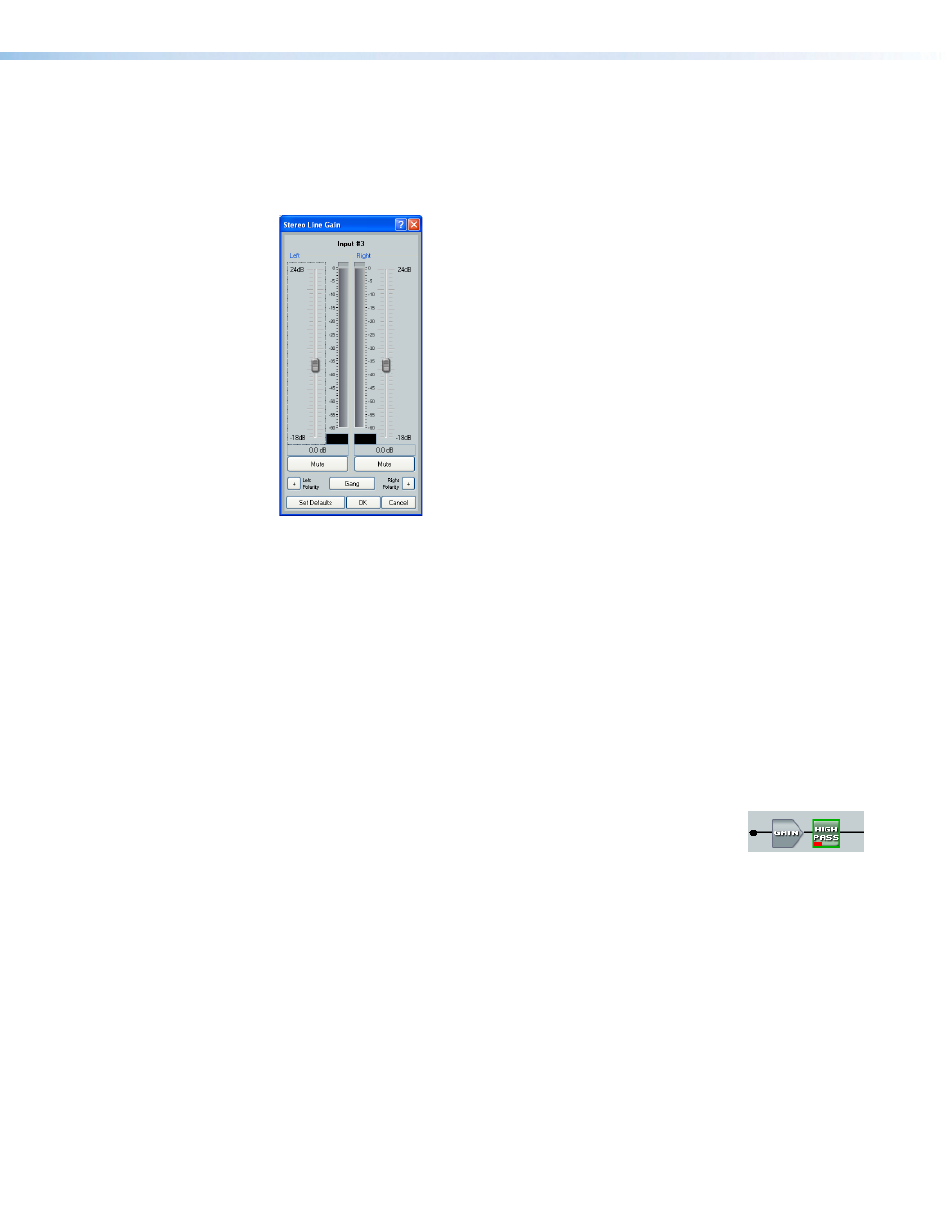

Figure 21.

Stereo Line Gain

Filter (FILT) — Up to three filters can be inserted in any combination of High Pass, Low

Pass, Bass & Treble shelving (tone), or Parametric Equalizer.

Insert — The filter block is inserted and made active by right-clicking on the block

and selecting from the context menu or by double-clicking and entering selections.

Remove a filter — An active filter can be removed by right-clicking on the

block and selecting Delete or by selecting the block and pressing <delete> on the

keyboard. This sets the parameters back to default and bypasses the block.

Bypass — When bypass is active, signal flow passes through the

filter block without filter processing, regardless of the settings.

When bypass is removed, the signal will be processed according

to the filter settings. A red mark appears in the lower left of the

block (shown on the right) to indicate it has been inserted, but is

currently bypassed.

MVC 121 Plus • Operation
